Mossie

A copy of BBC Focus landed on my doorstep this morning & in it where a few interesting space articles, all blowing the British trumpet.  One about Richard Branson & Virgin Galactic, one about Bridget, a Mars rover & one about Skylon:



Click here for more Skylon images

Skylon is the Brainchild of Alan Bond, one of the head honcho's behind HOTOL at BAe & he's set up the Reaction Engines company to fund & build it.  The spaceplane is a single stage to orbit, with air breathing SABRE rocket engines similar to those planned for HOTOL.  It's design seems promising, but it'll require £7 billion to get it up into space.  Alan Bond is hoping to get some funding off the back of the space tourism rush (hype? I guess only time will tell) & Sir Richards crwoning project.  I'm not holding out a lot of hope as British rocket projects don't have a great track record.

They've also got a Hypersonic plane called LAPCAT on the drawing board, part of a European funded project to design an aircraft capable of flying from Brussells to Sidney in less than 4 hours:


Something very Gerry Anderson-ish about this pic!  Click here fore more LAPCAT images

Maybe this will fly eventually,


but I doubt it.  Shame......




I don't think it's nice, you laughin'. You see, my mule don't like people laughin'. He gets the crazy idea you're laughin' at him. Now if you apologize, like I know you're going to, I might convince him that you really didn't mean it.

Archibald

Love the Skylon! At a time, I was totally fascinated by "reusable lauchers" space planes and the like. I even made a website on the topic (in french...that was the main error! <_< )

http://starmaks.populus.ch/

well I can even describe you how the engine of the Skylon works if you are interested... :)

But the last pic has nothing to do with spaceplanes! It's a CG rendering of the good old Avro 730 mach 2.5 bomber from 1955!!!!!

The Skylon has received no funds from ESA nor the GB governement (I think the LAPCAT was a contender for FLPP program)
The Hotol had financial backing in the mid-80's, the engine was promising, but the aerodynamic configuration was crap...

King Arthur: Can we come up and have a look?
French Soldier: Of course not. You're English types.
King Arthur: What are you then?
French Soldier: I'm French. Why do you think I have this outrageous accent, you silly king?

Well regardless I would rather take my chance out there on the ocean, that to stay here and die on this poo-hole island spending the rest of my life talking to a gosh darn VOLLEYBALL.

Ollie

The Skylon looks like a ship from Naboo or something too...

;)

Mossie

#3
QuoteBut the last pic has nothing to do with spaceplanes! It's a CG rendering of the good old Avro 730 mach 2.5 bomber from 1955!!!!!

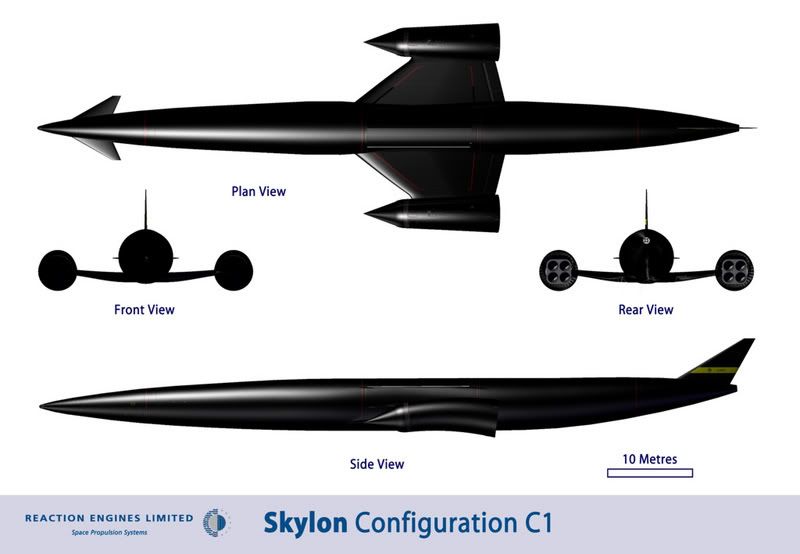

Sorry Archie, that was part of the point I was trying to make, a bit ambiguos I realise now though!  In my sub titltle, I put "Remind you of anything?....."  If you look at the three-view you'll see that the structure of the Skylon is almost identical to the Avro 730!  Even the engine pod configuration is the same.  They've obviously borrowed heavilly from Avro.

Is this because aerodynamic research was so advanced in 1950?  Or is it because Reaction Engines haven't actually done any real research on the structure & so 'borrowed' a tested design?  Probably a bit of both!  Whatever is true, the Skylon would be nearly double the size of the 730, 85m compared to 48.5m & Avro's aeroplane was a big old bird!

I think I've got the gist of how the engine works from the article, although if I started explaining I'd probably just confuse people again, so you'd probably be best off telling us Archie!

EDIT - OOPS! Hit the 'submit post' rather than the 'preview' button by accident!

I don't think it's nice, you laughin'. You see, my mule don't like people laughin'. He gets the crazy idea you're laughin' at him. Now if you apologize, like I know you're going to, I might convince him that you really didn't mean it.

Jschmus

That LAPCAT thing looks an awful lot like the Myasishchev M-50 "Bounder".
"Life isn't divided into genres. It's a horrifying, romantic, tragic, comical, science-fiction cowboy detective novel. You know, with a bit of pornography if you're lucky."-Alan Moore

Archibald

I'm sorry! You're right, they are similar, but its only a coincidence. High-speed delta canards aircrafts tends to be similar, and there was really a mass of projects like this over the years (M-50 is a good example)

I try to explain ? here we go!

To go on space, you need a rocket engine, with liquid oxygen stored in huges and heavy tanks. Before reaching space, you have obviously to cross the Atmospher, full of oxygen. Main problem : this oxygen is gazeous, whereas the rocket engine need lquid oxygen.
First idea (in the Aerospaceplane of 1965 and HOTOL of 1985) was to liquefy the air. To obtain liquefied air, you need to cool it. so you need a source of cold... the idea was to use the hydrogen fuel, which is stored at -270°C. This is a bad solution for three reasons
- you use fuel to cool the air, augmenting the fuel consuption of the rocket engine
- you can't reuse the fuel, because the hydrogen is no longer liquid (too hot!)
- the liquified air tend to freeze the cooling system itself!

So the SABRE engine of the Skylon was modified.

Instead of using the Hydrogen fuel directly (to cool the air) they use what they call an Helium loop. This Helium take the hot temperature of the air.
The air is not liquefied, it is a very cold gas (at the extreme limit between gaseous and liquid...)
As it is not liquefied, it can't freeze the cooling system, and you can even use a fan (something like a turbofan engine, which is very practical take off)
When the helium is too hot, it is put in contact with some cold hydrogen. this cold hydrogen became hot, so what to do with it ? simple! Use an expander rocket... This rocket engine is able to burn hot, gazeous hydrogen and it is in current use in rockets.

hope it is clear enough... you're perfectly right Mossie it's hard not too confuse people...
