Hotol, Dyna Soar, X-15 and X-33...

Started by Archibald, November 27, 2006, 02:31:39 AM

Previous topic - Next topic

Archibald

Here's some space planes models build along the years.

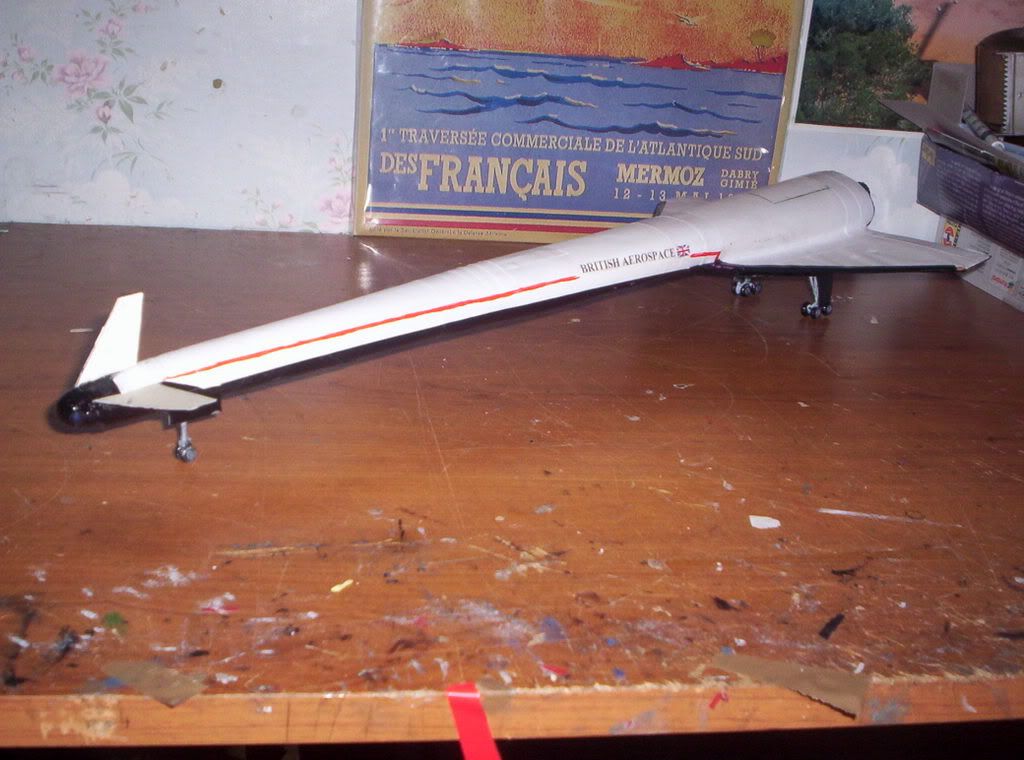

HOTOL
Well-known british spaceplane of the 80's (it was to use air liquefaction to fuel a cryogenic rocket engine... no LOX tanks, which mean a much lighter spacecraft).

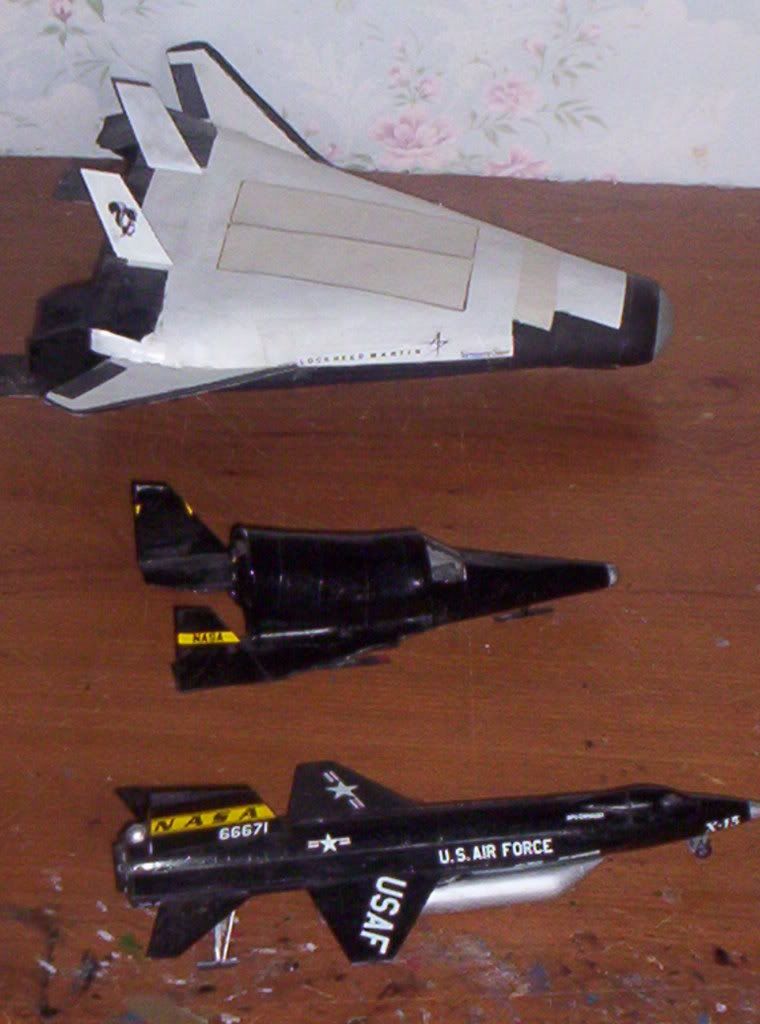

Americans X-planes
X-15
X-20 Dyna soar (launched by a conventional rocket)

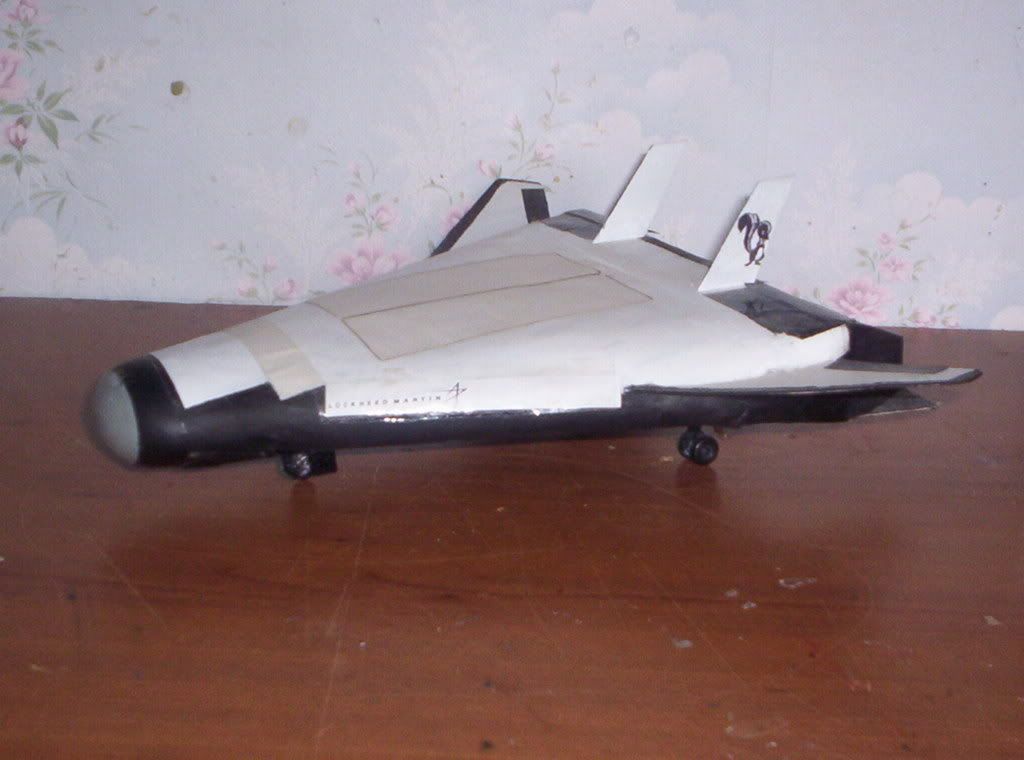

X-33 (ultra light composite  tanks, low-consumption Aerospike rocket motor mean  single stage to orbit... but the tanks failed, and the project sunk).


X-33


a part from Hotol and its fellows, I also have a 1/144 space shuttle (it was the Columbia  :( ) (given by my uncle which introduced me to modelism when I was kid.

I found another 1/144 shutttle in the stash, to be changed into an "ESS" or Evolved Space Shuttle.
This mean no damned SRBs, a recoverable flyback booster which allow the SSME to be light only 2 minutes after take off (not AT take off).
Not using the SSME for take off mean relying on the flyback booster of course, but also that you have a much smaller external tank (I red once that the Shuttle burned HALF OF IT FUEL just to reach... mach 1.5 after take off :blink: ).

I plan to built a standard orbiter, then the external tank. After that, I'll cut a big section of the tank and glue the orbiter on it.
After that, I'll build a flyback booster (using bits of the external tanks and SRBs). this would be fixed behind the external tank.
a much different space Shuttle, less dangerous and much more efficient.
Well this is a long haul project :) but I've the Revell shuttle to do it, so maybe one day...
