Trident II and SO-4060 Cyclone

Started by Archibald, December 13, 2006, 06:03:39 AM

Previous topic - Next topic

Archibald

Hmm I'll atempt tomorrow it seems to be a very, very long process and it's already 11 o'clock in the evening here...  -_-
King Arthur: Can we come up and have a look?
French Soldier: Of course not. You're English types.
King Arthur: What are you then?
French Soldier: I'm French. Why do you think I have this outrageous accent, you silly king?

Well regardless I would rather take my chance out there on the ocean, that to stay here and die on this poo-hole island spending the rest of my life talking to a gosh darn VOLLEYBALL.

NARSES2

Really interesting models and plans there Archie - thanks
Do not condemn the judgement of another because it differs from your own. You may both be wrong.

Archibald

Hmmm we know that Breguet worked with GB on the Br.121 / Jag program. Whatif some of the projects mentionned here also had become cooperative programs in the same way ?
Just for the fun...

Br.1110 Apterion is quite similar to the Harrier...alternate scenario could be that after the failure of the Mirage IIIV, Breguet licence-build the jump Jet (as MDD did in the USA... french upgrade for the Harrier with Mirage stuff)

The 1120 could have been the standard fighter for both the RN and Aeronavale (replacing Sea Vixens and French sea venoms... no crusaders, no phantoms)

Br.1180 was quite similar to the TSR-2  :rolleyes:

Br.1200 (and its VG siblings, the 1220 series) could have been interesting as a 2nd generation naval fighters in the mid-60's.

And the 1260 trainer could have been the basis of a tri-service trainer (merging Hawk and Alpha Jet)

IMHO of course!!!
King Arthur: Can we come up and have a look?
French Soldier: Of course not. You're English types.
King Arthur: What are you then?
French Soldier: I'm French. Why do you think I have this outrageous accent, you silly king?

Well regardless I would rather take my chance out there on the ocean, that to stay here and die on this poo-hole island spending the rest of my life talking to a gosh darn VOLLEYBALL.

TsrJoe

#18
hiyas, dyu have a drawing of the 'Tsr like' Br.1180? if it was a tactical bomber type id love to see it? cheers, Joe


ps...just thinking wasnt the 1180 the Atlantique???
... 'i reject your reality and substitute my own !'

IPMS.UK. 'Project Cancelled' Special Interest Group Co-co'ordinator (see also our Project Cancelled FB.group page)
IPMS.UK. 'TSR-2 SIG.' IPMS.UK. 'What-if SIG.' (TSR.2 Research Group, Finnoscandia & WW.2.5 FB. groups)

Archibald

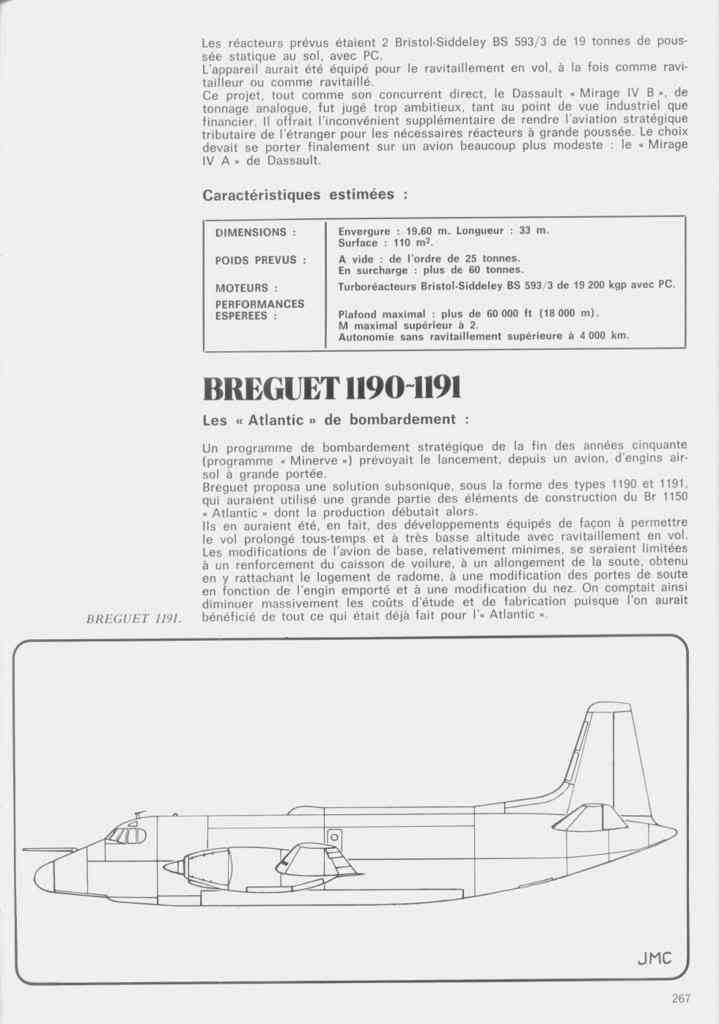

Breguet Atlantique was the Br.1150... but you're not so far from the truth... there had been a nuclear bomber variant of the Atlantic which was numbered... Br.1190! (pic is included in the pages showed here)

I guess its the mention of the name "TSR-2" that is behind your request  ;)

Here's the two pages of the book dedicated to the project...



In fact the link to the TSR-2 is weak, but exist!
We know that the Jaguar was nicknamed "the baby TSR-2"

This project (Br.1180) is close from the Br.1210 ( Aka Br.121, ancestor of the Jaguar! ).
Both were drawn at the same era (cearly 60's) by the same design bureau...



King Arthur: Can we come up and have a look?
French Soldier: Of course not. You're English types.
King Arthur: What are you then?
French Soldier: I'm French. Why do you think I have this outrageous accent, you silly king?

Well regardless I would rather take my chance out there on the ocean, that to stay here and die on this poo-hole island spending the rest of my life talking to a gosh darn VOLLEYBALL.

Archibald

Br.1180

Length : 33m
Span : 19m
Wing area : 110 m2
Empty weight : 25 tons
MTOW : 60 tons

Powerplant : two Bristol siddeley 593/3
Power : 19200 kgp each

Ceiling 60 000ft+
top speed : mach2+
range : 4000km +
crew : 3

Armement : Matra-600 balistic missile (a french skybolt ? :unsure: )

Era in which this study was made is very unclear.
Mirage IVB program ranned from March to September 1959 only. But it is indicated in the text that this plane was drawn in paralel with the 121... which is a proposal from 1963!

Even more weird  : look at the powerplant... its Concorde engines (-593 no ?) with more power! But the SST engine (derivative of the TSR-2 powerplant, wich had teething problem and was not ready until 1963 or so, destroying its testbed on the ground!) was not ready until 1966 or so (IMHO).

Other thing ; its forerunner, the TALP program (Br.1170) date back from 1960 or so...
Dates do not correspond with the Mirage IVB program...

That's strange...
King Arthur: Can we come up and have a look?
French Soldier: Of course not. You're English types.
King Arthur: What are you then?
French Soldier: I'm French. Why do you think I have this outrageous accent, you silly king?

Well regardless I would rather take my chance out there on the ocean, that to stay here and die on this poo-hole island spending the rest of my life talking to a gosh darn VOLLEYBALL.

Archibald

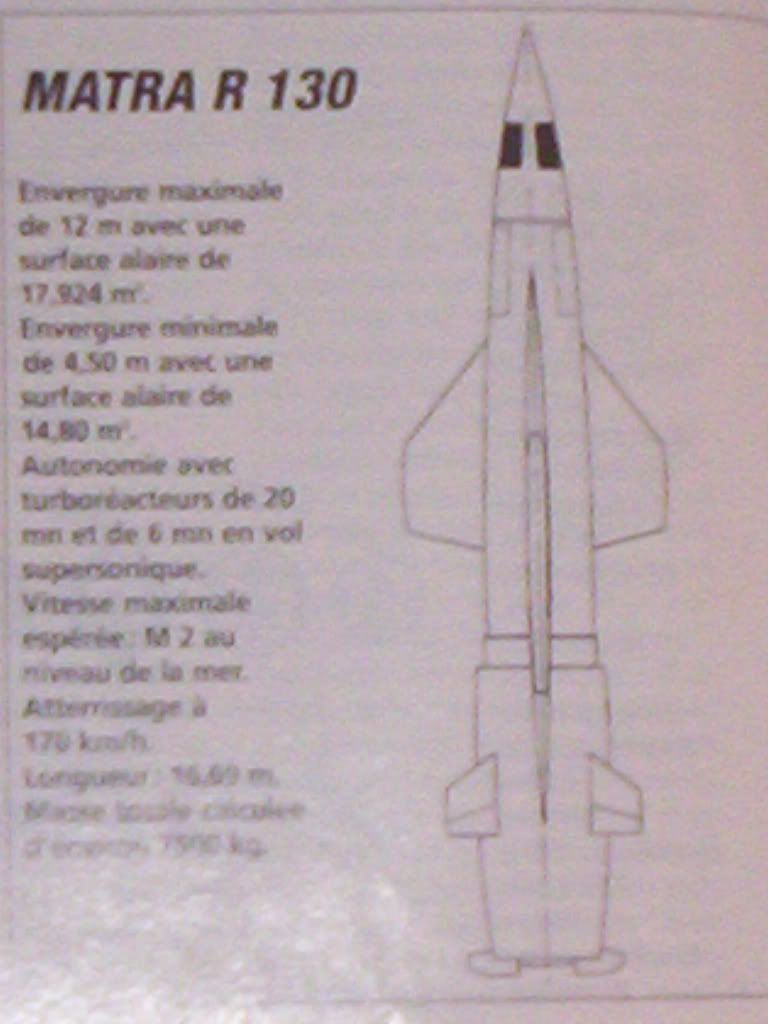

Here's another project I love : the Matra R-130. Before Lagardere, and AAMs, the firm worked on aircrafts (from 1935 to 1950).
This one was part of the big reasearch program on ramjet aircrafts (which included Leduc 010, 021 and 022, and Griffon). It never left the drawing board... but this is a daring project, and a sexy aircraft...

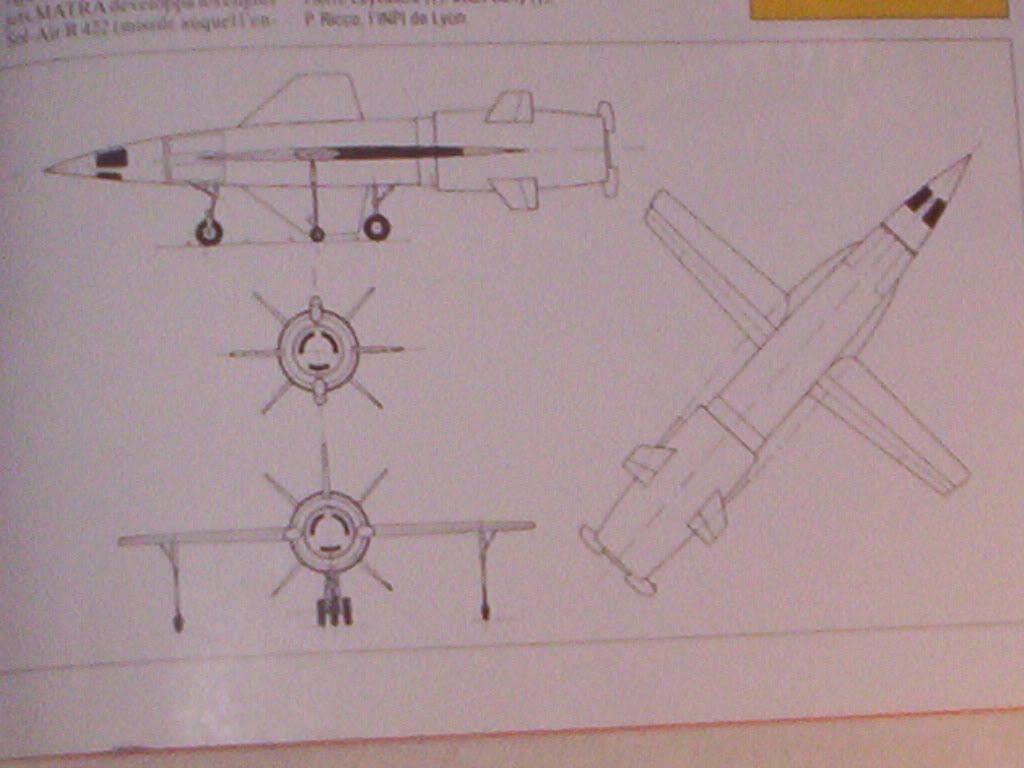

Matra R-130 (from Le Fana de l'Aviation 2003)
