#30
May 26, 2009, 11:23:44 AM
I like the idea of a FSW version with conformal fuel tanks and thrust vectoring nozzle.

Regards,

Greg
All hail the God of Frustration!!!

PR19_Kit

#31
May 26, 2009, 11:41:32 AM
OK, what the hell's 'DSI' mean?

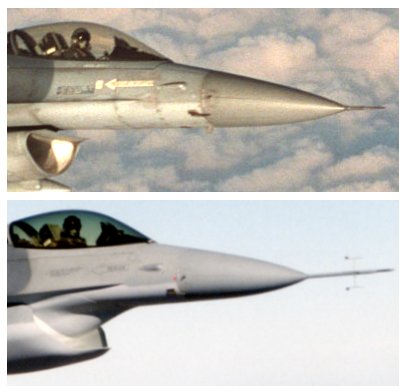

The probe is probably only a temporary fit for flight tests and is angled down like that to be directly in the air flow for the flight regime they are testing, presumably at relatively slow speeds.
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

GTX

#32
May 26, 2009, 11:45:38 AM
DSI = Diverterless Supersonic Intake as per the F-35 and even this experimental F-16:





regards,

Greg
All hail the God of Frustration!!!

PR19_Kit

#33
May 26, 2009, 11:51:22 AM
Ah, OK, thanks Greg.

It looks like a Feri intake from the side, like the F-105 or the F8U-3 Super Crusader, but with the added bulge at the top.
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Sauragnmon

#34
May 26, 2009, 08:33:56 PM
The bulge is designed to redirect the boundary layer airflow so as to form the shockwave against the intake to slow the airflow down at supersonic speeds without the use of flaps, or the simple avoidance tactic of creating an airflow diverter along the boundary layer airflow to keep it from being sucked into the intake.
Putty-fu, Scratch-jutsu and Bash-chi, the sacred martial arts of the What-If. Mastering them, is Ancient Chinese Secret.

Just your friendly neighbourhood Mad Scientist and Ship-whiffer.

Overkill? Nah, it's Insurance.  So are the 20" guns.

B777LR

#35
May 27, 2009, 07:04:38 AM
Quote from: ysi_maniac on June 14, 2007, 12:50:49 PM
Iran? with nukes? :o

Would they not rather do a FSW F-5?

Deino

#36
June 03, 2009, 12:52:19 AM
...
My noon, my midnight, my talk, my song;
I thought that love would last forever; I was wrong.

The stars are not wanted now; put out every one:
Pack up the moon and dismantle the sun;
Pour away the ocean and sweep up the woods:
For nothing now can ever come to any good.
-
W.H.Auden (1945

PR19_Kit

#37
June 03, 2009, 02:54:17 AM
That last shot looks like one of those 'But I thought YOU were supposed to be doing that! ' meetings that always occur when the driver presses a button and nothing happens!  ;D
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Sauragnmon

#38
June 03, 2009, 08:51:41 AM

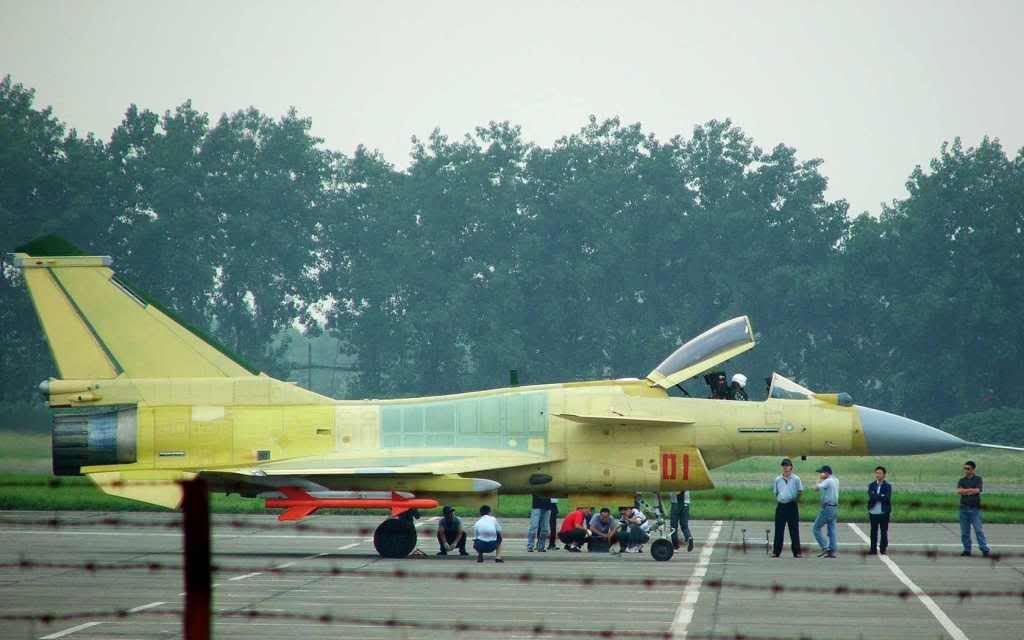

Could well be a post-flight data collection situation, thus the computer - they're probably still testing the design with the DSI to optimize the shockwave creation effect at different speeds, thus the yellow paintjob - I just don't see even the PLAAF flying into combat with a Yellow aircraft.
Putty-fu, Scratch-jutsu and Bash-chi, the sacred martial arts of the What-If. Mastering them, is Ancient Chinese Secret.

Just your friendly neighbourhood Mad Scientist and Ship-whiffer.

Overkill? Nah, it's Insurance.  So are the 20" guns.

pyro-manic

#39
June 03, 2009, 09:58:28 AM
I think that's primer, as opposed to a proper paint scheme.
Some of my models can be found on my Flickr album >>>HERE<<<

Captain Canada

#40
June 03, 2009, 10:01:22 AM
It's pretty cool, but I like the old look better....

:cheers:

Thanks for posting the new pics !


:wub:
CANADA KICKS arse !!!!

Long Live the Commonwealth !!!
Vive les Canadiens !
Where's my beer ?

sv51macross

#41
June 03, 2009, 12:37:13 PM
From ARC, a bit of J-10B mecha musume...

Deino

#42
July 21, 2009, 12:21:41 AM

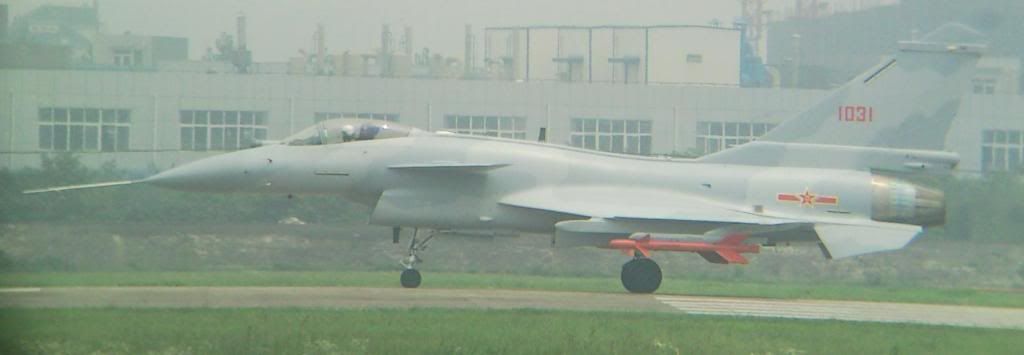

It seems as if that bird is ready for the big show on October 1st. !!!

Deino



...
My noon, my midnight, my talk, my song;
I thought that love would last forever; I was wrong.

The stars are not wanted now; put out every one:
Pack up the moon and dismantle the sun;
Pour away the ocean and sweep up the woods:
For nothing now can ever come to any good.
-
W.H.Auden (1945

Sauragnmon

#43
July 21, 2009, 12:25:15 AM
So it would, Deino, so it would - she looks nice in the gray camo, rather sleek looking.
Putty-fu, Scratch-jutsu and Bash-chi, the sacred martial arts of the What-If. Mastering them, is Ancient Chinese Secret.

Just your friendly neighbourhood Mad Scientist and Ship-whiffer.

Overkill? Nah, it's Insurance.  So are the 20" guns.

Just call me Ray

#44
July 21, 2009, 01:49:12 AM
Quote from: sv51macross on June 03, 2009, 12:37:13 PM
From ARC, a bit of J-10B mecha musume...



Link to thread please and please tell me the artist is from ARC too.

Boy I feel like I'm at a certain imageboard now.
It's a crappy self-made pic of a Lockheed Unmanned Combat Armed Rotorcraft (UCAR), BTW
Even Saddam realized the hazard of airplanes, and was discovered hiding in a bunker. - Skydrol from Airliners.net
