PR19_Kit

The problem with leaving the belly tank off a Swift would have meant it would have been limited to operations inside its airfield's perimeter......

Goodness knows why, that ginormous fuselage should have held a super-tanker's worth of fuel!
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

zenrat

Quote from: PR19_Kit on May 20, 2018, 01:23:52 PM
The problem with leaving the belly tank off a Swift would have meant it would have been limited to operations inside its airfield's perimeter......

Goodness knows why, that ginormous fuselage should have held a super-tanker's worth of fuel!

Wing tip tanks (rather than my so well drawn missiles) would be a solution as would underwing drop tanks.
Or, just invent a much more efficient engine.
Fred

- Can't be bothered to do the proper research and get it right.

Another ill conceived, lazily thought out, crudely executed and badly painted piece of half arsed what-if modelling muppetry from zenrat industries.

zenrat industries:  We're everywhere...for your convenience..

AS.12

#62
I have the following internal fuel capacities for the Swifts, in Imp gallons, per Pilot's Notes:


MarkFrontCentreRearWingsGunbayTotal
F.Mk.111398104150465
F.Mk.21129874176460
FR.Mk.511298104192506
F.Mk.711210435101196548

Plus another 220 gallons in the optional belly tank for all Marks.

I don't have the breakdown for the Hunter other than totals:


MarkTotal
F.Mk1/2337
F.Mk.4/5414
F.Mk.6390


So the Swift was actually quite well endowed with fuel, for a British day fighter.  Except for that afterburny thing.

_

The Wooksta!

And a draggy fuselage that was a hangover from the bulky centrifugal engine used by the Attacker, one that was also double skinned and vastly over-engineered = heavy, as opposed to the Hunter which was intended for the slimmer Avon from the start.
"It's basically a cure -  for not being an axe-wielding homicidal maniac. The potential market's enormous!"

"Visit Scarfolk today!"
https://scarfolk.blogspot.com/

"Dance, dance, dance, dance, dance to the radio!"

The Plan:
www.whatifmodelers.com/index.php/topic

PR19_Kit

Quote from: AS.12 on May 21, 2018, 05:13:41 AM

So the Swift was actually quite well endowed with fuel, for a British day fighter.  Except for that afterburny thing.


Exactly, without which it could not take-off.
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

Snowtrooper

Quote from: The Wooksta! on May 21, 2018, 05:47:52 AM
And a draggy fuselage that was a hangover from the bulky centrifugal engine used by the Attacker, one that was also double skinned and vastly over-engineered = heavy, as opposed to the Hunter which was intended for the slimmer Avon from the start.
How much of that over-engineering was actually due to Supermarine toying with the idea of making a carrier aircraft that would belly-land on a rubber deck, and they just over-engineered every prototype just in case one was picked for the role...? ;D

andrewj

Quote from: PR19_Kit on May 21, 2018, 02:20:03 PM
Quote from: AS.12 on May 21, 2018, 05:13:41 AM

So the Swift was actually quite well endowed with fuel, for a British day fighter.  Except for that afterburny thing.


Exactly, without which it could not take-off.

The F1 and F2 managed to take off without afterburner.

zenrat

Quote from: AS.12 on May 21, 2018, 05:13:41 AM
I have the following internal fuel capacities for the Swifts, in Imp gallons, per Pilot's Notes:


MarkFrontCentreRearWingsGunbayTotal
F.Mk.111398104150465
F.Mk.21129874176460
FR.Mk.511298104192506
F.Mk.711210435101196548

Plus another 220 gallons in the optional belly tank for all Marks.

I don't have the breakdown for the Hunter other than totals:


MarkTotal
F.Mk1/2337
F.Mk.4/5414
F.Mk.6390


So the Swift was actually quite well endowed with fuel, for a British day fighter.  Except for that afterburny thing.

_

Longer wings = more fuel (and a happy Kit)

Fred

- Can't be bothered to do the proper research and get it right.

Another ill conceived, lazily thought out, crudely executed and badly painted piece of half arsed what-if modelling muppetry from zenrat industries.

zenrat industries:  We're everywhere...for your convenience..

jcf

Take advantage of the bulky fuselage and install a
low bypass turbofan. Increase the size of the intakes
to accomodate increased air-flow, keep reheat, and
make other mods* needed to fill a dedicated low-level
ground attack role.

* including, of course, reduced span for better low-level ride.  :wacko: :thumbsup:


PR19_Kit

Quote from: andrewj on May 22, 2018, 12:02:49 AM
Quote from: PR19_Kit on May 21, 2018, 02:20:03 PM
Quote from: AS.12 on May 21, 2018, 05:13:41 AM

So the Swift was actually quite well endowed with fuel, for a British day fighter.  Except for that afterburny thing.


Exactly, without which it could not take-off.

The F1 and F2 managed to take off without afterburner.


Only just...........
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

zenrat

Quote from: joncarrfarrelly on May 22, 2018, 10:42:40 AM
Take advantage of the bulky fuselage and install a
low bypass turbofan. Increase the size of the intakes
to accomodate increased air-flow, keep reheat, and
make other mods* needed to fill a dedicated low-level
ground attack role.

* including, of course, reduced span for better low-level ride.  :wacko: :thumbsup:



Fit a Pegasus, complete with cold air nozzles which would be pointed down and back to generate lift on the take off run.
Fred

- Can't be bothered to do the proper research and get it right.

Another ill conceived, lazily thought out, crudely executed and badly painted piece of half arsed what-if modelling muppetry from zenrat industries.

zenrat industries:  We're everywhere...for your convenience..

jcf

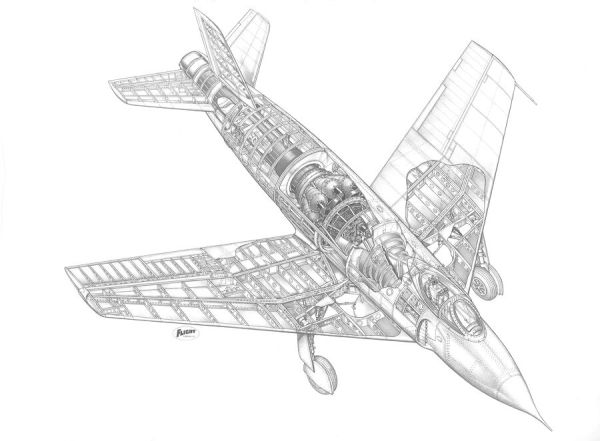

The engine is mounted so far back in the fuselage that a Pegasus mounting is
questionable.



Pegasus
Type: Twin-spool turbofan
Length: 137 in (3.480 m)
Diameter: 48 in (1.219 m)
Dry weight: 3,960 lb (1,796 kg)

Avon
Type: Turbojet
Length: 126 in (3,200 mm)
Diameter: 35.7 in (907 mm)
Dry weight: 2,890 lb (1,310 kg)

Perhaps a low-bypass version of the Avon?

PR19_Kit

This is WhiffWorld, just move it forward............  ;D ;D
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

jcf

Quote from: PR19_Kit on May 24, 2018, 03:15:09 PM
This is WhiffWorld, just move it forward............  ;D ;D

;D ... and add some humongous elephant-ear intakes.
Sounds like a job for ericr.  :thumbsup:
