Howard of Effingham

thanks PD7.

i will now have to see if the KLu markings i hope to use will fit.

trevor
Keeper of George the Cat.

GTX

Have a look here (http://www.whatifmodelers.com/index.php/topic,12942.0/) too - some profiles already done for inspiration.

Regards,

Greg
All hail the God of Frustration!!!

GTX

Something I just stumbled across - The "Snabel-Viggen".  Saab was seeking collaboration with MBB (who eventually did the X-31) in building a test aircraft from the Viggen in order to test high AoA performance. The Viggen was supposed to be fitted with vectored thrust, down sloping intakes and fully moveable canards.



Regards,

Greg
All hail the God of Frustration!!!

ChernayaAkula

:wub: Where's that pic from? Has a comic book look to it...
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

GTX

Hi folks,

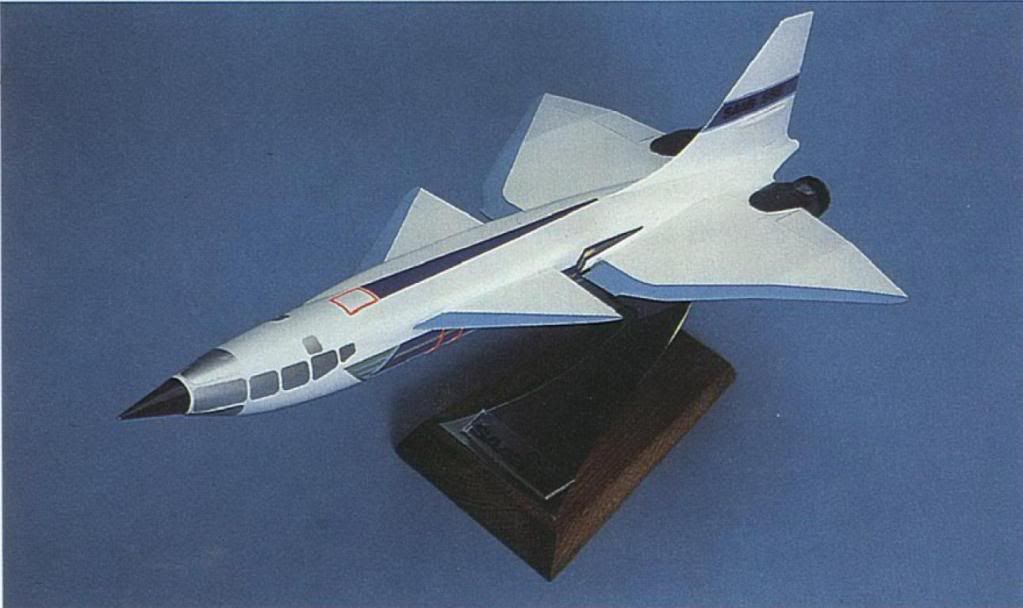

Something I just found in a book detailing the history of Saab-Scania.  The proposed Saab Supersonic Executive jet (SSE):



No other data I'm afraid, though the SSE obviously has Viggen heritage and there was a mention that an American company (which?) did make enquiries for a modified version of the Viggen capable of flying 6 - 8 passengers at Mach 2.  Unfortunately, the proposal proved too expensive and was not progressed with.  Perhaps this is that proposal?

Regards,

Greg
All hail the God of Frustration!!!

ElectrikBlue

Wow... Amazing project, thanks for sharing!  :wub:

famvburg


       Back in the early '70s when the GI Joe Adventure Team action figure line came out, one set was a pilot with parachute called "Fantastic Freefall Adventure". While no airplane was included, pictured on the boxart was a gray USAF SAAB Viggen, which he had bailed out of. The sets also cam with small comics & the a/c shown in the comics looked a lot like a swept wing AVRO CF-100 with an F-15ish forward fuselage. No Viggen in the comic, just on the box.


Quote from: Ian the Hunter-Gatherer on December 02, 2007, 04:30:31 AM
Almost goes without saying that it would look beautiful in the overall ADC grey with really bright (Michigan ANG ??) unit markings.

Ian

ysi_maniac

Hi GTX,
The last two pics you have posted are so inspiring  :thumbsup:
Thanks for post them!
:thumbsup:
Will die without understanding this world.

norseman

Sorry to restart an old thread but this is my favourite all time aircraft. Not mentioned here but the original engine mooted for the Viggen was a RR Medway variant giving 22,000lb dry and 30,000lb+ reheat. Unfortunately this was canned and left Saab having to find an alternative which they did but RR did shoot itself in the foot a lot. Would have been nice along with the tentative project to fit RB.106's into the Drakens.
A fag packet discussion was taken in the 80's as well with talk of re-enginning Viggens with straight through re-heat versions of the RB.422 giving 32-33,000lb dry and over 48,000lb reheat (VTOL PCB version in initial version was already pitched at 44,600lb thrust). This never got beyond informal assesment and then it all fell apart with the cancellation of the P.1214/1216 and the RB.422 family which was a real pity as this engine was basically doing what the F.135/136 are doing now. With an engine like this it opens a whole extra range of what if versions, thinking especially 2 seat strike or long range competitor to Tornado ADV and F15.

KJ_Lesnick

Why didn't the Swedish make any use of flush-mounts on the Draken, Viggen, and Gripen?

KJ Lesnick
That being said, I'd like to remind everybody in a manner reminiscent of the SNL bit on Julian Assange, that no matter how I die: It was murder (even if there was a suicide note or a video of me peacefully dying in my sleep); should I be framed for a criminal offense or disappear, you know to blame.

GTX

Don't know - maybe ask Saab...

Greg
All hail the God of Frustration!!!

Weaver

Quote from: KJ_Lesnick on January 26, 2010, 06:02:42 PM
Why didn't the Swedish make any use of flush-mounts on the Draken, Viggen, and Gripen?

KJ Lesnick

You mean like the semi-recessed Sparrows on F-4s, F-14s etc?

My guess would be:

Draken: chosen weapons were Falcons with long-chord wings which are not exactly suitable for a recessed mounting. They could be mounted on mini-Phoenix-style pallets, but then most of the available surfaces are bits of the wing, so they'd screw up the airflow more than a thing pylon. Sidewinders need to see the target, so they're not really suitable for flush-mounting until they and the avionics get sophisticated to "pre-point" them. It's also a pretty small aircraft, so even the volume of a few missile troughs would have an impact.

Viggen: the aircraft certainly looks like it could take Skyflash troughs at the wing/fuelage junction doesn't it? However, the aircraft was developed as a ground attack aircraft first (AJ.37), so carrying a wide variety of bombs, rockets and ASMs probably got a higher priority than minimising drag. The interceptor version (JA.37) was developed from it later, and the only airframe changes that seem to have been allowed were "bolt on" ones. you may wonder how the Tornado, which went through the same transition, managed to get semi-recessed Skyflashes, but in that case, the UK was "lucky" in that all the major airframe changes were confined to the front fuselage, which we built, so we could do a UK-only "special" without disrupting the main program. Note that the Tornado's rear Skyflashes are not recessed: they just sit on the outside of the German centre-fuselage, in positions where their fin pockets can be shoe-horned in-between exisiting equipment.

Gripen: again, it's a small aircraft and volume matters. They may also have been considering the fact that the choice of weapons wasn't certain at the time the design was fixed: Meteor (and it's paper predecessors) wouldn't fit in the same trough as an AMRAAM, and there isn't room for Typhoon-style fuselage corner pylons. In fact, one suspects that this consideration (i.e. weapon uncertainty) may have influenced the change from the EAP's Tornado F.3-style missile troughs to the Typhoon's F-15-style corner mounts.
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones

ChernayaAkula

Quote from: Weaver on January 27, 2010, 04:13:31 AM
<...>the UK was "lucky" in that all the major airframe changes were confined to the front fuselage, which we built, so we could do a UK-only "special" without disrupting the main program. Note that the Tornado's rear Skyflashes are not recessed: they just sit on the outside of the German centre-fuselage, in positions where their fin pockets can be shoe-horned in-between exisiting equipment.

Most interesting!  :o I always wondered why the rear pair sit the way they do.

Quote from: Weaver on January 27, 2010, 04:13:31 AM
<...> Meteor (and it's paper predecessors) wouldn't fit in the same trough as an AMRAAM,<...>

I may be wrong, but wasn't one of the Meteor's requirements to fit in the Typhoon's AMRAAM troughs? Or was that requirement added later to avoid expensive refits to the Typhoon fleet and to fit in the weapons bays of the (British) F-35s?
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

KJ_Lesnick

Weaver,

So it had nothing to do with the requirement that the plane could be armed in ten minutes with with conscripts who have little training?
That being said, I'd like to remind everybody in a manner reminiscent of the SNL bit on Julian Assange, that no matter how I die: It was murder (even if there was a suicide note or a video of me peacefully dying in my sleep); should I be framed for a criminal offense or disappear, you know to blame.

Weaver

Quote from: KJ_Lesnick on January 27, 2010, 11:01:13 PM
Weaver,

So it had nothing to do with the requirement that the plane could be armed in ten minutes with with conscripts who have little training?

Don't see why it's significantly harder to load a Sparrow onto a Phantom than a Viggen to be honest, and it's something you could train any reasonbly competent group of people to do in a reasonable time....
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones
