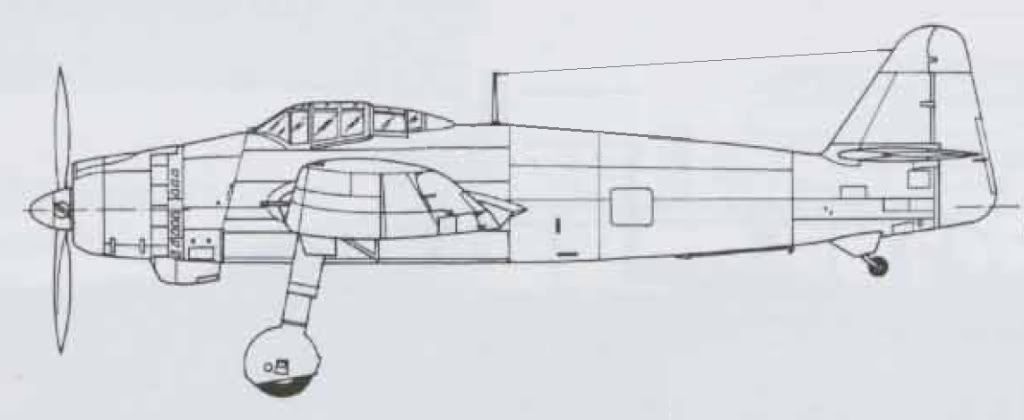

A better version of an earlier idea:



Regards,

Greg
All hail the God of Frustration!!!

GTX

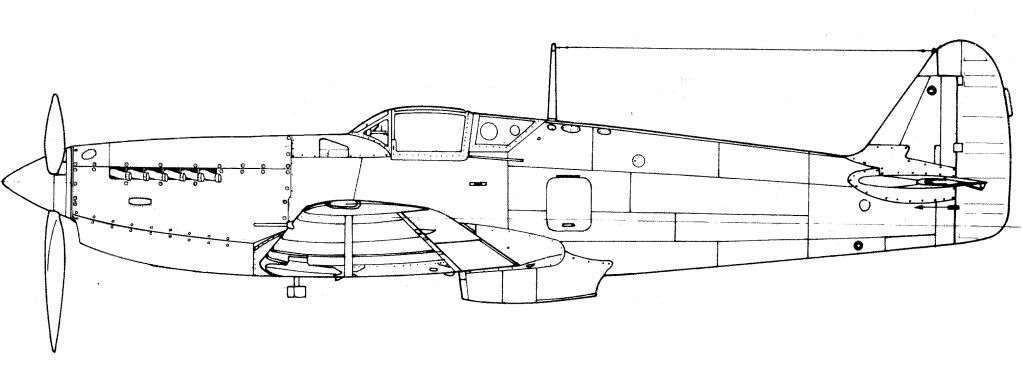

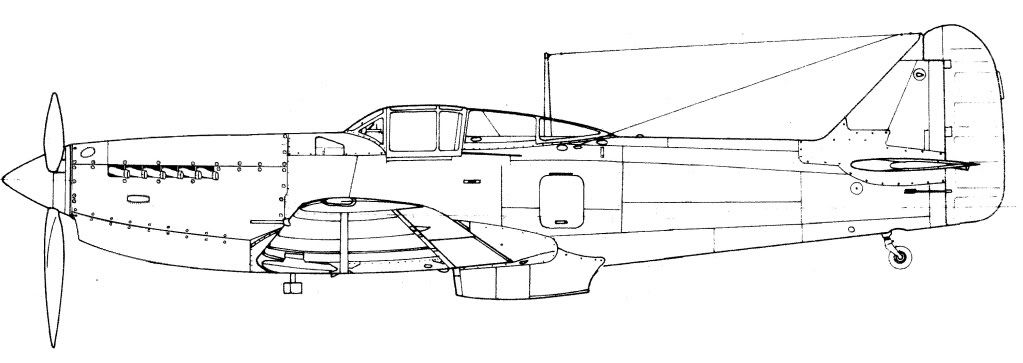

Some Merlin engined K-61s/Ki-100s:





Regards,

Greg
All hail the God of Frustration!!!

Taiidantomcat

Nice to see such worthy additions to this thread  :thumbsup:
"Imagination is the one weapon in the war against reality." -Jules de Gaultier

"My model is right! It's the real world that's wrong!" -global warming scientist

An armor guy, who builds airplanes almost exclusively, that he converts to space fighters-- all while admiring ship models.

Maverick

Out of curiousity Greg, what are the cowlings for those Ki-61s from?  I really can't place them.

Regards,

Mav

GTX

#79
Quote from: Maverick on January 14, 2011, 03:04:55 PM
Out of curiousity Greg, what are the cowlings for those Ki-61s from?  I really can't place them.

Regards,

Mav

What sort of a plane spotter are you? ;D

It's mainly Spitfire cowl but with SeaFang style lower intake (accentuated) + the original Ki-61 spinner.  I didn't want to simply put a Spit nose on a Ki-61.  I figured it might be similar, but not quite...if that makes sense.

Regards,

Greg
All hail the God of Frustration!!!

Maverick

Ah ok, the intake under the spinner confused me and of course the original -61 spinner.  I had thought some breed of P-40, but they were Allisons of course.

As for the full Spit nose, I think it would be different from a Ki-61, given that the Merlin is a conventional V12, whilst the DB-601 (or whatever the Japanese called their licence) is inverted.  A similar thing would happen to a Macchi C.202.

Regards,

Mav

jcf

Quote from: Maverick on January 14, 2011, 04:10:41 PM
  I had thought some breed of P-40, but they were Allisons of course.

P-40F and L were V-1650 Packard-Merlin powered.  ;)

Maverick

Thanks for that Jon.  What about the RAF's Kittyhawks, I think they were Merlin weren't they?

Regards,

Mav

apophenia

#83
Mav: the Kittyhawk II was Merlin powered, the rest had Allisons. BTW: just to confuse matters, there were also Allison-engined P-40L conversions (aka P-40Rs) which served as Kittyhawk IIIs. Apparently, the RAF didn't distinguish between P-40Fs and Merlin-engined P-40Ls. Nor between Allison-engined P-40Ls and P-40Ms (Kittyhawk IIIs).

apophenia

#84
I wanted to come up with a modest variation on the Ki-43 Hayabusa. Of course the Ki-43-IIIb prototypes had two 20mm Ho-5 cannons. These cannons were roughly the same size as the Ki-43-IIIa's 12.7-mm Ho-103 machineguns (both weapons being based on the Browning M2). But the Ho-5 (Type 2) guns fired the rather limiting 12.7mm x 81SR Breda cartridge. [Image deleted to spare Upload Folder]

So, how about an Ha-115-powered Ki.43-V with more powerful 20mm guns? The obvious candidate is the Ho-3 (which fired a 'full-sized' 20mm x 125 cartridge). The cockpit is moved back slightly to make room for the longer guns (and bigger internal fuel tanks). Not a big change but it does make a visual difference.

The second type is a kamakazi mod for an early model Hayabusa/ I'm imagining plans for Manshu to modify existing Ki-43-Is into 2-seat fighter trainers (à la the Ki-79B). At the last moment, it is decided to fill the original, now front cockpit with explosives. This would allow attacking aircraft to extend range with drop tanks rather than carrying bombs.

Maverick

Thanks for the info Apophenia.

I like the subtle variations on the Ki-43s.  One wonders why the Ho-5 weapons were categorised as 20mm weapons if they were firing a 12.7mm cartridge?

Very interesting stuff tho, eminently plausible and as mentioned a definite double-take.

Regards,

Mav

apophenia

Cheers Mav. The Ho-5 did fire a 20mm cartridge (the stumpy Breda type). The gun itself was based on the Browning .50-cal (as was the 12.7mm Ho-103)  but slightly scaled up.

Maverick

Colour me confused, but I looked up Ho-5 cannon online and came up with the following cartridge dimensions: 20mm x 94mm whilst the Ho-103 is listed as having the the Breda 12.7mm x 84mm cartridge that was mentioned here "But the Ho-5 (Type 2) guns fired the rather limiting 12.7mm x 81SR Breda cartridge."

I'm thinking this might be crossed lines of communication?

Regards,

Mav

apophenia

Mav: You've confused because I've stuffed it up royally! The Ho-103 was the Browning-derived gun that fired the 12.7 x 81mmSR Breda. And the Ho-105 did fire a 20 x 94mm cartridge!

Below is the list of WWII Japanese 20mm aircraft guns that I have (mind you, considering my track record ...  :-X)

20x72RB -- IJNAF Type 99-1 (original Oerlikon round)

20x82 ---- IJAAF Mauser MG 151/20

20x94 ---- IJAAF Ho-5 (Army Type 1)

20x101RB - IJNAF Type 99-2 (enlarged Oerlikon round)

20x125 --- IJAAF Ho-1 & Ho-3 (based on Type 97 AT round)

Maverick

No probs on that.  I thought there might have been a small typo, but it's all good, we know what you're talking about!

Regards,

Mav
