Saab Draken WHIF Ideas

[Daryl J.]

Grey, temporary white wrap around RAF, Norwegian deployment.

I've been trying to think of minor shape revisions to Anglicise it.   This one may get built from the 1/72 RevGerm kit.



Daryl J.

[Mossie]

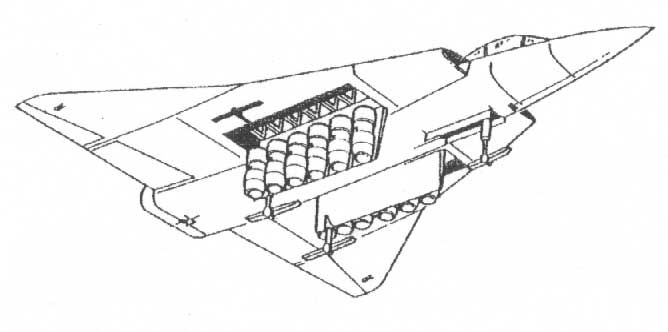

The VTOL Hawker P.1126 pretty much resembled the Draken, except it had two cruise engines & twelve lift engines.



Hopefully this will help with some inspiration, can't wait to see it!

[cthulhu77]

Don't forget, the new Hasegawa 48th version comes out in a month or so...

[Arc3371]

I have been thinking of a post J versin (Drake 2000? K?) with conformal tanks á la F-16E, wingtip Sidewinders and perhaps a new engine or Gripen nose

[ytown2010]

hey arc and everybody. here is a draken i just whipped up:

basically, what i did is take the nose from an F-15 and the canopy/cockpit from an F-15D and trimmed to fit. the tailfin is a modified F-16 fin.

[Archibald]

Love this super Drakken very much

[Arc3371]

Like the Super Draken as well but that coockpit makes the aircraft look a lot smaller

[ytown2010]

ok. here is another proposal: what if they re-engine and use GE F404s. they ditch the wing root intakes and use standard side intakes (in red), and therefore modify the wing (also in red). the nozzle is from an F/A-18. what do you think? possible?

[dy031101]

The VTOL Hawker P.1126 pretty much resembled the Draken, except it had two cruise engines & twelve lift engines.

Having discussed about the similar Mirage IIIV...... I'd figure that the number of liftjets would probably have been reduced for maintainability.

Which one do you think is more likely for a navalized Draken?  CATOBAR or STOVL?

[ytown2010]

CATOBAR. the draken already has a tailhook (at least that's what i think that bulge at the back bottom is), and they would not have to do much with the landing gear.

[Maverick]

The bulge under the tail is actually a small twin tailwheel for takeoff & landing if the aircraft over-rotated.

[ytown2010]

oh, THAT's what it is. it looked like a tailhook housing.

[Daryl J.]

Canards a la Rafale, NMF/Arctic Red/White and one has the Alaskan Rural Security Patrol.

Ogival wing tips at the double delta for a RAF Draken

Modified ground attack with the nose changed along the order of the MiG-23 ---> MiG-27 as a F-104 alternative.



Daryl J.

[deathjester]

Well, the Draken was designed to be 50% more advanced than any other fighter aircraft in the world when it came out, and it still looks more advanced than a lot of later birds!  I think the only way to really up date the plane is to fit new avionics + glass cockpit, and a new engine - it is an interceptor, so why not an Olympus 593 (over 37,000 lbs thrust with reheat!)  But would it fit??

[Weaver]

1. Rolls Royce's Rb.106 isn't cancelled, so it goes into the Draken (it was interchangeable with an Avon).

2. Intakes changed for F-105-style variable ones.

3. With all this extra power, the front end can be "Sea-Harrierised", i.e raise the cockpit floor, add a bubble canopy and a bigger radome.

4. Rather than fit a bigger fin to compensate for the side area of 3., fit twin fin units in-between the inner and outer wing panels. The fins would extend beneath the wing as far as possible and the rudders would have highly-swept trailing edges and hinge lines, the idea being to retain directional stability/control at high AoA.

5. Sell them to somebody who'll actually use them.......
