HOG

#120
Hoyhoy`l

You people seem to like the little BIP (b=bitz) I post for the dio, so I thought I might add these figure chops.


This figure came with an Ebah job lot and I think its from the Tamiya Lanc kit. I know, if its a verdamt einglander whats it doing in a German dio, but overalls is overalls right. Anyways it meant minimum cleanup and work so I used it, but then its feet looked a bit rough and I chopped them of just below the knee and added a resin pair of feet in flying boots from the same job lot.These were drilled and pinned to the figure and the trouser bottoms added with Milliput. Obviously still needs a lot of work but his shoulders look as if he has a walking stick in his right hand so he is or will be a Luft technician doing factory work till his wounds heal, possably teaching Hawk 101 to the workers.

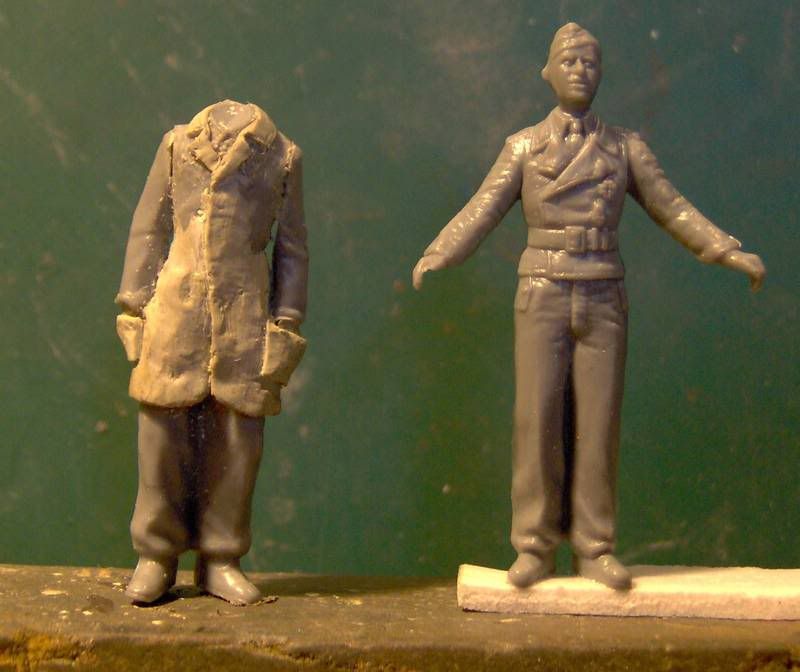

This Tamiya figure was very similar to the one on the right so after Dremelling off the jacket detail with a router bit, I cut off the arms and removed the hands and refitted them as shown. Then I made a overall coat again from Milliput and attached small balls of Milliput to represent the hands. Once this had set up the pockets were just small slabs of filler stuck over his `hands` (I was going to type balls but this is a family show) and cut to shape when still soft with a scalpel. Not sure but this may end up as a female in a turban as its quite a slender figure.

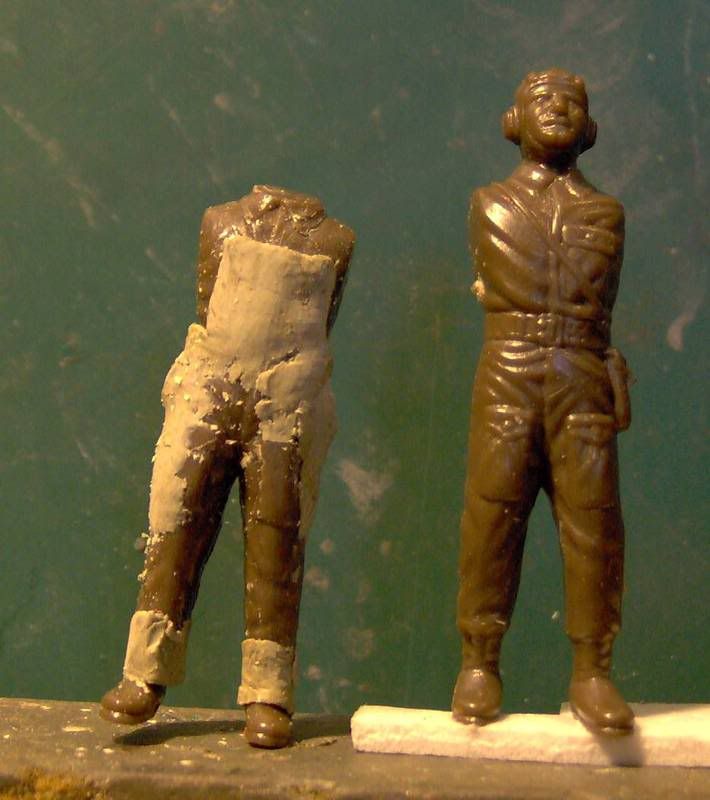

This is an old Bandai soviet tanker and he`s getting a bib`n`brace. Like the above figure the detail and pistol holster were removed with the Dremel and some more Milliput slabed on with detail at the sides to look like pockets and trouser bottoms added over the boots.

As you can see there`s plenty left to do on these and the other 4 figures I`m creating for the model but at the moment I`m stuck for an SS officer and a suited civilian inspecting the work.

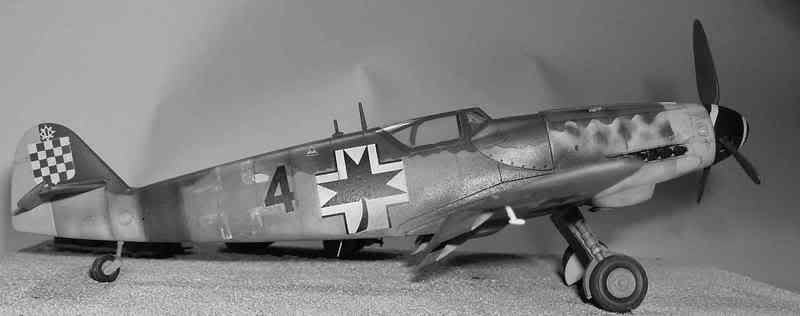

When this dio`s finished I have decided to restart work on an old model of an Me 109G-10 in Croatian markings that surrenderd to the USAAF in Italy near the end of the war. This is going to need at least 18-25 figures to try to recreate the photo below. Anyone know of a good reference for US Air Force uniforms of the period?














H-O-G = Head Out of Gestalt-hands on autopilot
WORK! The curse of the drinking class.
"Guard well your spare moments. They are like uncut diamonds. Discard them and their value will never be known. Improve them and they will become the brightest gems in a useful life."
(Ralph Waldo Emerson )

sotoolslinger

You are no good at this, you should probably just quit now.  ;D ;D ;D If you send me all that stuff I'll show you how to finish it :banghead: :banghead:
I'll get me coat :party:(and my knitting needles)
I amuse me.
Huge fan of noisy rodent.
Things learned from this site: don't tease wolverine.
Eddie's personal stalker.
Worshippers in Nannerland

Brian da Basher

I just love your updates on your dios, HOG. It's a treat to have you explain all your modelling tricks. Here's a link from the U.S. Air Force museum website that might help: W.W. II U.S. Air Corps uniforms.

Brian da Basher

HOG

#123
Hoyhoy`al

Boy this place is getting prolific, I had to go back 9 pages to find this.

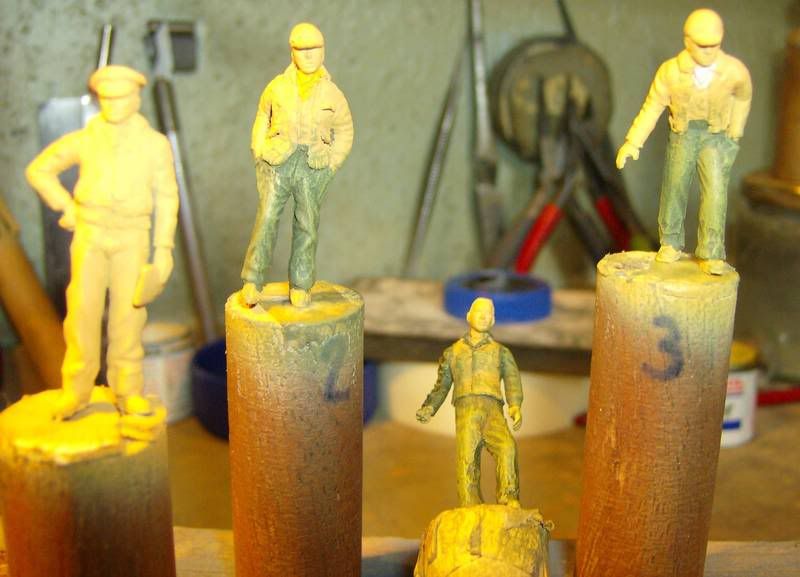

Anyhows not alot done due to other outside modeling pressures, but the figure conversions above are done and primed for painting, and  I sourced a Tamiya `Inf on Manouvers` set on eBah that should supply a couple of SS officers when it comes.

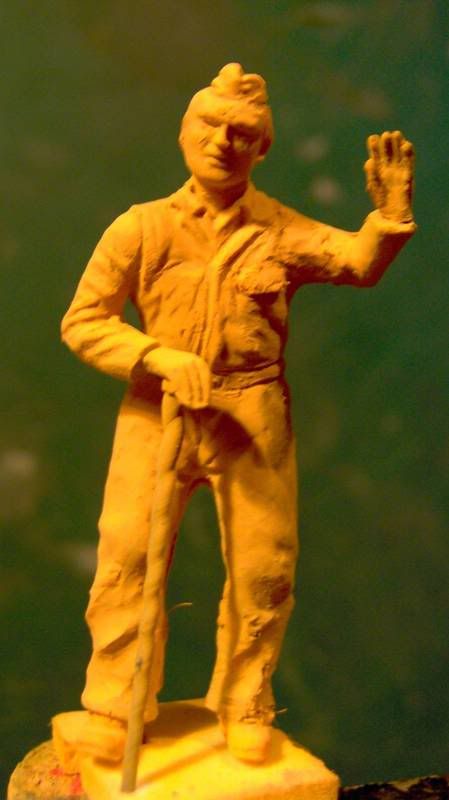

Otto Klumph. In the luftwaffe since before the Condor legion days. Injured on duty and now acting as instructor on Hawk engines.

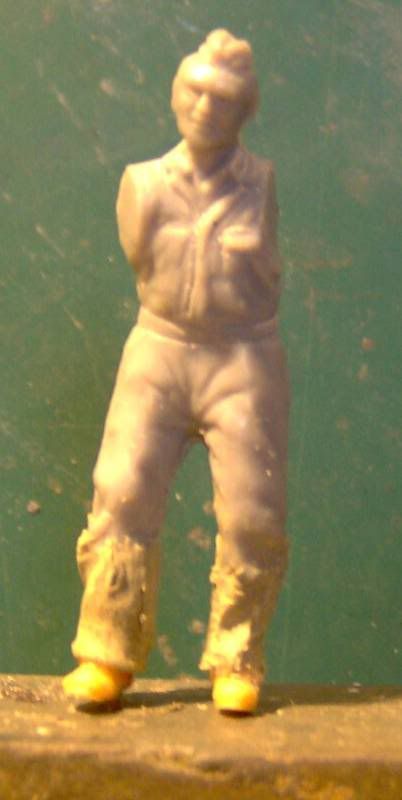

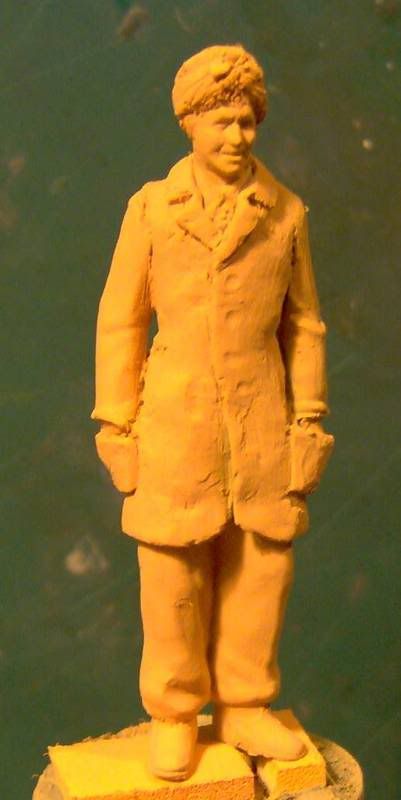

Here we have fraulien Smidt. First day on the job with the boys.

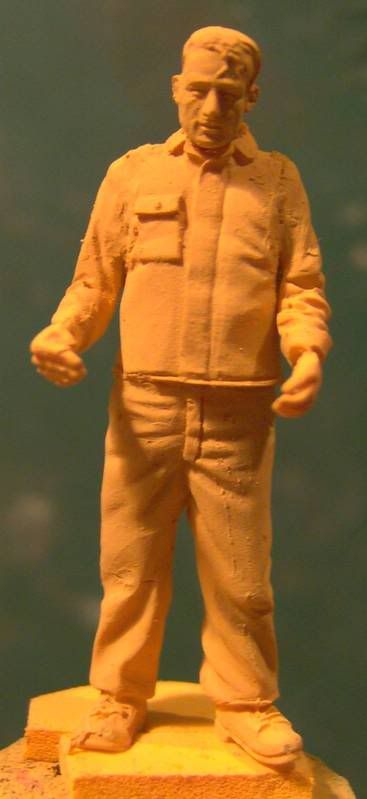

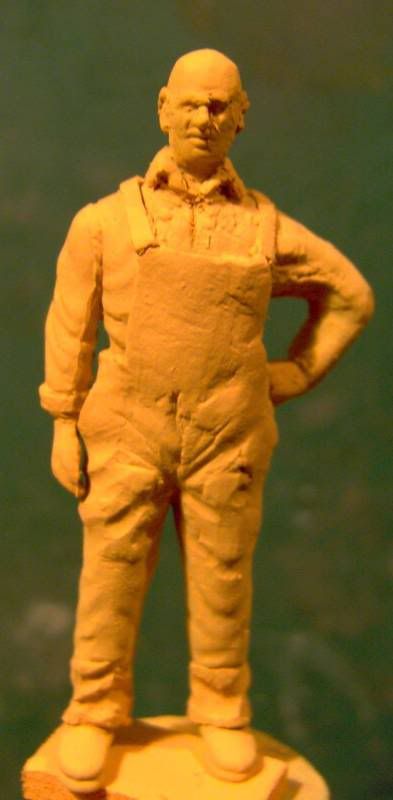

Lex Loofah. Not the brightest bulb in the box but reliable enough to follow instructions


The new addittion to the gang. Had he been born 10 years later he could have made a living as a film star stand in.

Hopefully the next time you see this motley crewe the`l have been painted and installed in the dio with the others.
Cheers for now :drink:
Gary
H-O-G = Head Out of Gestalt-hands on autopilot
WORK! The curse of the drinking class.
"Guard well your spare moments. They are like uncut diamonds. Discard them and their value will never be known. Improve them and they will become the brightest gems in a useful life."
(Ralph Waldo Emerson )

Brian da Basher

I don't think I've ever seen figures with so much character and personality before HOG! You're truly an artist.
:bow:
Brian da Basher

ysi_maniac

Will die without understanding this world.

HOG

Hoyhoy`al

Dun

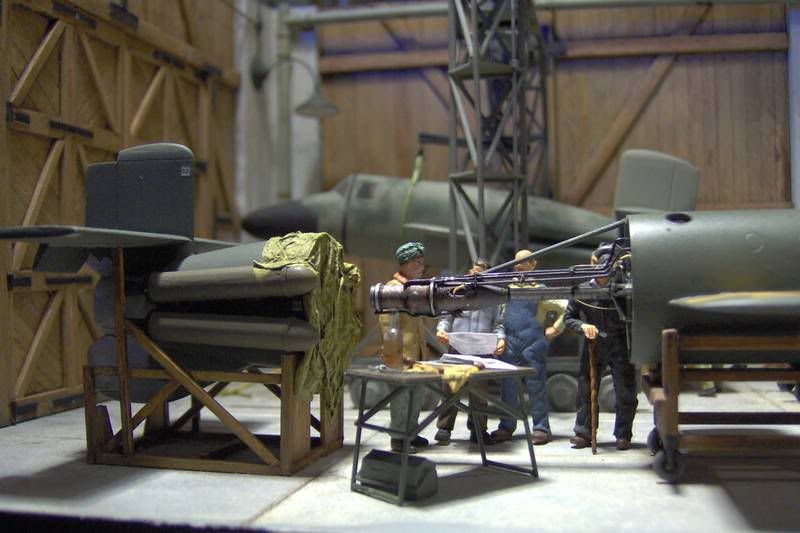

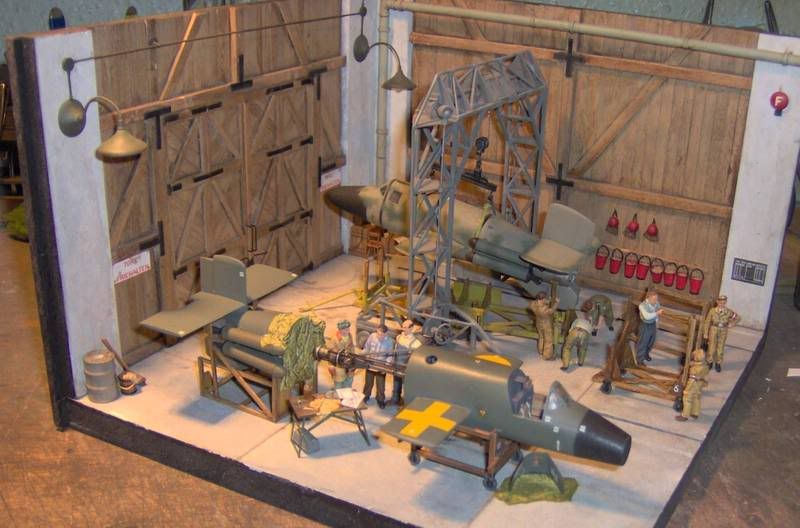

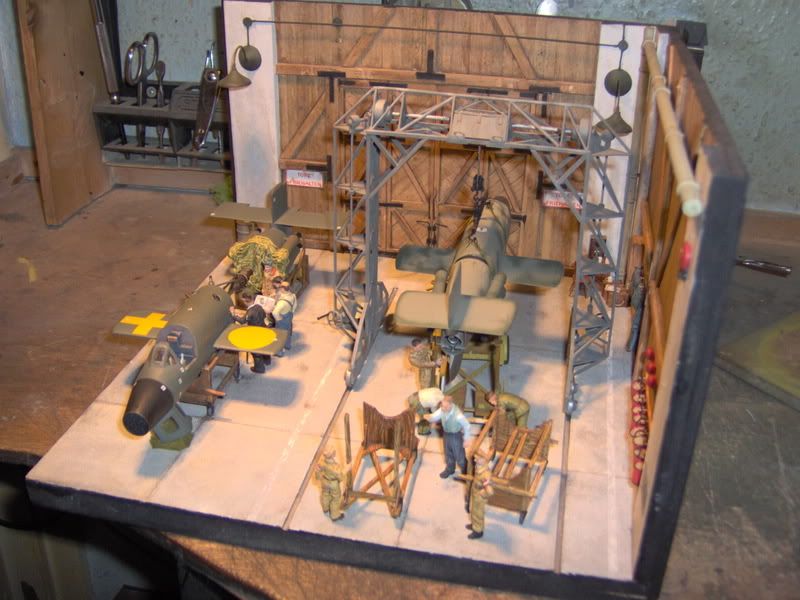

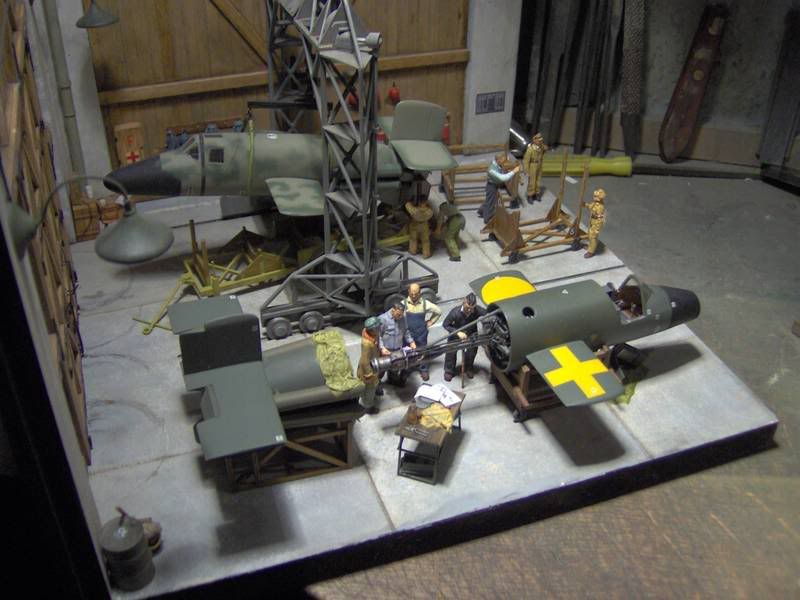

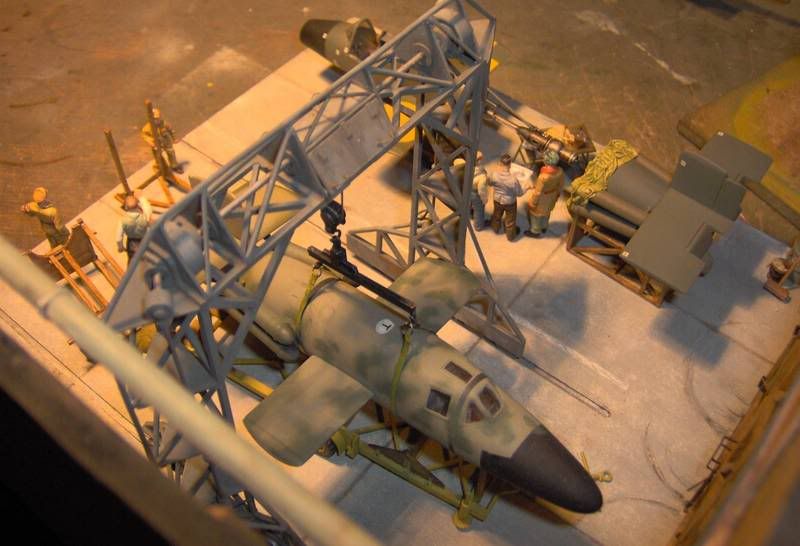

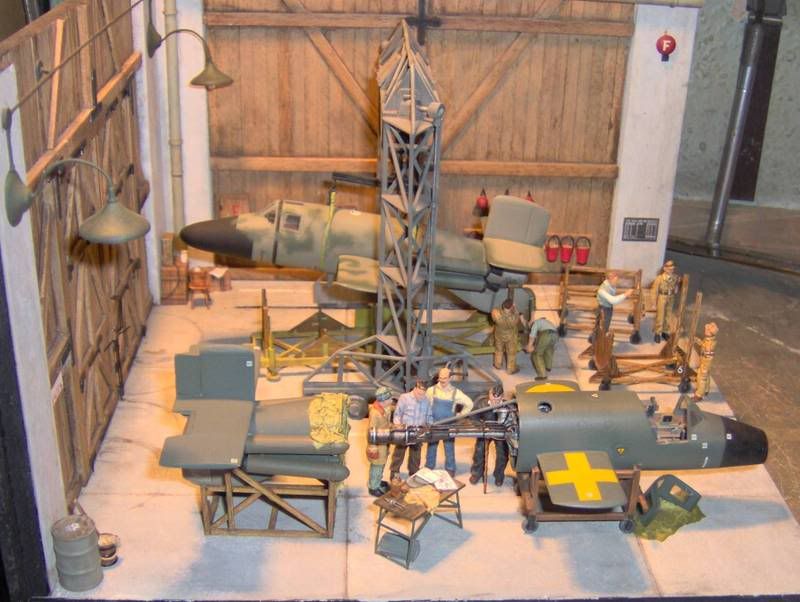

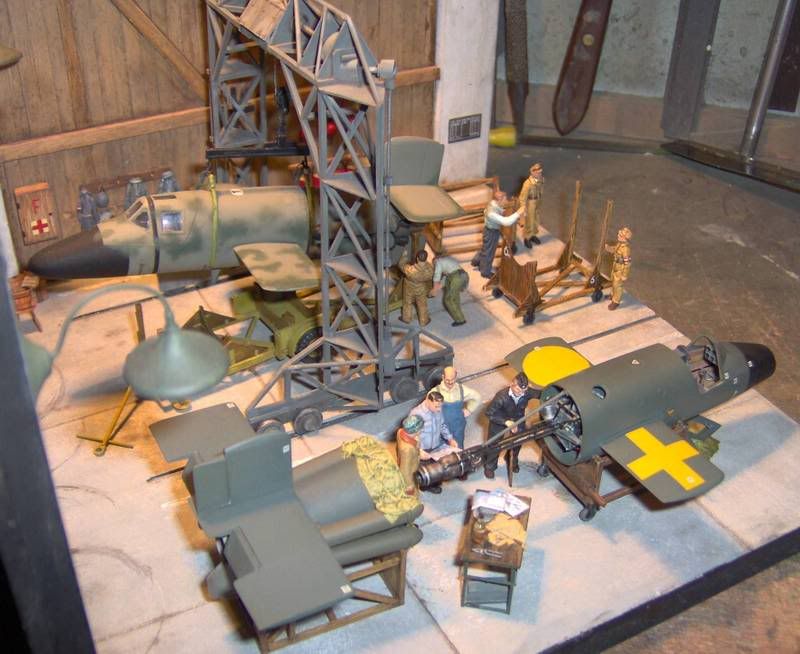

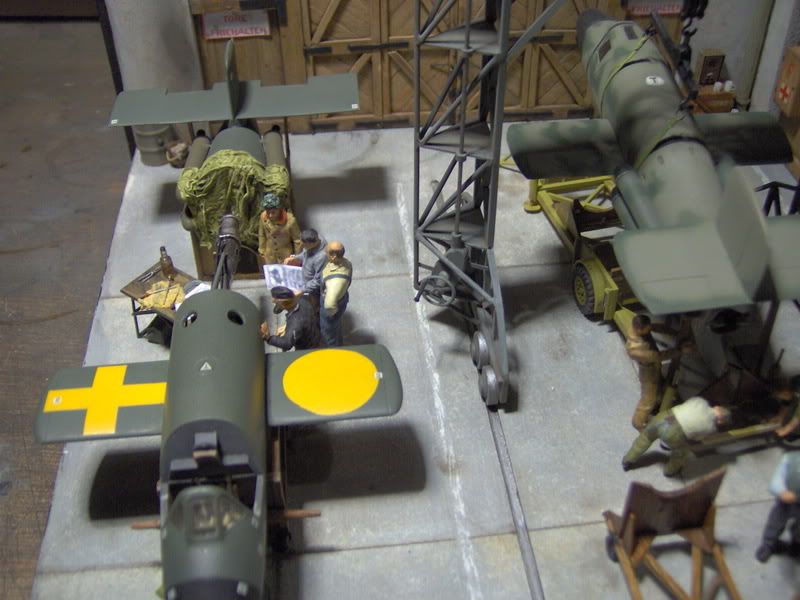

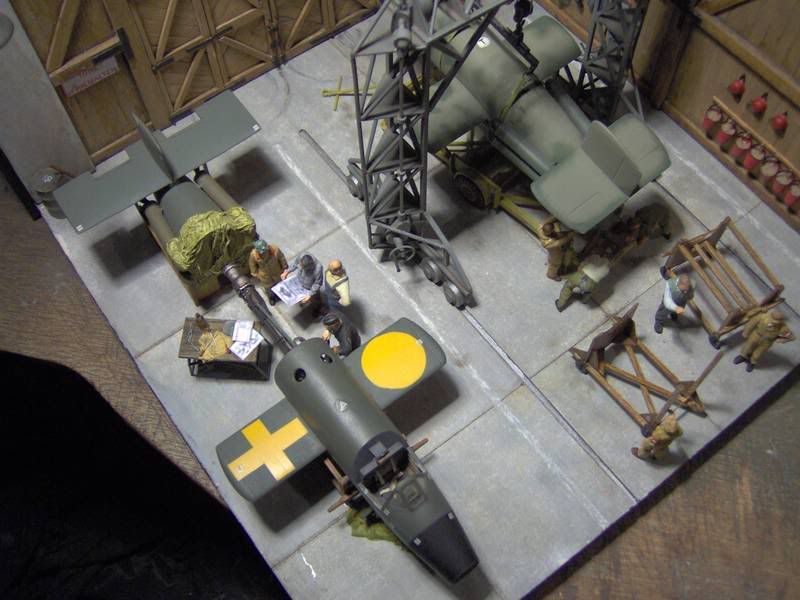

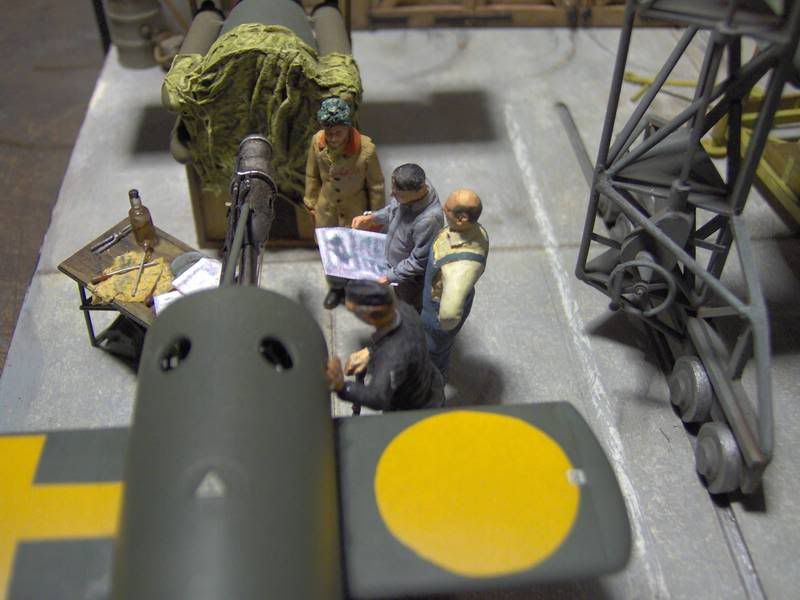

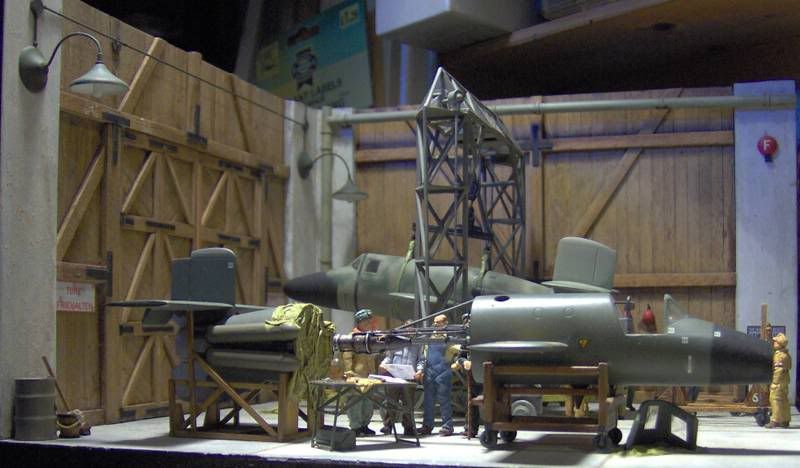

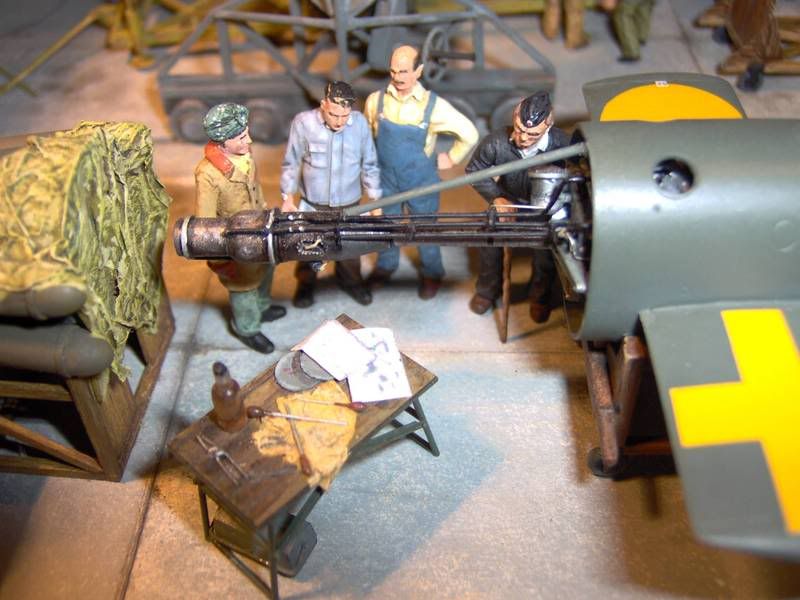

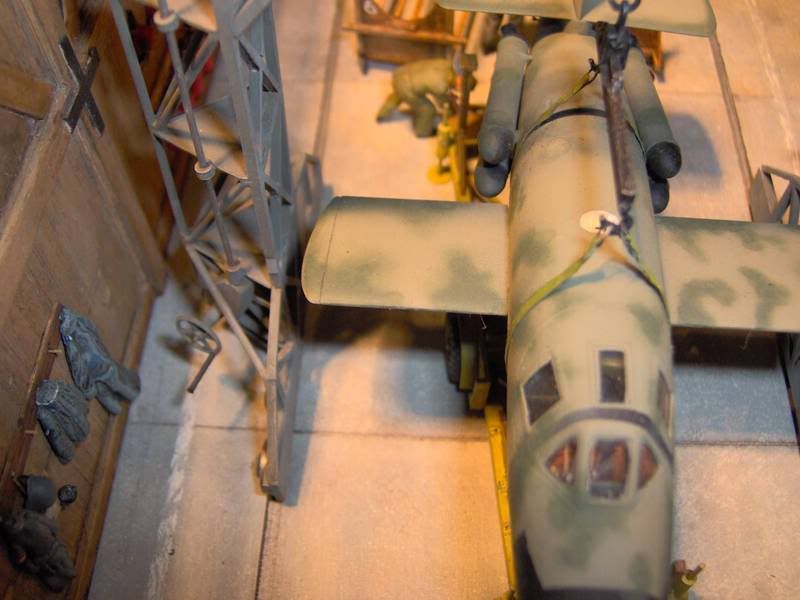

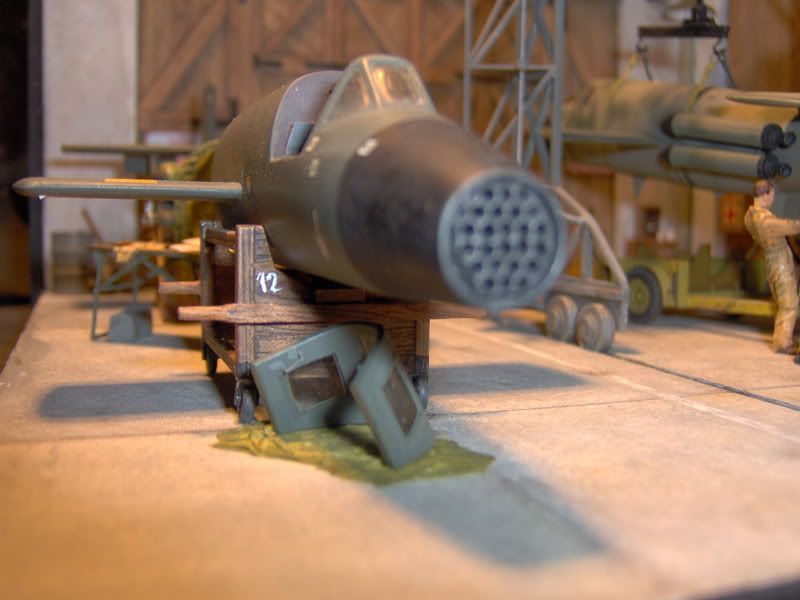

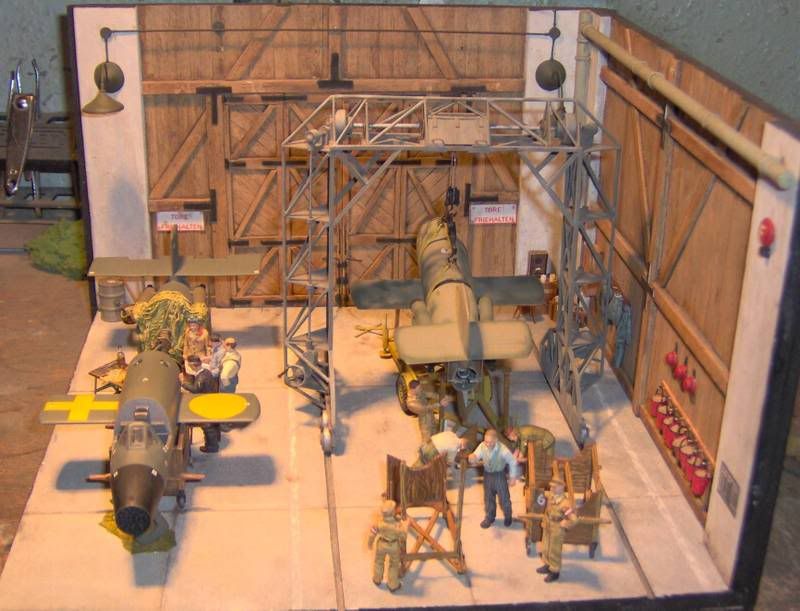

I know I said somthing about some SS officers but it`s starting to look a bit crowded as it is. Just the clear sides and top to go but your not interested in that so enjoy and crititism welcomed.

Cheers :drink:
Gary
H-O-G = Head Out of Gestalt-hands on autopilot
WORK! The curse of the drinking class.
"Guard well your spare moments. They are like uncut diamonds. Discard them and their value will never be known. Improve them and they will become the brightest gems in a useful life."
(Ralph Waldo Emerson )

Brian da Basher

That's some astonishing work, HOG! I just love how your diorama tells a story and there's so many little vignettes in it that one could never lose interest! Your attention to detail is top-notch! This one is sure to bring home a blue ribbon or two (or three or four....).
:bow:
Brian da Basher

sotoolslinger

Well that's just terrible ;D If you can't tell it's not real, how can we critisize your model building skills :wub: :wub: :wub: :bow: :bow: :bow: :bow:
I amuse me.
Huge fan of noisy rodent.
Things learned from this site: don't tease wolverine.
Eddie's personal stalker.
Worshippers in Nannerland

Patrick H

great job HOG, A marvelous diorama with lots of intresting things around. love the way you've converted those figures, top notch.

:thumbsup: :thumbsup: :thumbsup: :thumbsup:
My webpage

The engines spit out fire, I'm pushed back in my chair
The pressure gives me thrills as we climb in the air

Ed S

BEAUTIFUL!!!

A really fine diorama HOG. :bow: :bow:

Ed
We don't just embrace insanity here.  We feel it up, french kiss it and then buy it a drink.

Eddie M.

Impressive to say the very least. Looks like a split second of history on display forever. Your work on the figures is incredible. Bravo Zulu!
    Eddie
Look behind you!

cthulhu77

Sometimes, I just stare at your work with an amazed expression on my face.  This one leaves me almost speechless.

Wow.

BlackOps

 :o :wub: :bow: This really does belong in a museum somewhere, incredible work and I love the figure conversions!
Jeff G.
Stumbling through life.

bluntie

Hog ,i cant come up with any new superlitives.   :bow:
my hovercraft is full of eels
