I heard that during the development of the YF-16, there was some evidence to suggest the deep-stall problem existed before the plane flew, but since there was conflicting information regarding wind-tunnel tests (due to the different size of the wind-tunnel test models) that either indicated a deep-stall would happen, and others that it wouldn't they pushed ahead assuming it was not a serious issue.

Now you're probably going to wonder how this goes into an alternative history post...

With the knowledge available at the time, was it possible for anyone to have been able to know that the deep-stall problem would occur on the actual aircraft (1:1 scale)?
That being said, I'd like to remind everybody in a manner reminiscent of the SNL bit on Julian Assange, that no matter how I die: It was murder (even if there was a suicide note or a video of me peacefully dying in my sleep); should I be framed for a criminal offense or disappear, you know to blame.

KJ_Lesnick

What was the Agile Falcon exactly...

I did some googling and I found it was an F-16 with an enlarged wing and revised control-systems.  I don't know what kind of revised control systems they were talking about (assuming it's not classified).

Is that the one where they were planning on putting some kind of aeroelastic flaps on the strake in order to increase instantaneous agility and cure deep-stall?  I do remember hearing something about a Falcon design like that.  It also was to have an enlarged wing to give the F-16C the wing-loading of the F-16A.


KJ Lesnick
That being said, I'd like to remind everybody in a manner reminiscent of the SNL bit on Julian Assange, that no matter how I die: It was murder (even if there was a suicide note or a video of me peacefully dying in my sleep); should I be framed for a criminal offense or disappear, you know to blame.

Sauragnmon

In all essence, the Agile Falcon became the F-2 - the Japanese bought the rights because they wanted the expanded payload capacity that comes with the expanded wing area.
Putty-fu, Scratch-jutsu and Bash-chi, the sacred martial arts of the What-If. Mastering them, is Ancient Chinese Secret.

Just your friendly neighbourhood Mad Scientist and Ship-whiffer.

Overkill? Nah, it's Insurance.  So are the 20" guns.

Gary F

  Agile Falcon was one offering to cure the growing weight of the F-16 and add additional weapons stations.  The main idea was to increase the wing area.  Ultimately, to save time, money, and developmental risks, the idea was shelved and they went with improved thrust engines as the primary way to offset weight growth of the plane.
  Better electronics helped reduce weight also, but then there was the tendency to add more stuff negating potential weight savings.
  CFT's sort of freed up the inboard wing station allowing more weapons carriage (another desire of some operators) but not everyone has bought the CFT's.
  As mentioned just above, the Mitsubishi F-2 is pretty much thought to be what Agile Falcon would have been, to a large extent ... the bigger wing, stretched fuselage, additional wing station.  However, the wing sweep was optimized for a different role (maritime strike/patrol) along with a different radar and different canopy setup, again for better safety operating in the new roles preferred operating altitudes.  Had the US/NATO Agile Falcon upgrade proceeded, it should have retained the original canopy and wing shape (just bigger).

regards,
Gary F

KJ_Lesnick

Gary F,

How much of a difference was there in wing-sweep from the F-16 and F-2?  Also, what differences were made to the LERX's on the F-2 over the F-16?  I can't make out any difference honestly


KJ Lesnick
That being said, I'd like to remind everybody in a manner reminiscent of the SNL bit on Julian Assange, that no matter how I die: It was murder (even if there was a suicide note or a video of me peacefully dying in my sleep); should I be framed for a criminal offense or disappear, you know to blame.

frinklemur

Quote from: Sauragnmon on September 18, 2008, 02:48:32 PM
Hmm, not a bad concept really... full control surface tail.  Makes me wonder why it hasn't been done before.


See the A3J / RA-5 Vigilante.  The single vertical tail was all moving for control, with no separate rudder.

ChernayaAkula

Quote from: KJ_Lesnick on August 21, 2009, 08:24:14 PM
How much of a difference was there in wing-sweep from the F-16 and F-2?  Also, what differences were made to the LERX's on the F-2 over the F-16?  I can't make out any difference honestly

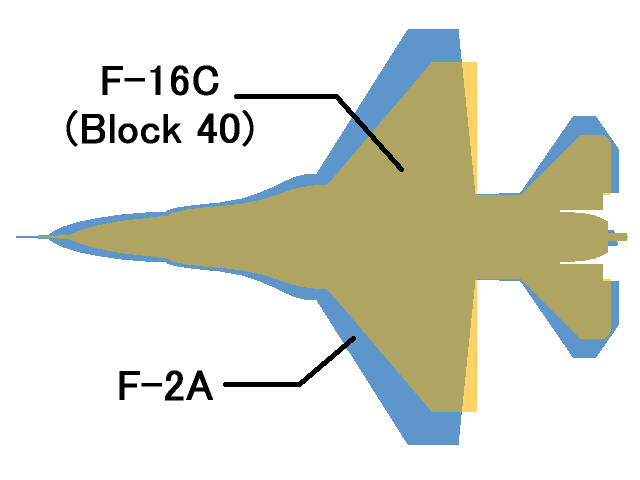

While I can't make any comment regarding the aerodynamic aspects, this diagram may be of help regarding the lay-out:
