avatar_GTX

SPAAS Thread

Started by GTX, July 20, 2008, 08:30:33 AM

Previous topic - Next topic

GTX

Quote from: Cybermax on March 25, 2010, 04:25:13 PM
You wouldn't happen to have a slightly larger version of the profile view here. I'm curious as to know what the dimensions pictured are.


Sorry - no higher resolution.

Regards,

Greg
All hail the God of Frustration!!!

GTX

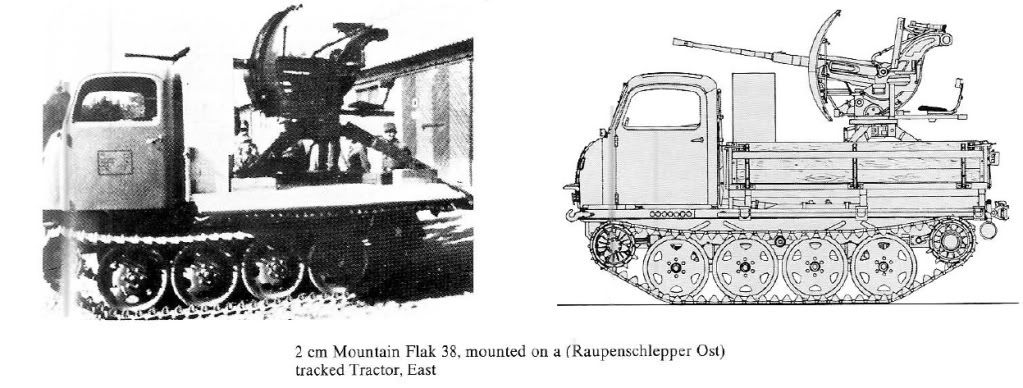

A cute little thing:



Regards,

Greg
All hail the God of Frustration!!!

ChernayaAkula

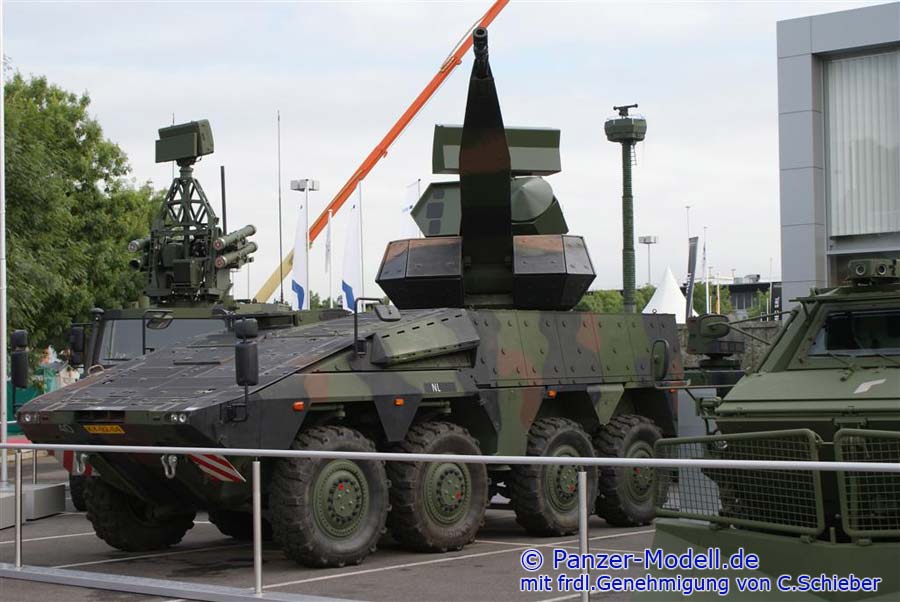

Real-life whiffers at work:

Skyshield + Boxer = Skyranger



Pic from PANZER-MODELL.DE.
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

apophenia

Skyranger could also be mounted on the Piranha/LAV III. Control centre was in a separate LAV (ditto missiles).
http://www.deagel.com/library/Skyranger-mounted-on-Piranha-III-8x8_m02007041500002.aspx

dy031101

Another Skyranger What-if: Pars/GPV
To the individual soldiers, *everything* is a frontal assault!

====================

Current Hobby Priority...... Sigh......

To-do list here

Just call me Ray

Since the Skyshield system is essentially what the Gepard is, is this offered as a replacement?
It's a crappy self-made pic of a Lockheed Unmanned Combat Armed Rotorcraft (UCAR), BTW
Even Saddam realized the hazard of airplanes, and was discovered hiding in a bunker. - Skydrol from Airliners.net

ChernayaAkula

The way I understand it, Skyshield started it's life as a stationary air defence system, with the ability to intercept incoming mortar rounds. The weapon system itself is unmanned. Sort of like a ground-based Phalanx. So these vehicle-borne systems seem like spin-offs. Systems you'd acquire if you intend to use the stationary unit as well (cutting down on logistics) or if your army doesn't have a system like Gepard. I reckon the turrets carried on vehicles will also be unmanned, with the crew sitting in the hull of the vehicle.
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

Just call me Ray

Skyshield and Gepard use the same basic weapon systems, and IIRC, share much in the way of sensors and fire control as well.
It's a crappy self-made pic of a Lockheed Unmanned Combat Armed Rotorcraft (UCAR), BTW
Even Saddam realized the hazard of airplanes, and was discovered hiding in a bunker. - Skydrol from Airliners.net

apophenia

Quote from: Just call me Ray on April 30, 2010, 10:22:12 AM
Skyshield and Gepard use the same basic weapon systems, and IIRC, share much in the way of sensors and fire control as well.

Not really. They're totally different systems (despite the loose Oerlikon armament connection).

Skyshield began with Oerlikon Contraves but uses the new 35/1000 gub based on the Millenium 35mm Naval Revolver Gun System (the gun sometimes called a KDG or GDM-008). Skyguard is the radar/FCU system (usually upgraded Skyguard III or Skyshield 35 FCU).

Gepard was a KWM project using an EADS FCU, Siemens radar, and Oerlikon-Buhrle's 1950s vintage 35mm KDA guns (based on the paired GDF-003 guns matched with earlier Skyguard systems). The old KDA guns have about half the RPM of the revolver gun (which can therfore make better use of the new 35x228mm AHEAD rounds).

rickshaw

Quote from: GTX on March 26, 2010, 01:16:02 PM
A cute little thing:



Regards,

Greg

I think you'll find that isn't a FlaK38 but rather a GebFlaK38 (the mountain version of the FlaK30).  The tripod is wrong for a FlaK38.
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

GTX

Quote from: rickshaw on April 30, 2010, 08:46:18 PM
Quote from: GTX on March 26, 2010, 01:16:02 PM
A cute little thing:



Regards,

Greg

I think you'll find that isn't a FlaK38 but rather a GebFlaK38 (the mountain version of the FlaK30).  The tripod is wrong for a FlaK38.

Well, that's what my source called!

Greg
All hail the God of Frustration!!!

ChernayaAkula

Quote from: rickshaw on April 30, 2010, 08:46:18 PM
I think you'll find that isn't a FlaK38 but rather a GebFlaK38 (the mountain version of the FlaK30).  The tripod is wrong for a FlaK38.

Err, the annotation says "Mountain Flak".  :huh: The "Geb" in GebFlaK is for "Gebirgs", Gebirge being German for mountain.
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

Just call me Ray

Quote from: apophenia on April 30, 2010, 05:12:38 PM
Quote from: Just call me Ray on April 30, 2010, 10:22:12 AM
Skyshield and Gepard use the same basic weapon systems, and IIRC, share much in the way of sensors and fire control as well.

Not really. They're totally different systems (despite the loose Oerlikon armament connection).

Skyshield began with Oerlikon Contraves but uses the new 35/1000 gub based on the Millenium 35mm Naval Revolver Gun System (the gun sometimes called a KDG or GDM-008). Skyguard is the radar/FCU system (usually upgraded Skyguard III or Skyshield 35 FCU).

Gepard was a KWM project using an EADS FCU, Siemens radar, and Oerlikon-Buhrle's 1950s vintage 35mm KDA guns (based on the paired GDF-003 guns matched with earlier Skyguard systems). The old KDA guns have about half the RPM of the revolver gun (which can therfore make better use of the new 35x228mm AHEAD rounds).

Ah.
It's a crappy self-made pic of a Lockheed Unmanned Combat Armed Rotorcraft (UCAR), BTW
Even Saddam realized the hazard of airplanes, and was discovered hiding in a bunker. - Skydrol from Airliners.net

rickshaw

Quote from: ChernayaAkula on May 01, 2010, 09:25:41 AM
Quote from: rickshaw on April 30, 2010, 08:46:18 PM
I think you'll find that isn't a FlaK38 but rather a GebFlaK38 (the mountain version of the FlaK30).  The tripod is wrong for a FlaK38.

Err, the annotation says "Mountain Flak".  :huh: The "Geb" in GebFlaK is for "Gebirgs", Gebirge being German for mountain.

Put it down to either a "Senior's Moment" or the thing growing in my head which occasionally makes me read things wrong and type them gonwr.   :rolleyes:
How to reduce carbon emissions - Tip #1 - Walk to the Bar for drinks.

tahsin

Found these in the harddisk . They are one Bison SPG on Pzkw38(t) chassis mounting a 30 mm gun , double 55mm equipped Panther , double 88 mounting Alligator ( a supposedly 145 ton , 6 men , 285 mm armour , 1500 hp  40km/h project for a universal anti tank/aircraft mission)  and the same turret on a Maus.
