1:35 Aussie Mi-24 Hind

Started by GrubbyFingers, July 09, 2009, 06:22:25 PM

Previous topic - Next topic

GrubbyFingers

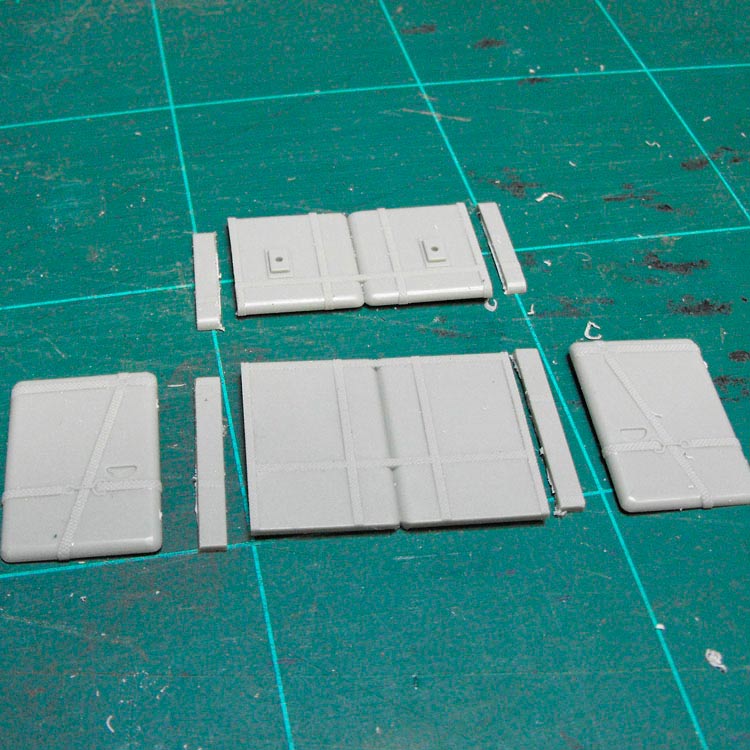

The straps on the tank proved to be ideal guides to cut down the tank. show is the tank top and front with the edges removed.

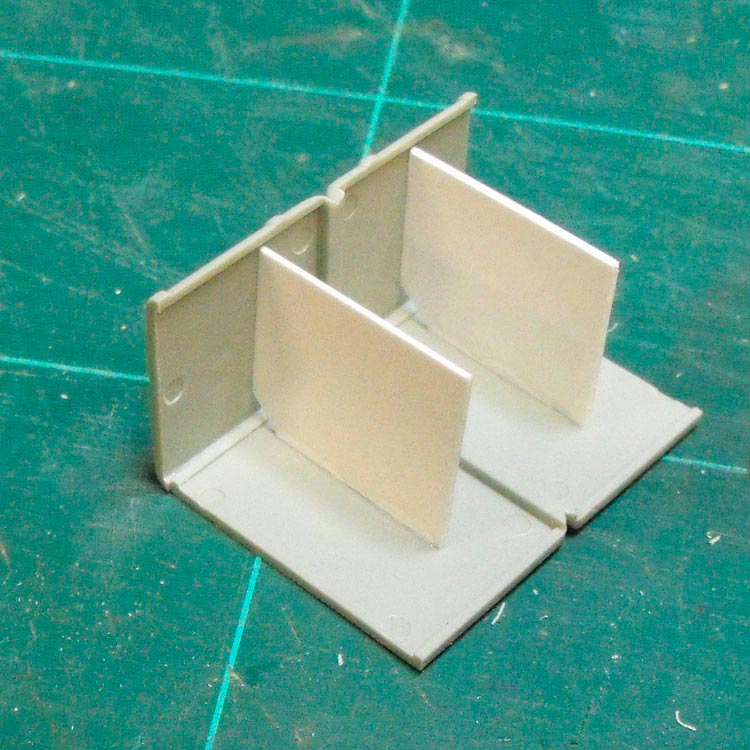

The tank top and front were glued together with some braces from scrap sheet styrene to ensure they sat at 90°.



The kit cabin floor is simply flat plastic and looks rather dull. I thought about different ways to introduce some texture without adding too much thickness. I dug out a floor from an unbuilt Tamiya M113 APC kit. The size and texture were just what I was looking for, but simply glueing this over the original floor would add about 10 scale cm to the height of the floor. I could cut the M113 part into the Mi-24 floor, replacing a section of the kit floor, but then I lose the M113 interior. Then I thought of making a rubbing of the M113 floor using that wonderful thin aluminium sheet you get in the top of drink powder tins like Milo or coffee.

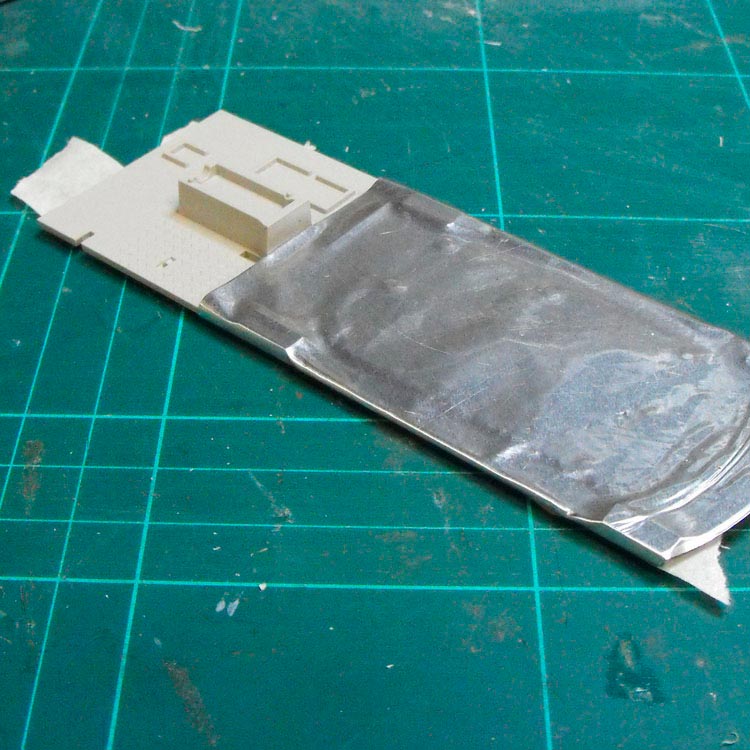

One of these sheets was stretched over the donor floor part and secured at the back with masking tape.

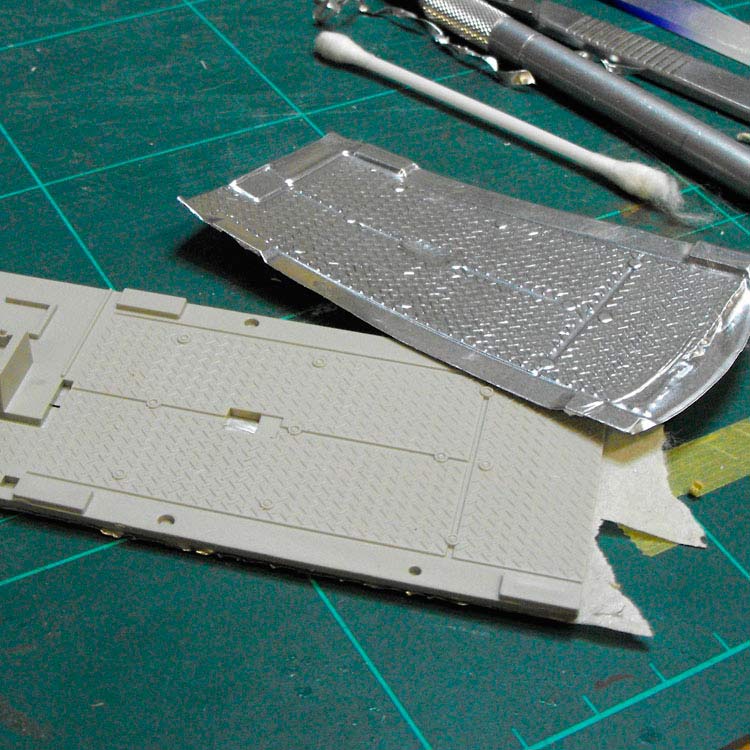

The aluminium was then rubbed down over the surface detail of the M113 floor with a cotton budto transfer the detail onto the metal.



I then used a toothpick to bring up more detail and push the metal right into the recesses and crevices.



Once I was happy I'd got most of the detail I wanted, I trimmed the aluminium away from the donor floor.



This metal relief was then glued to the helicopter floor and we ended up with a helo floor now with texture. Here it is with the trimmed down fuel tank in place on the floor. Notice that I have reversed the rear bulkhead so the moulded-on detail doesn't interfere with the positioning of the fuel tank. The bulkhead will be all but invisible behind the tank, so the detail won't be missed. You can see here I have bent up a rectangle of scale expanded mesh to act as a walkway in the avionics bay.

Ian the Kiwi Herder

"When the Carpet Monster tells you it's full....
....it's time to tidy the workbench"

Confuscious (maybe)

nev

Between almost-true and completely-crazy, there is a rainbow of nice shades - Tophe


Sales of Airfix kits plummeted in the 1980s, and GCSEs had to be made easier as a result - James May

Captain Canada

Very cool.....I'll have to try that someday !

Welcome to site, and looking forward to seeing more of this build !

:drink:
CANADA KICKS arse !!!!

Long Live the Commonwealth !!!
Vive les Canadiens !
Where's my beer ?

Weaver

Nice trick!  :thumbsup:

Don't grip the floor too hard once the foil's stuck down or you'll be crying though....
"Things need not have happened to be true. Tales and dreams are the shadow-truths that will endure when mere facts are dust and ashes, and forgot."
 - Sandman: A Midsummer Night's Dream, by Neil Gaiman

"I dunno, I'm making this up as I go."
 - Indiana Jones

upnorth

Wow! definitely a nice trick to file away for future reference!
My Blogs:

Pickled Wings: http://pickledwings.com/

Beyond Prague: http://beyondprague.net/

GTX

Ditto earlier comments re the metal floor!

Regards,

Greg
All hail the God of Frustration!!!

BlackOps

Nicely Done!  :thumbsup:  Looking forward to seeing more of this build.
Jeff G.
Stumbling through life.

Sisko


Wow that is nice stuff!

And welcome aboard!
Get this Cheese to sick bay!

John Howling Mouse

Nice technique.  I look forward to "borrowing" it.   :thumbsup:
Styrene in my blood and an impressive void in my cranium.

GrubbyFingers



The straps on the tank proved to be ideal guides to cut down the tank. Shown is the tank top and front with the edges removed. The tank will now fit snugly inside the fuselage. It even actually fits through the side door.



The tank top and front were glued together with some braces from scrap sheet styrene to ensure they sat at 90°.



The tank was then sprayed with a dark matt grey.

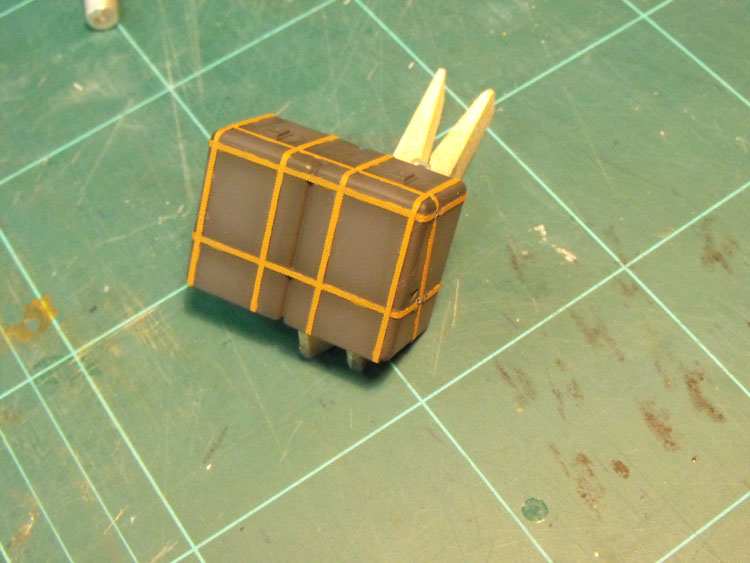

Pre-shading was added in the form of dark airbrushed stripes of black around the strapping.



And the strapping itself was picked out by hand with a nice contrasting brown colour.

cthulhu77

Excellent work on my favourite chopter !!   :cheers:

Captain Canada

CANADA KICKS arse !!!!

Long Live the Commonwealth !!!
Vive les Canadiens !
Where's my beer ?

Geoff

Welcome to the madhouse. I like the build, great idea!

My 2cents worth would be to put one Hellfire on each of the standard wingtip points the Russians have a habit of overengineering everything, and this leaves the other pylons free.

You were going to name it "kangaroo", the Russians nicknamed  them "Crocodile" (Krokodil)

GeoffP

GrubbyFingers

1:35 Aussie Mi-24K "Kangaroo"

I was fortunate enough to be given this mammoth kit as a leaving present from my last job. I can only think they were really happy to see me go! I've been researching colour and marking schemes since. I found many schemes, but none that I found attractive. I'm a visual kinda guy and I knew I wouldn't be able to do the kit, and the thought behind the present, justice if my heart wasn't in it.

Then the final flight of the Australian Army Hueys was announced and it got me thinking: What if the Tiger hadn't been selected as a replacement, but we bought some Mi-24s instead? Bingo. All the pieces fell into place and the decision was made. I'd build the Mi-24 as a second-generation Bushranger gunship. The colour scheme would be taken directly from the Army Black Hawk and the weapons and some of the systems would be Westernised. A name for this beast? Looking at the shape, it just had to be "Kangaroo".

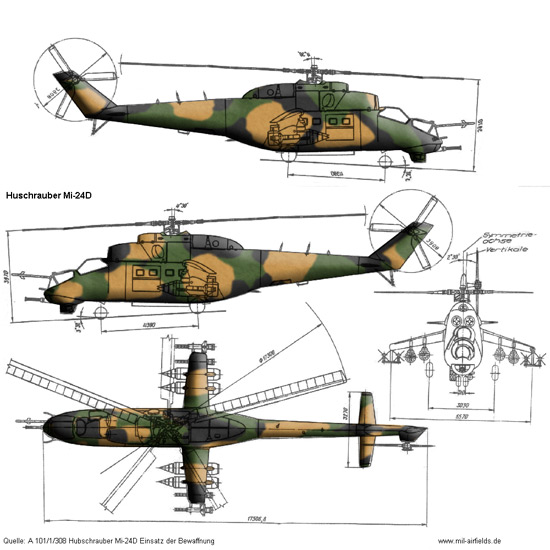

Mi-24K "Kangaroo" colour scheme

The Kit



I'm sure most of you would be aware of the existence of this kit. It caused quite a stir when it was released in 2005 and has proven very popular with many examples appearing in model comps and website builds.

Cybermodeler's review can be found here: http://www.cybermodeler.com/hobby/kits/tru/kit_tru_5103.shtml

There are pics of the sprues etc there, so I won't reproduce them here.

There's also a build thread in the Large Scale Planes forum where one guy has really gone to town to correct the small errors in the kit's shape. More power to him! You can see his work here: http://forum.largescaleplanes.com/index.php?showtopic=22818&hl=hind.

My point of view is that the kit is close enough to keep me VERY happy, and seeing as I'm doing a "What-if?" build anyway, it hardly seems relevant.

Modifications

So, time to raid the spares box and see what I have lying around to Westernise this Rhino. The R.A.A.F/Army. Bushranger Huey gunships had seven-tube rocket pods and 7.62mm miniguns on the racks and two pairs of M60s on pintle mounts. In keeping with the spirit of the original, I'm thinking guns and rockets as primary weapons are the go. A pair of floor-mounted Miniguns poking out the doors would be nice. I can get these from the Dragon UH-1N kit, along with their ammo bin.

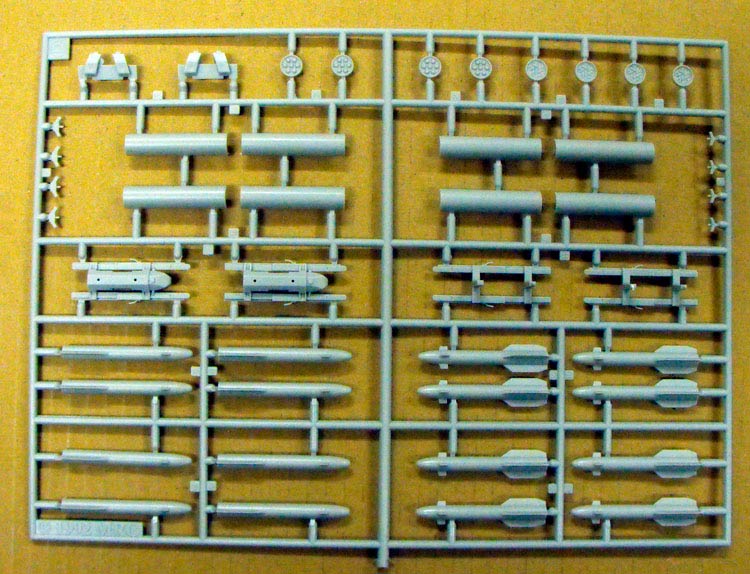

Under the wings, a pair of 19 tube launchers from the Black Hawk DAP kit and the canon pods from the Hind should work well. For the wingtips, what could be better than a full complement of four Hellfires under each tip. These are from the MRC AH-1W.



For defense against air attack a pair of Sidewinders mounted over the wings, or on the outer ends, will be added too. I can scrounge these from a Revell 1:32 Phantom II I have in Pandora's Box (the Stash cupboard).

Under the nose, replacing the Russian gun with a Bushmaster chain gun would seem most appropriate. I may have to scratch that one up, based on the Tiger unit. Or see if I can get one from an Apache. An internal fuel tank, ala DAP Black Hawk, would be good too. That particular part is way too wide for the Hind, so I'll use something else.

The list of intended mods includes:
- Refuelling Probe from DAP Black Hawk
- Internal fuel tank in cabin
- Miniguns firing out cabin doors
- 14-tube rocket launchers, cannon pods, Hellfire missiles and Sidewinders on, under and around the wings
- Bushmaster chain gun under nose
- IR beacon from AH-1W
- Aerial suite as per the ADF Tigers
- Other bits and pieces like steps, tie-downs, Black Hawk seats, cabin interior walls etc.

The Build Begins

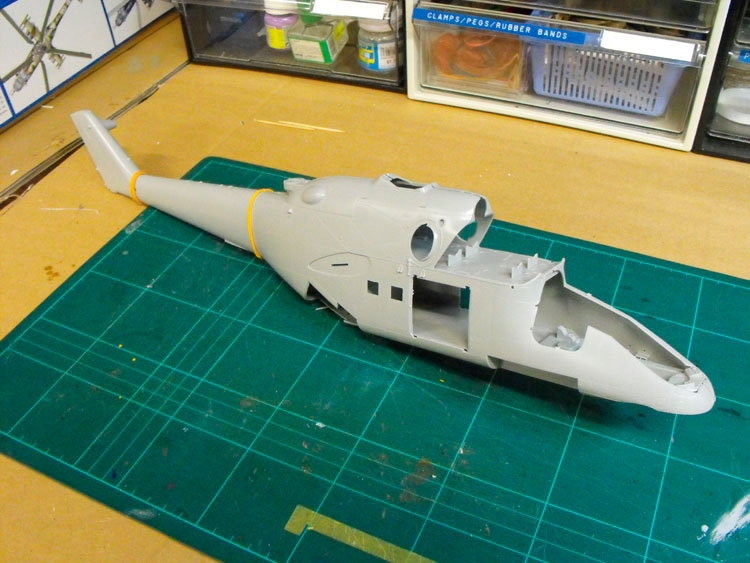

First thing is to plan where all the different new bits are going to fit in the interior. So the fuselage and main interior bits are dry assembled so the real planning can begin (Has horrible thought: What if none of this stuff actually fits?) ... We shall see!

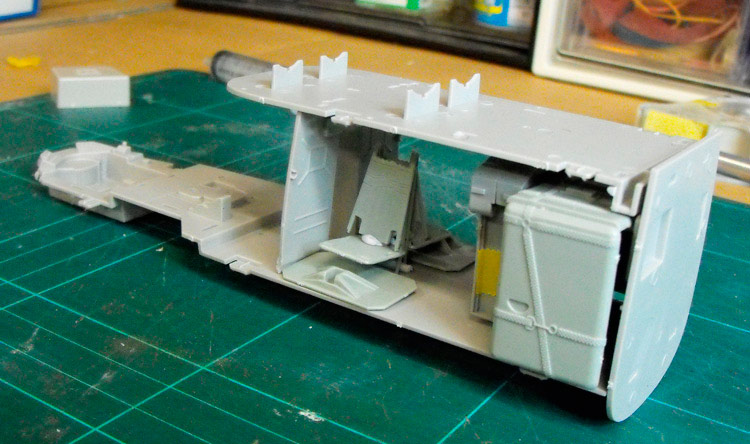

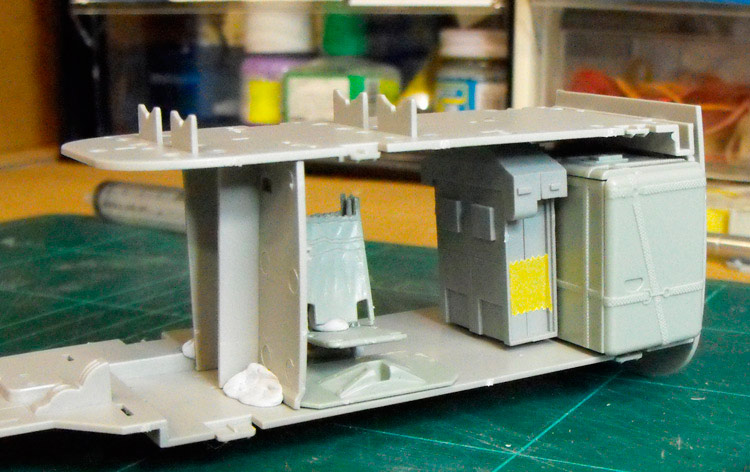

I've snipped off a few of the critical interior parts and put them together in a bit of a dry run to see if the whole thing will actually fit.

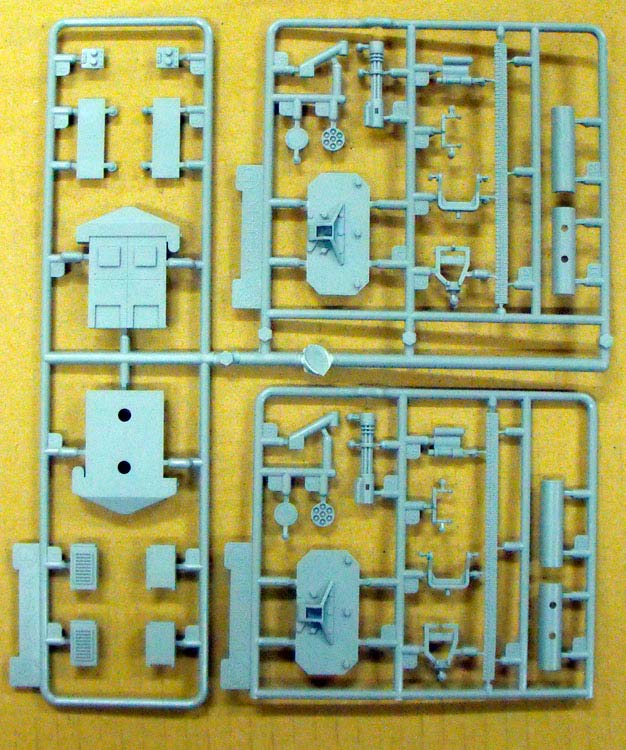

It looks like I can shorten the Blackhawk fuel tank back to the outside straps and that should then fit within the fuselage. That's good. The ammo bins sit nicely in front of the tank, that's good too. I can see the ammo belts being run along the ceiling and dropping down to the guns. I found the minigun base plates from the Dragon UH-1N were very large, and that the Black Hawk had similar mounts, but considerably smaller.

With space at a premium, the smaller ones have been dropped in with some Black Hawk seats behind. It is all looking a bit squishy. I may need to shorten the squabs on the gunner's seats. I'll decide that once the guns are positioned. It appears that sometimes the gunners didn't have seats and stood or crouched behind the miniguns. The miniguns and seats may need to be slid backward so they match up with the door openings. This would also facilitate access to the avionics area.

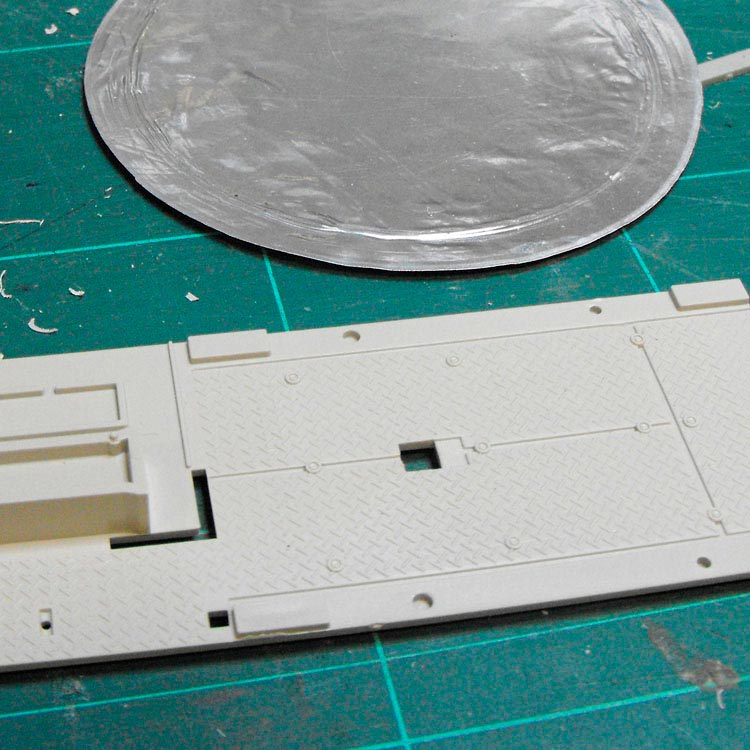

The kit cabin floor is simply flat plastic and looks rather dull. I thought about different ways to introduce some texture without adding too much thickness. I dug out a floor from an unbuilt Tamiya M113 APC kit. The size and texture were just what I was looking for, but simply glueing this over the original floor would add about 10 scale cm to the height of the floor. I could cut the M113 part into the Mi-24 floor, replacing a section of the kit floor, but then I lose the M113 interior. Then I thought of making a rubbing of the M113 floor using that wonderful thin aluminium sheet you get in the top of drink powder tins like Milo or coffee.

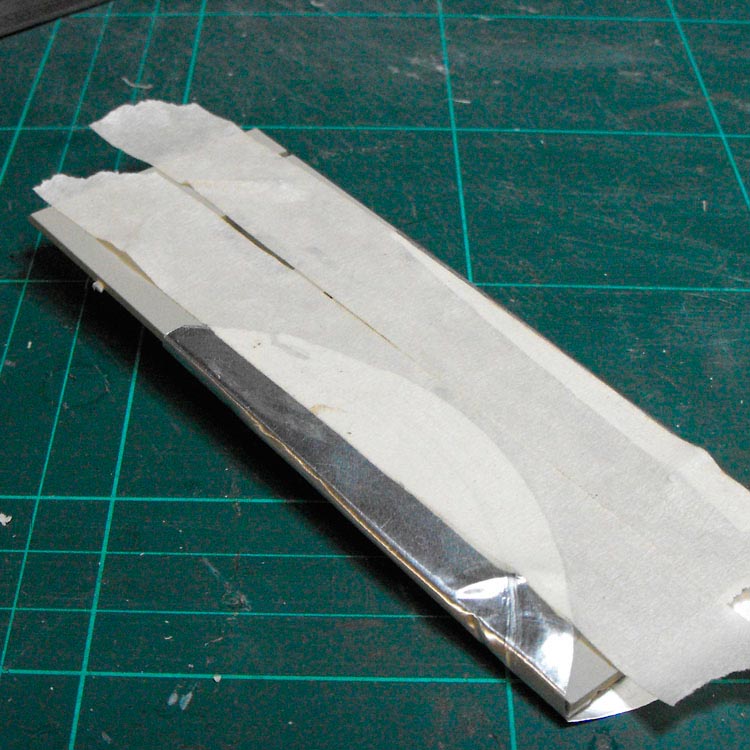

One of these sheets was stretched over the donor floor part and secured at the back with masking tape.

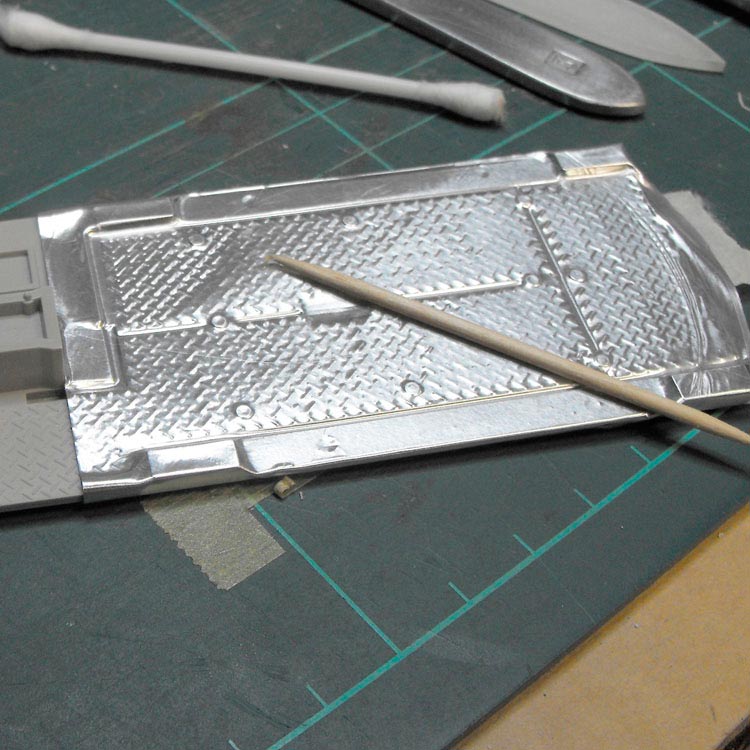

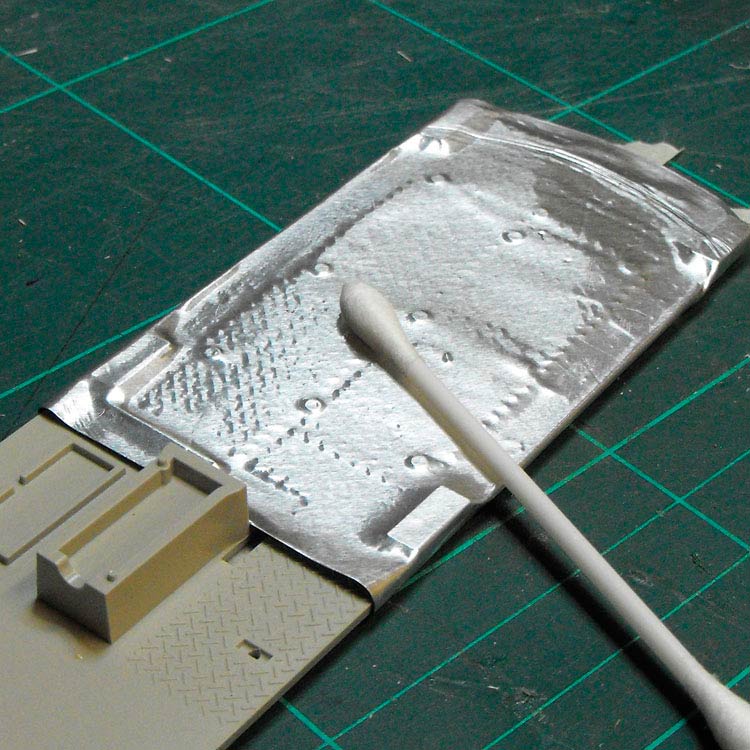

The aluminium was then rubbed down over the surface detail of the M113 floor with a cotton bud to transfer the detail onto the metal.



I then used a toothpick to bring up more detail and push the metal right into the recesses and crevices.



Once I was happy I'd got most of the detail I wanted, I trimmed the aluminium away from the donor floor.

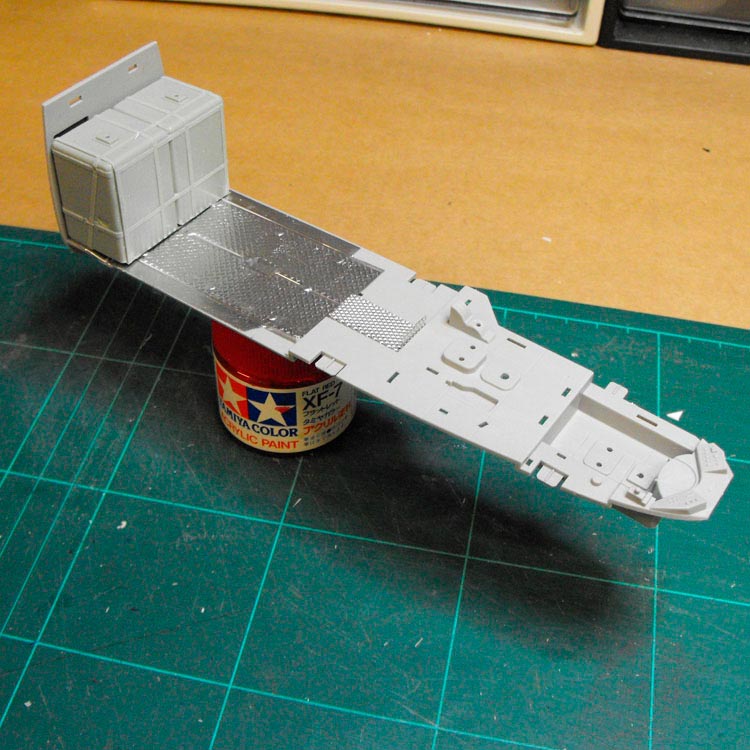

This metal relief was then glued to the helicopter floor and we ended up with a helo floor now with texture. Here it is with the trimmed down fuel tank in place on the floor. Notice that I have reversed the rear bulkhead so the moulded-on detail doesn't interfere with the positioning of the fuel tank. The bulkhead will be all but invisible behind the tank, so the detail won't be missed. You can see here I have bent up a rectangle of scale expanded mesh to act as a walkway in the avionics bay.

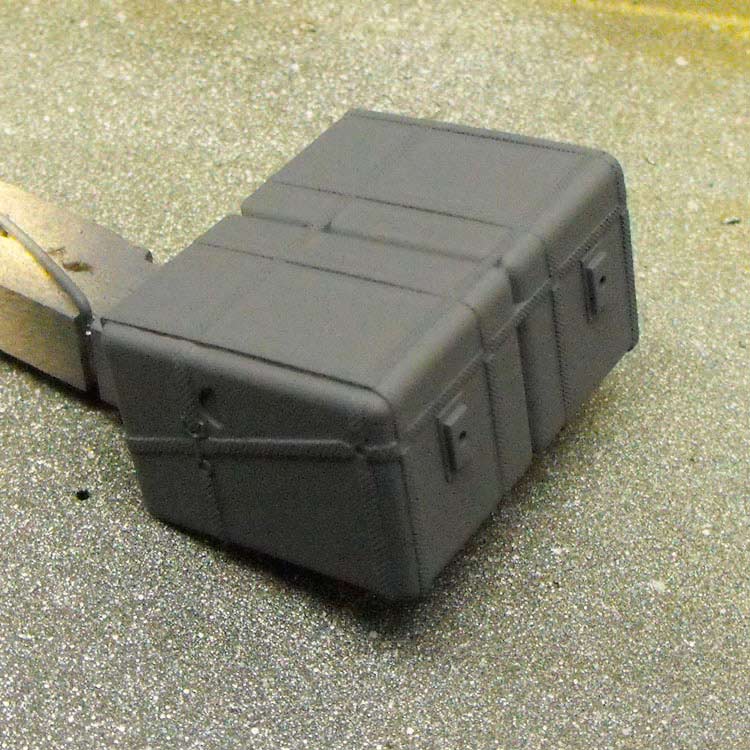

The straps on the tank proved to be ideal guides to cut down the tank. Shown is the tank top and front with the edges removed. The tank will now fit snugly inside the fuselage. It even actually fits through the side door.



The tank top and front were glued together with some braces from scrap sheet styrene to ensure they sat at 90°.

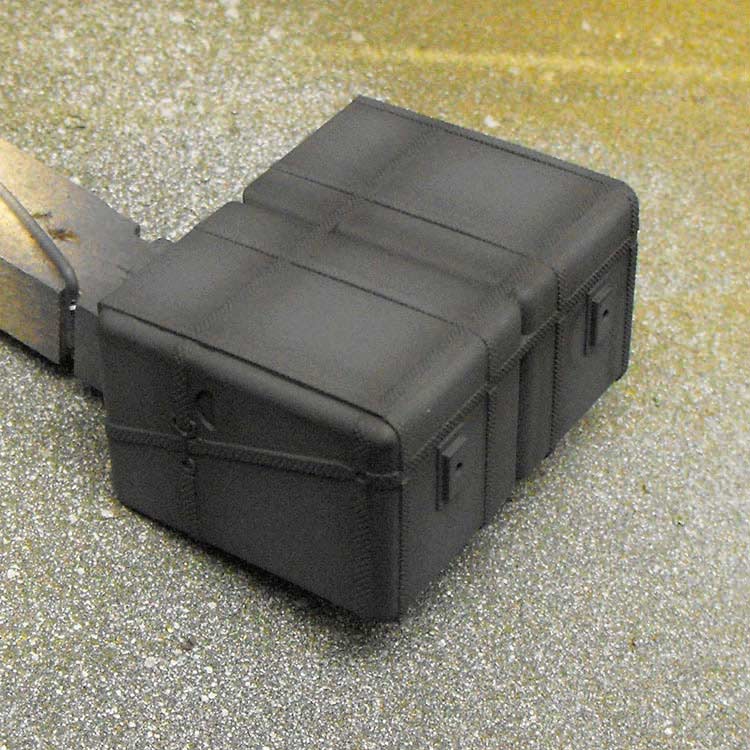

The tank was then sprayed with a dark matt grey.

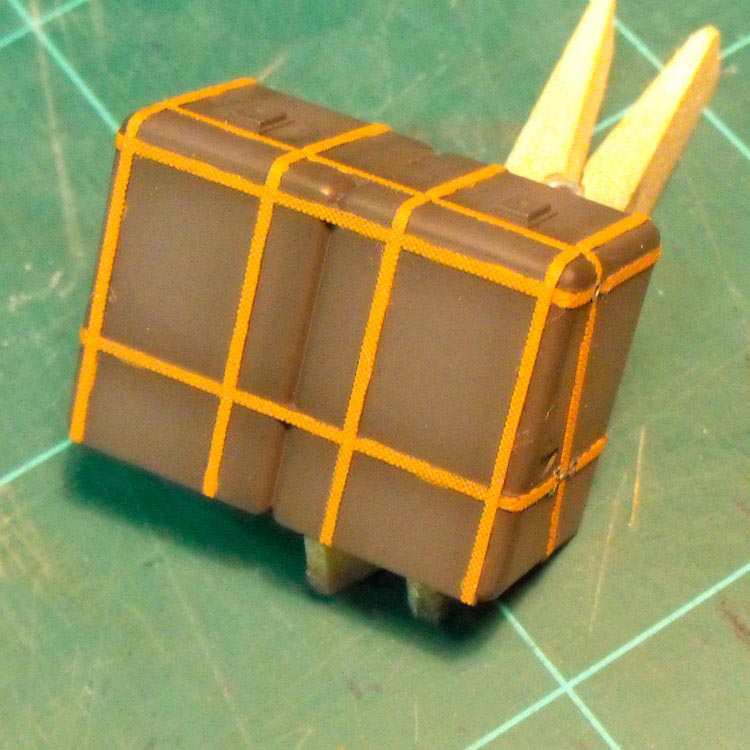

Pre-shading was added in the form of dark airbrushed stripes of black
around the strapping.



And the strapping itself was picked out by hand with a nice contrasting brown colour.

At this point in the build a three month break occurred while we moved house and got Christmas out of the way. I have now finally set up a dedicated space for modelling and I can get a fix whenever I want!!  Bliss!!

Anyhow ... back to the build. There is a large gap between the cockpit and the cabin that is supposed to be an avionics bay, but Trumpeter have left it empty even though you can see it from either end. Who knows. So I decided to fill it in with something that might be loosely interpreted as banks of avionics.

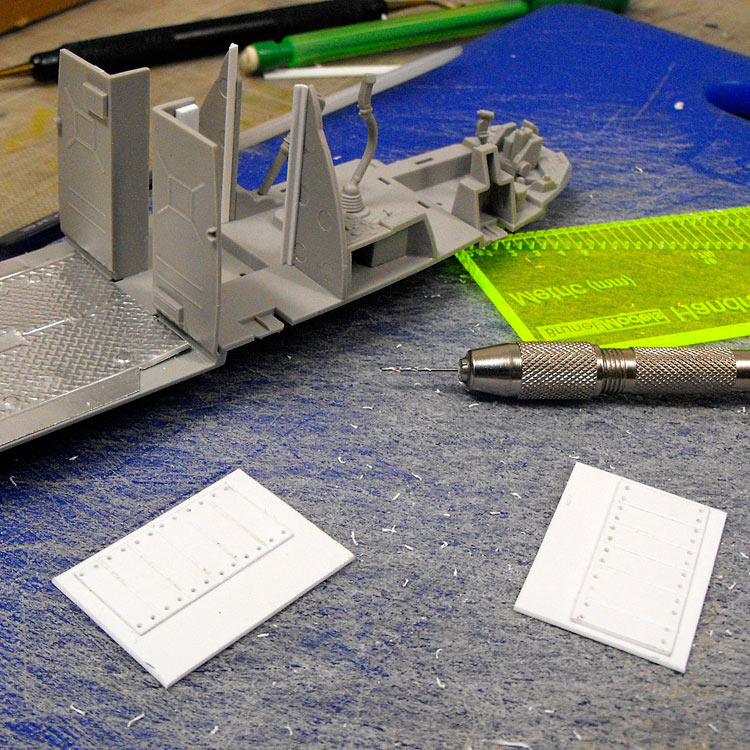

Bits of plastic card were cut to shape, scored to make separate panels and drilled for handles.

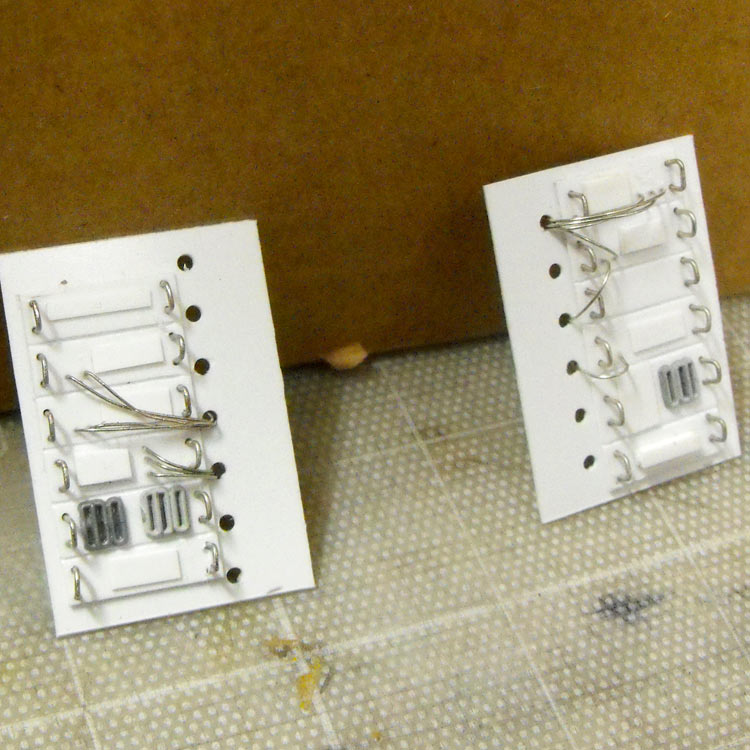

D-handles were bent up out of fuse wire and a few extra squares and leads and things added for interest.

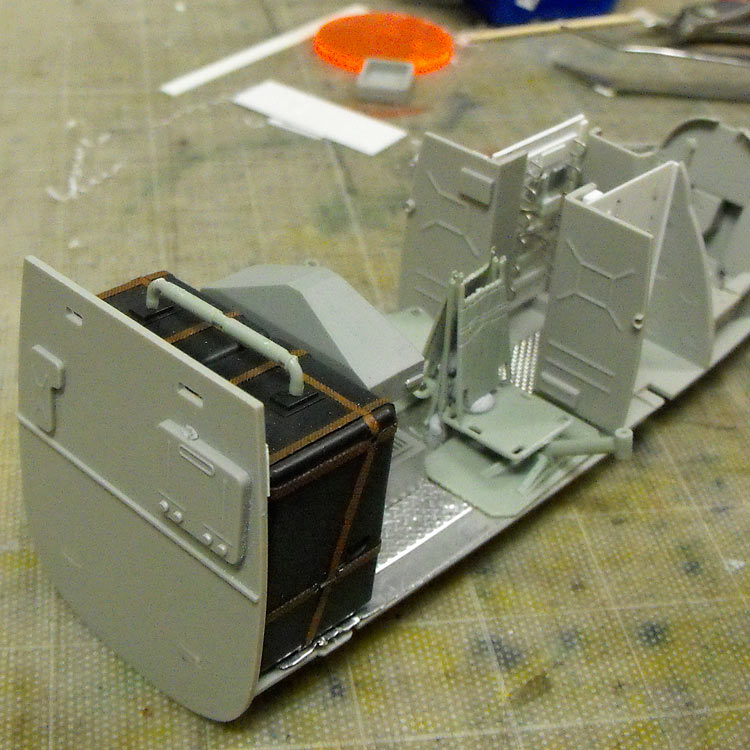

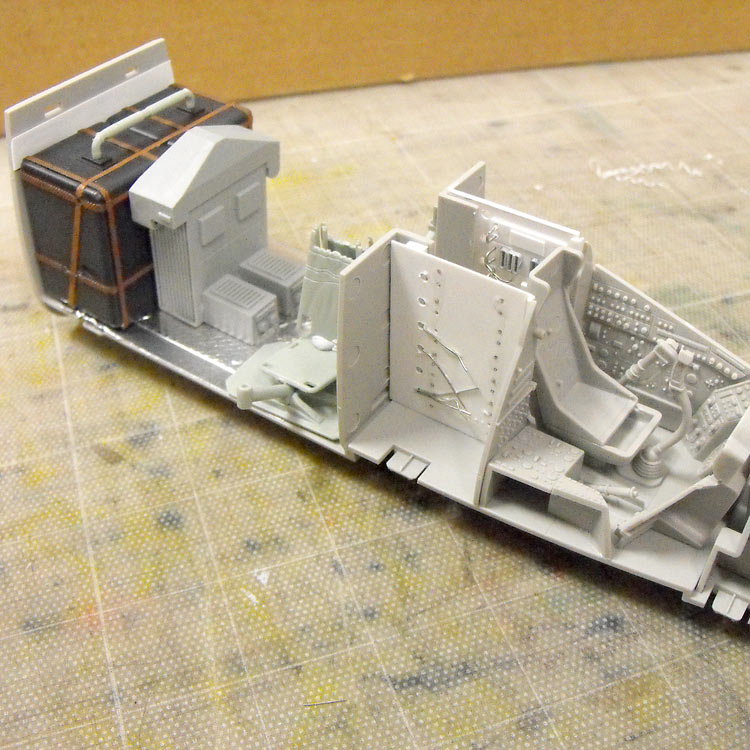

After glueing together a fair bit of the cockpit, I dropped everything together in a dry run to see how it was all coming together prior to painting.



There's not much space left once the fuel tank, ammo, guns and seats are in place!

Next job: Painting the cockpit and cabin.
