Haven't seen one. Then again, I doubt we'll see yours either

[Gondor]

Did anyone build an AEW version, as I have acquired the AeroClub Shackleton MR2/AEW conversion kit?

Where would you put the radar? Consider the fact that this is a WWII design so nothing to far fetched such as a rotating dome/disc or Synthetic Aperture Radar would fit the time period and the B-24 family sat very low to the ground.
These would be good reasons why no one has build an AEW version so far.

Gondor

[McColm]

A few of the B-17s and B-29s were converted to AEW Picket duty by the USNavy. Some of them had the radar dome fitted above the cockpit whilst the majority carried them in the weapons/bomb bay.
Whiffers work in mysterious ways to get their builds noticed.

[jcf]

Did anyone build an AEW version, as I have acquired the AeroClub Shackleton MR2/AEW conversion kit?

Where would you put the radar? Consider the fact that this is a WWII design so nothing to far fetched such as a rotating dome/disc ...

... or perhaps just a rotaitng bar like used on a Wellington radar test aircraft?

[sandiego89]

Or like the dorsal radar on the EC-121's: the AN/APS-45 height finder radar- not as big a dish as the belly mounted air search radar- but shows you can have a dorsal fit.

[JayBee]

Like this on a B-29.

https://commons.wikimedia.org/wiki/File:Boeing_B-29_AEW_1951.jpg

[McColm]

Yes that's right

[jcf]

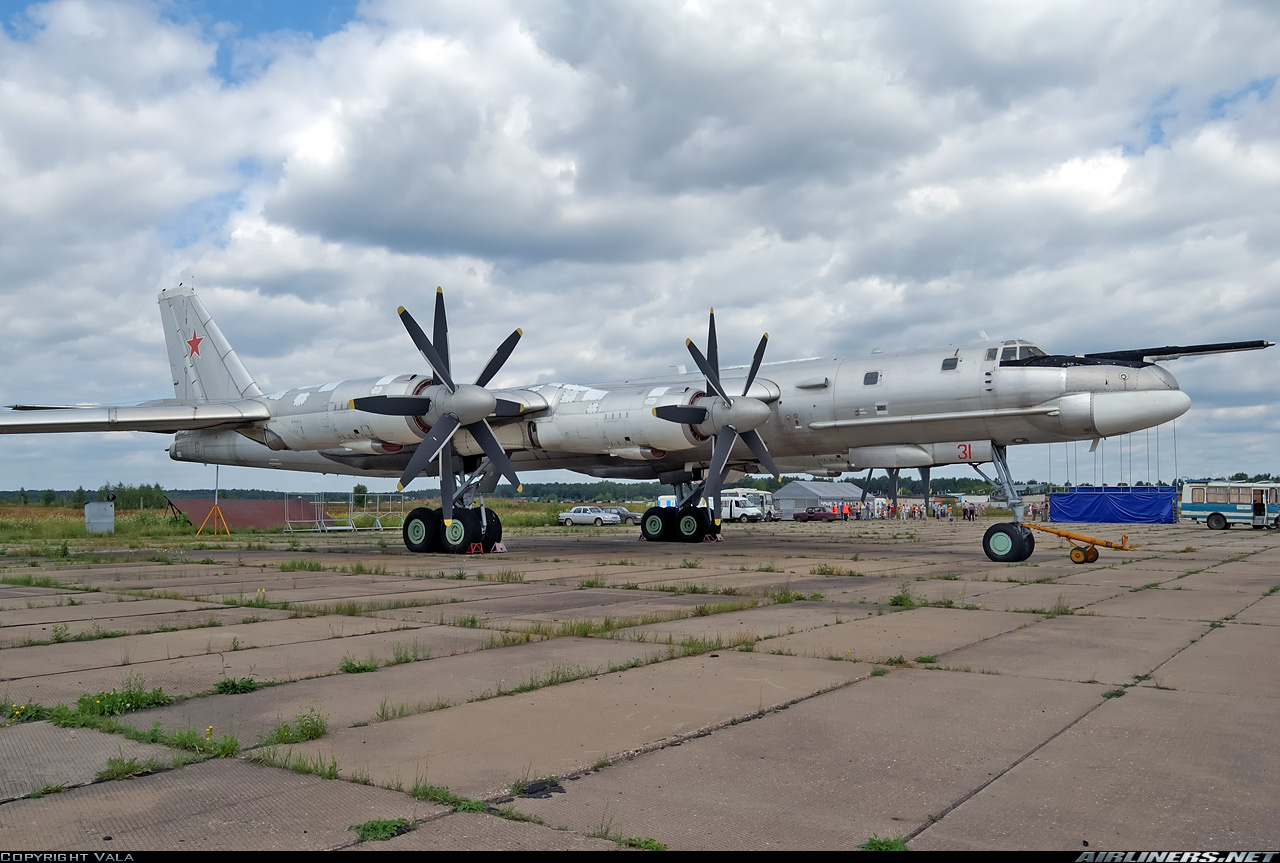

Chin-mounted like on the Tu-95K would be the obvious location for a B-24.

[PR19_Kit]

It'd need to be a very flat radome, the B-24's nose gear is about 1/10th the height of the Tu-95's.

[zenrat]

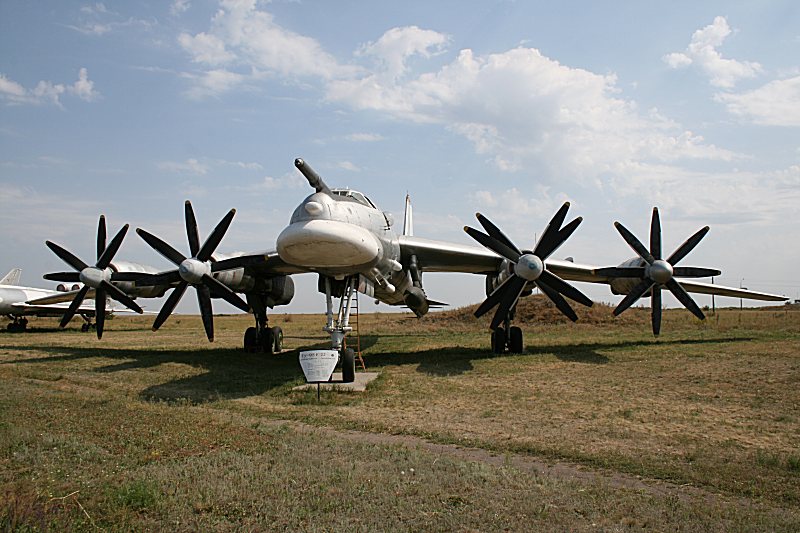

Chin-mounted like on the Tu-95K would be the obvious location for a B-24.

Good pic Jon.  It makes the Bear look weirdly stalky and gangly.  Sort of like a marionette dragon.

[jcf]

It'd need to be a very flat radome, the B-24's nose gear is about 1/10th the height of the Tu-95's.

It wouldn't need to be proportionally any flatter in relation to the B-24 airframe than it is to the Tu-95 airframe.

[PR19_Kit]

It'd need to be a very flat radome, the B-24's nose gear is about 1/10th the height of the Tu-95's.

It wouldn't need to be proportionally any flatter in relation to the B-24 airframe than it is to the Tu-95 airframe.

True, but wouldn't that limit its effectiveness due to the small size of the antenna?

[Gondor]

The Tu-95 also uses its radar to search for ships so only uses the front hemisphere i.e. the direction it's travelling in, for AEW you need all around coverage.

Gondor

[McColm]

Thanks,
I'll try the Rotodome from the E-2 Hawkeye or use the large radome from the EC-121 Warning Star placed on a platform similar to the E-1B.

[jcf]

The Tu-95 also uses its radar to search for ships so only uses the front hemisphere i.e. the direction it's travelling in, for AEW you need all around coverage.

Gondor

Second similar radome mounted in the tail position. Nimrod AEW.3's grand-daddy.
