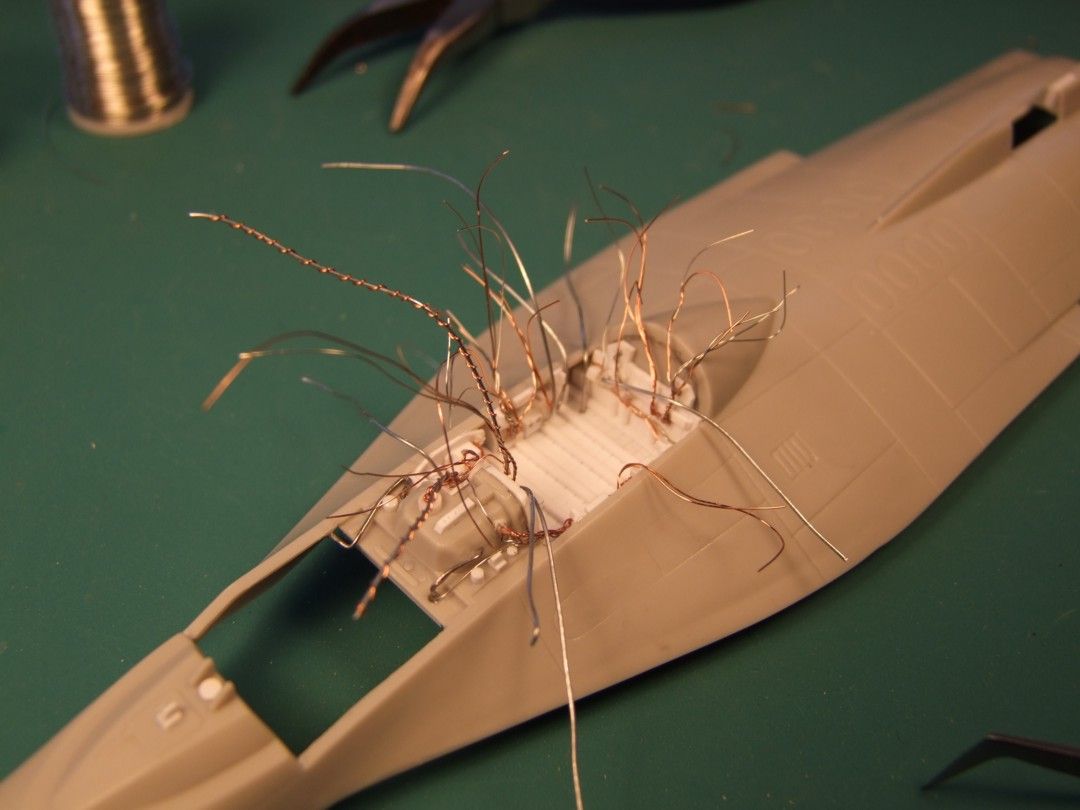

Thought the wiring looked nuts before? Check it out with the boxes in place. Only dilemma now is that I'm not sure in what order to assemble versus paint things.
Plan was to spray primer in the open bay after wiring was in, otherwise the primer would impede the glue. Now that the wires are in place, spraying everything now will
cover the wires, making them not work well with CA glue. Yet, I really can't spray anything after it's all together as I wouldn't be able to get into half the nooks and crannies.

Not sure what to do....suggestions, Mr. Worf?

Alvis 3.14159 · January 09, 2011, 04:16:36 PM

Where's Samuel L. Jackson when you need him?
"I've had it with all theses #$@&! snakes in this &#@%! plane!"

Looking good so far...can't wait to see this one done

Alvis Pi

Captain Canada · January 09, 2011, 04:19:25 PM

Woah !

John Howling Mouse · January 09, 2011, 08:02:00 PM

I share this with you as only fellow modelers would know just how nerve-wracking and difficult doing something like engraving a panel lip and drilling this many .080" holes would be, especially when the plastic is attached to all that scratchbuilt junk in the aft avionics bay.

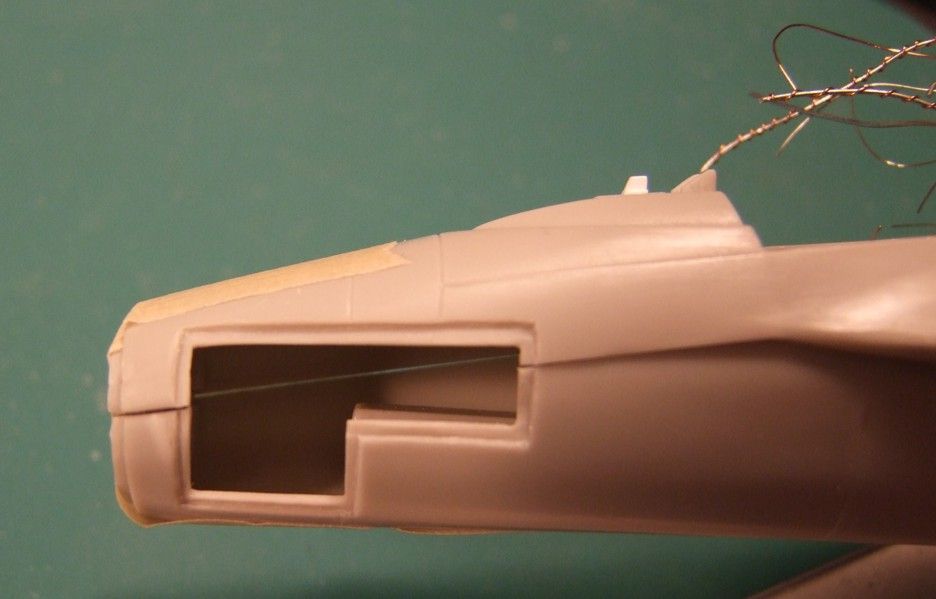

The lip, engraved with a combination of Dremels, files and blades:

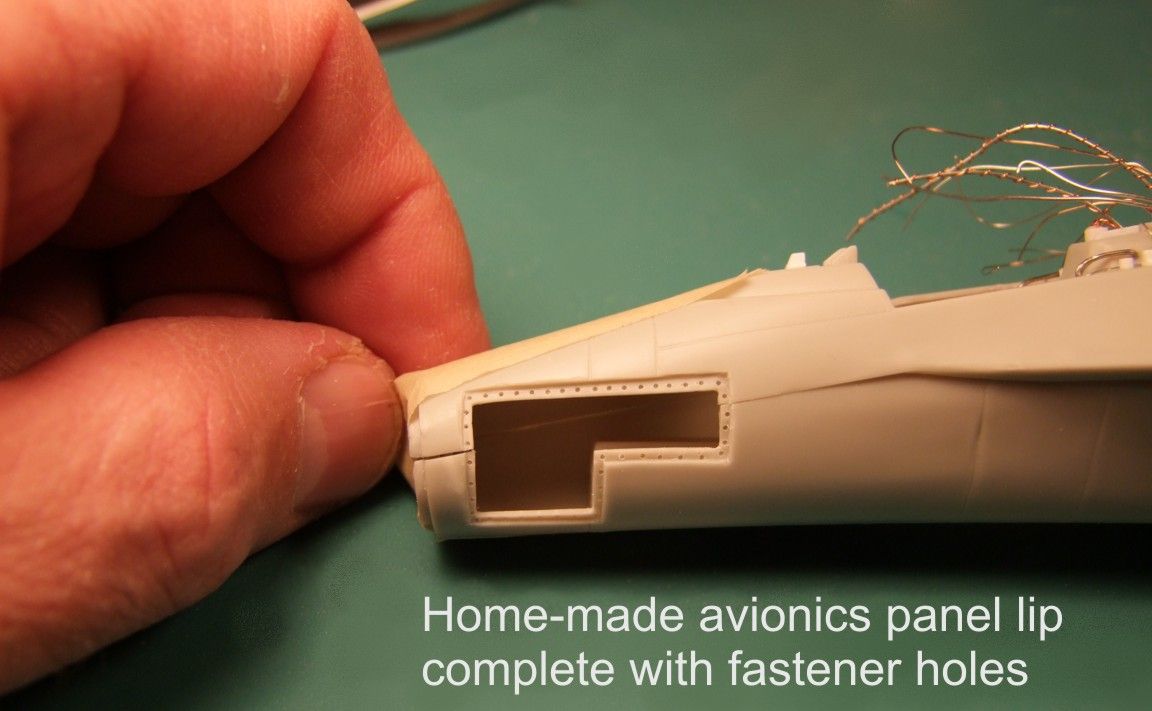

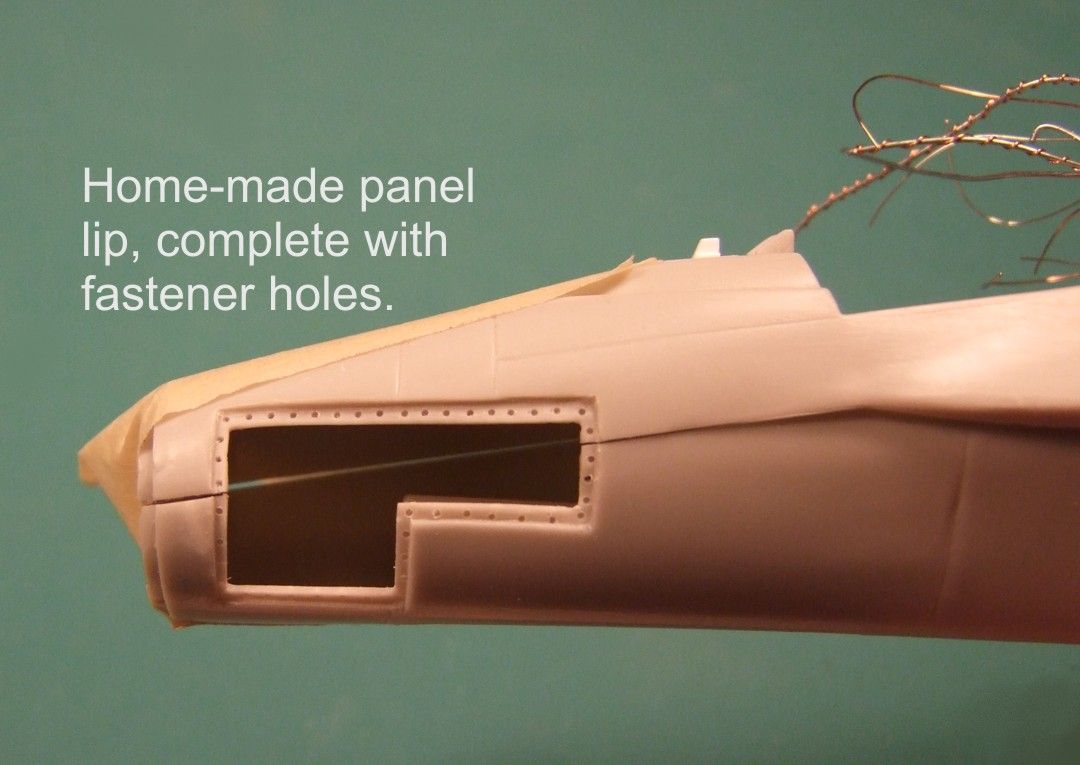

After drilling x number of tiny holes in the 1.5 mm wide engraved lip. I know it's far from factory-perfect CAD-modeling but it's not some purchased after-market, pre-painted stick-on: I made it with my own hands and I think this should look pretty convincing once painted up and it has a panel-door hanging from the edge.

The Gronk Hand (TM) for scale reference:

GTX · January 09, 2011, 10:11:58 PM

srkirad · January 10, 2011, 02:03:59 AM

Well John, this is quite a surprise New Year's gift from you for all of us on WHIFmodellers!

I'm amazed with level of details you've applied to this cockpit.. and almost all of it scratchbuilt!

I like front cut-out area for avionics.. doing great job...

The only thing that looks a bit oversized on this project are vertical tails... maybe if they were a bit smaller (or less tall)... don't know why but they add some strange "weight" on rear part of plane...

Anyway, I await for new photos... this is true masterpiece of modelling surgery!

Just keep going!

Cheers and Happy New Year

Srdjan

pedrospe · January 10, 2011, 02:06:13 AM

hi john, it is amazing the detail of your projects, i wish i had the ability to do the same on my own models. good work.

best regards

Pedro

NARSES2 · January 10, 2011, 03:17:25 AM

kitnut617 · January 10, 2011, 06:40:43 AM

Quote from: John Howling Mouse on January 09, 2011, 12:27:57 PM

That's some serious form of fungi you have there Barry

must be from all that snow you've been getting up there --- leave it alone for a few hours and look what happens ---

John Howling Mouse · January 10, 2011, 04:38:19 PM

Quote from: srkirad on January 10, 2011, 02:03:59 AM

The only thing that looks a bit oversized on this project are vertical tails... maybe if they were a bit smaller (or less tall)... don't know why but they add some strange "weight" on rear part of plane...

Cheers and Happy New Year
Srdjan

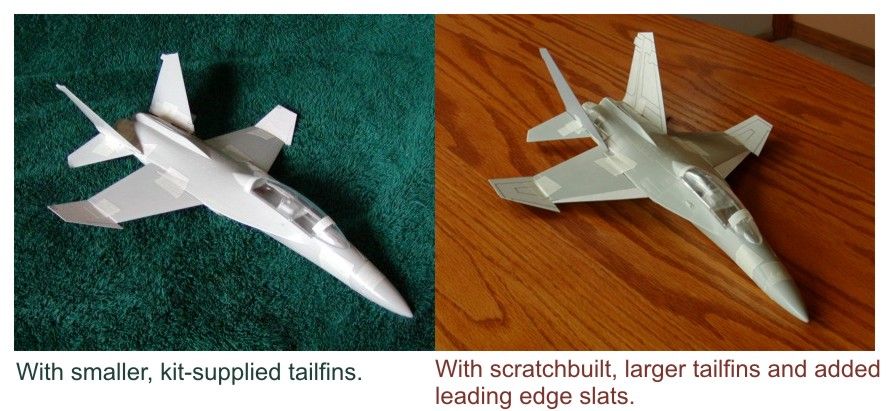

It's interesting that you say the tailfins seem oversized. Originally, I planned to simply use two of the regular kit tails but I kept thinking the aft end looked "too light" so I opted to scratchbuild bigger fins. See comparison below. I *really* wish I simply like them better with the kit-supplied tailfins...would be so many hours less work! I think I should make at least one version in the regular fins. After all, real a/c often have multiple variants, right?
