AX-1 and AX-2: Spanish paper projects during 80s

Started by ysi_maniac, June 28, 2011, 11:30:17 AM

Previous topic - Next topic

ysi_maniac

This is all the information I have:
AX-1


AX-2



BTW: these projects were mentioned in this thread before:
http://www.whatifmodelers.com/index.php/topic,26474.0.html
Will die without understanding this world.

ysi_maniac

I will use this old drawing for reference for AX-2
Will die without understanding this world.

ysi_maniac

Will die without understanding this world.

Mr.Creak

What if... I had a brain?

Hobbes

Interesting stuff.

Can't you use a Gripen kit for the AX-2?

ysi_maniac

^^^^
Difficult:

- Air intakes are completely different and in different position
- Nose section in Gripen is not a circle but a rounded rectangle

In addition:
- Look at main wing leading edge root and canard trailing edge root; there is a gap between them. This, IMO, means that sweep angle of main wing is less than 45 degrees. So I am considering the wings of a F-16.

BTW, when I said to use that old drawing 'for reference', I meant 'to see relative positions' and to copy tail fin.

More pics soon :thumbsup:
Will die without understanding this world.

ysi_maniac

Quote from: Mr.Creak on June 28, 2011, 11:48:53 AM
http://forum.keypublishing.com/showthread.php?p=764673
http://www.whatifmodelers.com/index.php?topic=26474.0

There doesn't seem to much at all about it. Even my copy of Jane's just says "This project has been cancelled".

In that first link, a non-afterburner EJ-200 is mentioned. How would the nozzle look like?
- without feathers?
- a cut cone? a cylinder?
- 2 concentric cylinders?

Your opinion, please.
Regards.
Will die without understanding this world.

Mr.Creak

Quote from: ysi_maniac on June 29, 2011, 06:54:33 PMIn that first link, a non-afterburner EJ-200 is mentioned. How would the nozzle look like?
- without feathers?
- a cut cone? a cylinder?
- 2 concentric cylinders?
Good question!  ;D
Are these any help?
http://www.iad-design.de/postprod/ej/photos/img/1h.jpg
(from http://www.eurojet.de/en/index.php?page=image_gallery.html)
This one might give some clue:
http://www.eurojet.de/en/
(click on "Technical Features" for a good view of how much is afterburner).
And http://www.rolls-royce.com/Images/EJ200_tcm92-6698.pdf might help, as, possibly will
http://typhoon.starstreak.net/Eurofighter/engines.html
What if... I had a brain?


Brian da Basher

I'm looking forward to seeing more, Carlos! Your work never ceases to amaze me!
:thumbsup: :thumbsup:
Brian da Basher

ysi_maniac

#10
Thanks for your nice words!

Some updates

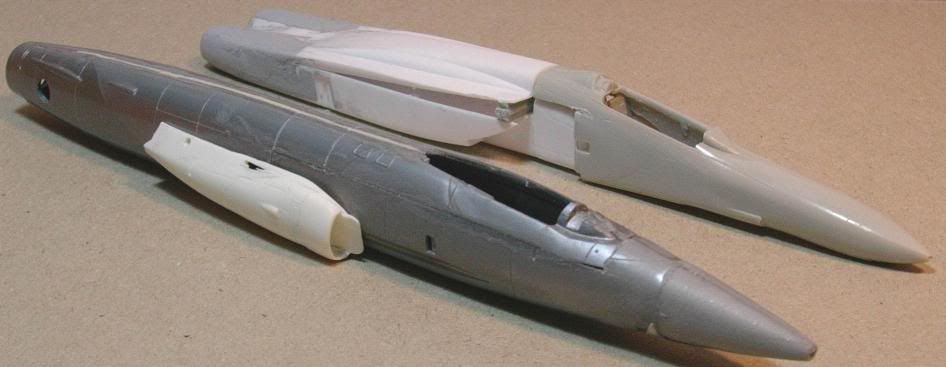

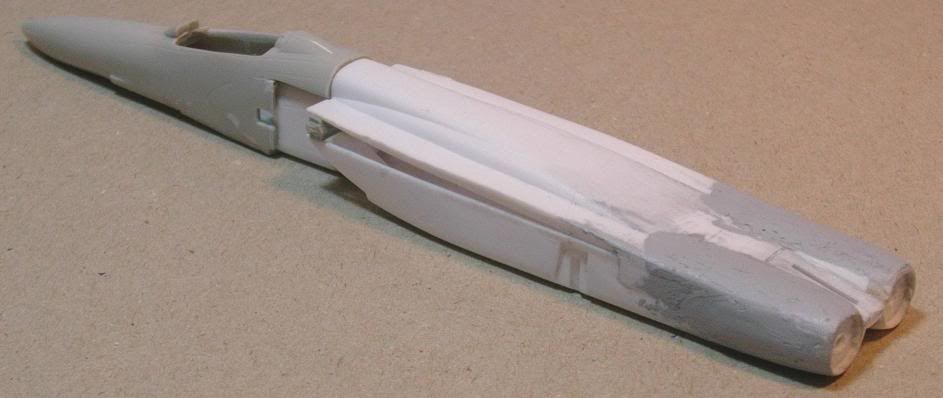

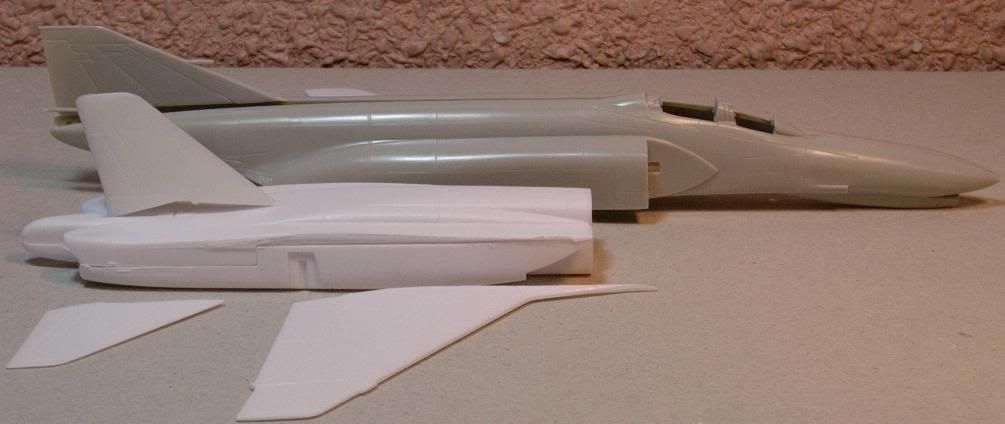

Front and aft parts of AX-1 fuselage are not glued yet

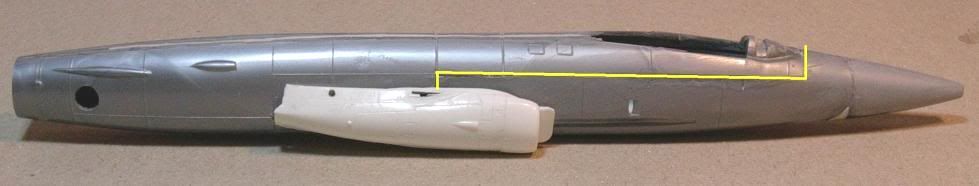

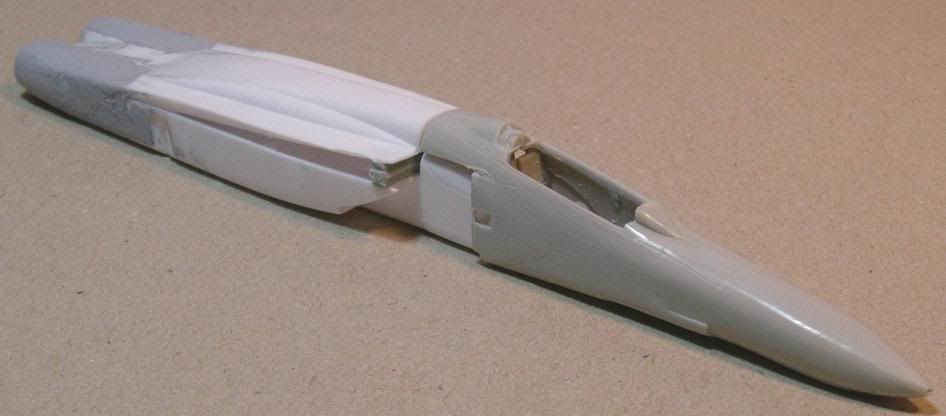

AX-2 fuselage is done with an old MiG-21. It was shortened and in the same operation cockpit was moved forward, cutting by the yellow line. Aferwards, air intakes were added.


Will die without understanding this world.

ChernayaAkula

Nice work so far! :thumbsup:

What kits are you using?

Looking at what you did to the Fishbed fuselage, I seriously think you should build a variant of a Fishbed with intakes like that as an operational Soviet machine. :thumbsup: Big radar in the nose and some huge, early radar-guided AAMs.
Cheers,
Moritz


Must, then, my projects bend to the iron yoke of a mechanical system? Is my soaring spirit to be chained down to the snail's pace of matter?

GTX

All hail the God of Frustration!!!

ysi_maniac

Will die without understanding this world.

ysi_maniac

Quote from: ChernayaAkula on July 01, 2011, 10:02:52 AM
Nice work so far! :thumbsup:

Thanks!

Quote from: ChernayaAkula on July 01, 2011, 10:02:52 AM
What kits are you using?

AX-1
1/144 Arii Vigilante
1/100 Tamiya Phantom

AX-2
1/72 Unidentified manufacturer (same old mould than Academy or Hasegawa) MiG-21F
1/100 Tamiya Intruder (air intakes)

Final result will be 1/72, I think ;D

Quote from: ChernayaAkula on July 01, 2011, 10:02:52 AM
Looking at what you did to the Fishbed fuselage, I seriously think you should build a variant of a Fishbed with intakes like that as an operational Soviet machine. :thumbsup: Big radar in the nose and some huge, early radar-guided AAMs.

Great idea for a next project
Will die without understanding this world.
