Panzer IV / M113 kitbash

[mkhulu]

Little bit of progress today regarding the engine deck. Might have to add some kind of armoured fuel caps - to be found in the Academy KIFV box.

[mkhulu]

Milliput did not cure and hardened after leaving it overnight

temp was the same , so I am guessing :

1 - Milliput has gone off (Stored it in a dark , cool place within an airtight container ) or

2 - I mixed it in the wrong ratios

2nd setback , but hey I always see the glass as half full

[rickshaw]

The ratios are important.  I've used Milliput that was 20 years old and it still worked!

[pyro-manic]

Looking good, mkhulu! Quite a mean-looking machine.

[mkhulu]

Ripped off the Panzer IV mantlet and scratch built a new one.

Only thing now is that I need to drill two holes to attach the Pak 40 barrel to the new mantlet.

Somewhere , in the depths of my memories , I seem to recall bending moments from my 2 semesters of statics in my 1st year at uni

The new mantlet will also provide a better mounting place for the paraxial MG

A wee bit of PSR at the rear - and then to start the exhausts . Pics to follow soon

[mkhulu]

Pics showing the new mantlet - still to PSR today

[NARSES2]

I'm getting ever more impressed with this build  but why is it now screaming Flakpanzer Coelian at me ?

[coolpop6307]

I think it looks nice

[mkhulu]

*tumbleweed rolls by*

ta gents , I appreciate it !

Just been swamped lately - I guess I could apply project management principles to scale modelling but ......

then I would have to mix work with my hobby -(insert a not cool , sick smiley!)

Have some public holidays coming up , time for finishing this build

*cricket chirps*

[NARSES2]

Looking forward to you getting this finished

[mkhulu]

concentrating all available time on the turret - hull basically needs to be PSR'ed and the exhausts...

right , some piccies. Gap where the telescopic gun sight was , is to be filled. Seeing that the gunner sits on the RH of the TC , the telescopic gun sight was initially on the wrong side







Hoping to do some serious work on this bash this coming long weekend ...

[coolpop6307]

Coming along alot better than my steamtank right now, Keep up the good

[mkhulu]

Some progress piccies regarding the turret - I am going to rebuild the smoke grenade launchers tonight.

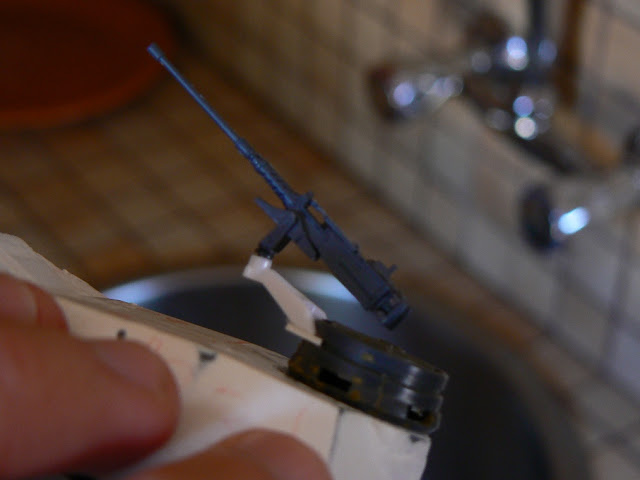

12.7mm MG is from the Academy set.

You will see that I lengthened the barrel by adding a bore evacuator - waiting for the Milliput to dry and then to PSR







^ co-ax MG is brass tubing

[mkhulu]

whiffed the turret - made it a bit longer to accommodate the longer gun barrel. Hole is for the TC cupola.






Waiting for Milliput to dry and then PSR

[mkhulu]

Noticed that the LH turret extension was WAY skew   , so I removed it and reinserted a new one. To be puttied tomorrow. Barrel also to be puttied and PSR'ed tomorrow.

The mods to correct this error :



Close-up of the surgery I did :



I don't mind making mistakes - all part and parcel of learning
