Whiffed Crosti boilered locomotive

[PR19_Kit]

The trailing truck for the 2-8-2 has arrived at vast expense, £5.90, off ebay.

Someone on my model railway forum has pointed out that I could add the Caproti valve gear, as pictured on the Crosti boilered Class 5 4-6-0, by the use of some spare Hornby bits as they sell a Class 8 'Duke of Gloucester' Pacific that has Caproti gear. I'll be looking into the fiscal implications of that.

The Barnes book has also given me another Whiffed loco idea and I'm already on the case for doing that one too, but I'll await the finding of a suitable chassis before I post any pics etc.

[chrisonord]

I take it the wings will fold along the sides of the boiler for when it goes through tunnels and bridges?

Just for once this WON'T have longer wings, or any at all really.

What...? Really???

[PR19_Kit]

Afraid so, I'm fresh out of steam locomotive wings at the moment.

[chrisonord]

Afraid so, I'm fresh out of steam locomotive wings at the moment.

Haha

[PR19_Kit]

The Caproti valve gear and cylinders have arrived, thanks to a good seller on eBay, but there's a problem of course. The 'Duke of Gloucester' is a Pacific with larger drivers so the connecting rods won't fit my eight coupled Whiff. I see some 'engineering' in prospect.....

I've got most of the bits together for the other Whiff I like in the Barnes book. That's a 4-6-4 Baltic tank engine from the ever weird pen of Mr. Bullied, Chief Engineer of the Southern Railway. Here's the pic in the book.

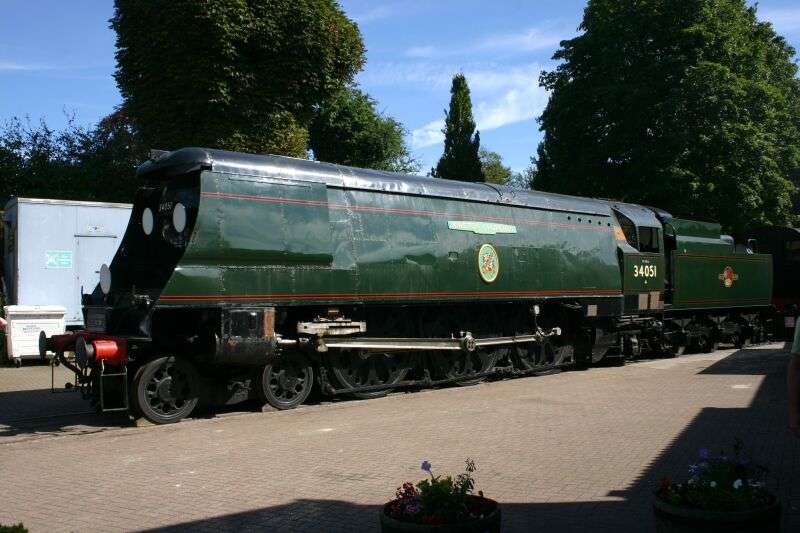

To those who know UK locos it may look like a 'Merchant Navy' Pacific, but it has no tender and it has side tanks, madness. Here's a 'Battle of Britain' loco that's similar to the MNs.

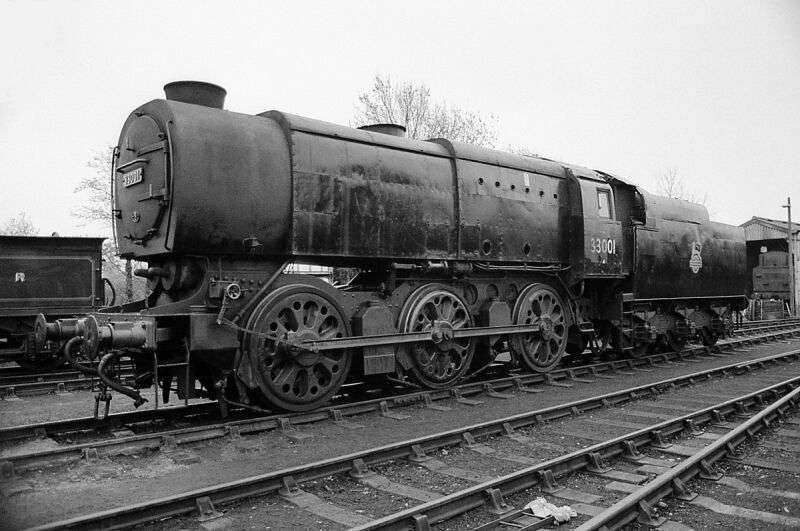

Mr Bullied in his wisdom used smaller driving wheels than the Pacifics on the Baltic tank proposal, but they are the same size as those on the totally bizarre Q1 loco. See what I mean about bizarre here.

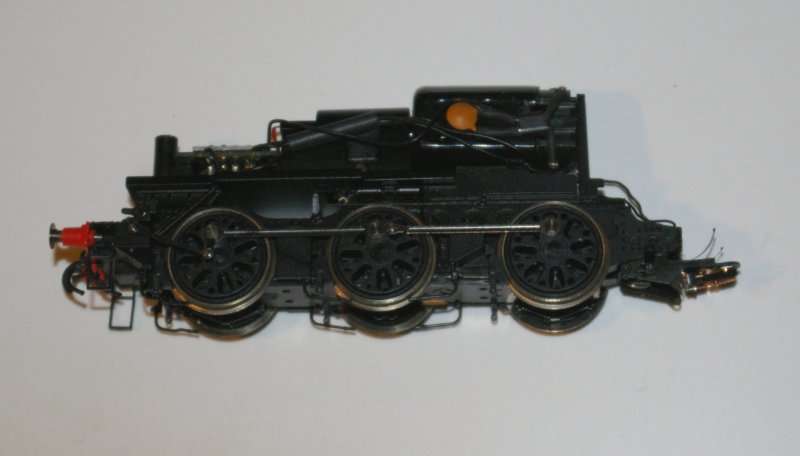

Luckily Hornby do a quite good Q1 and I got hold of a Q1 chassis at a reasonable price.

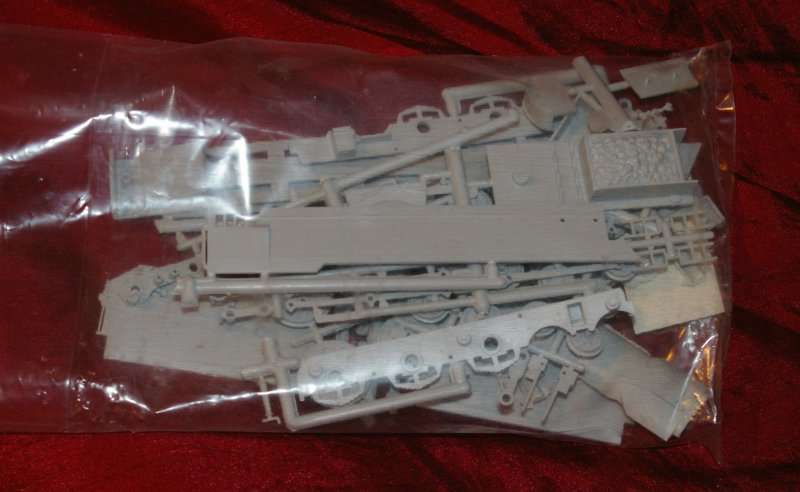

The body shell will be whiffed from a Dapol (ex-Airfix) 'Battle of Britain' loco kit as below.

[Steel Penguin]

looking interesting Kit

[loupgarou]

Good to see something railway-related in whifworld!
Will follow with interest.

[NARSES2]

I can see what you mean about bizarre

Talking of steam loco's. When I passed the National Railway Museum yesterday they had one of the larger ones outside getting steam up. Lovely sight, apart from the belch of dark grey smoke that erupted out of the funnel

[PR19_Kit]

I spent some time cutting and pasting various scans and drawings together to see how the Baltic tank would look, and while this is in the later BR colour scheme it does give the look of the beast I think. All the running gear is scanned from the real parts I'm using for the build.

Amazingly the boiler of the tank engine comes out exactly the same length as the 'Battle of Britain' class loco body I'm going to use too.

[PR19_Kit]

The colour scheme above would have been what the loco looked like in the 50s, post the formation of British Railways in 1947. I rather liked the look of how it might have looked under the Southern Railways, as drawn by Mr. Barnes in the book, so I tried it out with the older scheme.

Much more eye catching to my mind, and the yellow stripes tend to make it look longer and less bulky.

[NARSES2]

Much more eye catching to my mind, and the yellow stripes tend to make it look longer and less bulky.

Very much so

[PR19_Kit]

I just remembered that it actually IS a bit longer. I lengthened the coal bunker, the bit behind the cab, a bit to match the book's drawing, and moved the six driving wheels back somewhat too.

[Gondor]

I just remembered that it actually IS a bit longer. I lengthened the coal bunker, the bit behind the cab, a bit to match the book's drawing, and moved the six driving wheels back somewhat too.

Looks good though

Gondor

[PR19_Kit]

More intense Photoshop work (actually PaintShoPro......) to see how the other Whiff project would look.

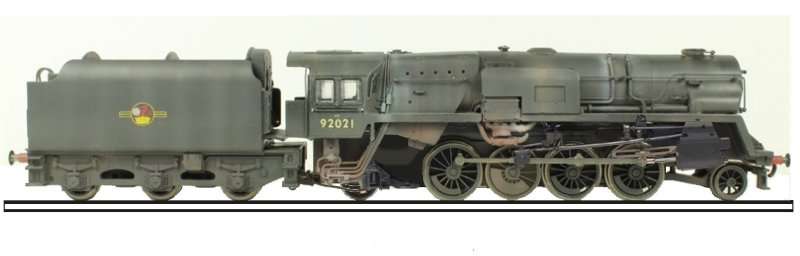

This is the real world BR Class 9F as a 2-10-0, and with the Crosti boiler, which is why it has a chimney half way down the boiler.




This is my whiffed version as a 2-8-2 and with the advanced Caprotti valve gear.




And this is as the 2nd one but with added smoke defletctors, like the non-Crosti 9Fs.
It's doubtful if the deflectors would do anything practical as the exhaust exits about 15 ft behind them, but I quite like the look of them.

What does the panel think, deflectors or no deflectors?

[Rheged]

Personally, I prefer WITH deflectors.  Properly shaped, they may set up an updraught that prevents most of the smoke going into the fireman's lungs.
