Santa Fe GG-1

Started by loupgarou, February 01, 2024, 09:11:25 AM

Previous topic - Next topic

loupgarou

This could go in the Sixties GB, but I cannot wait one month.  ;D
We have already discussed about GG-1 painted for railroads that never had it.

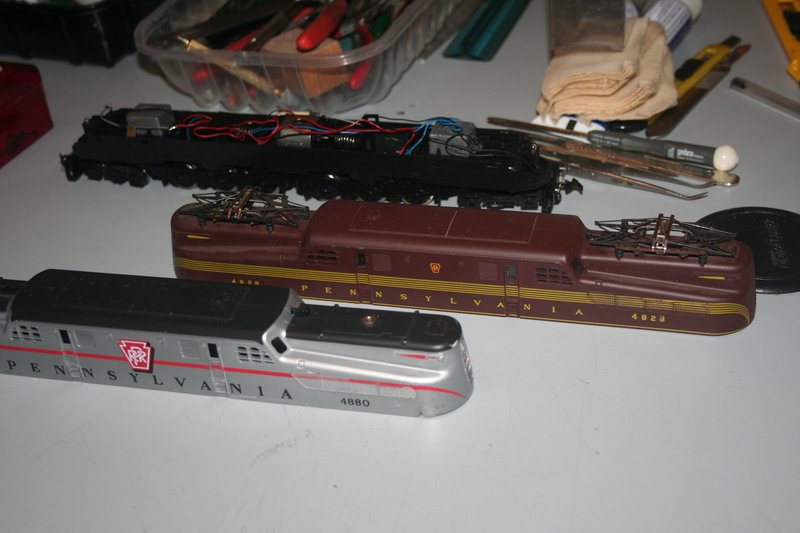

Now I find myself with 2 Mehano GG-1, one missing wheels and front trucks, the other with a cracked body and damaged frame (both very cheap, of course).

Yeeech! The gearboxes I had to open to get wheels and gears were completely filled with old grease  :banghead: , needed to clean everything in alcohol.
So I have put together a complete working frame from the 2 incomplete/damaged. AND have 2 bodies (the crack on one has been re-glued).

If I can manage to prepare templates for painting the Warbonnet, and find decals for the thin separation stripes (with a relatively close shape), I'd love to do a Santa Fe one.
AND, as a pet railroad for me is the Ferrovie Nord Milano, known for having a light track and railbed, what would be more appropriate than a GG-1?  ;D
Problem now is removing the paint: a 20 hours bath in a drain cleaner  has done absolutely nothing, Must find something else.
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

PR19_Kit

Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

kerick

I've noticed with oven cleaner you have to check the label to see if it contains sodium hydroxide, also known as lye, to get something that works. I haven't used drain cleaner before so I'm not sure if companies have stopped using it. I suggest checking the label to see what the active ingredients might be.
Santa Fe would look cool.
" Somewhere, between half true, and completely crazy, is a rainbow of nice colours "
Tophe the Wise

loupgarou

Kit: I have had bad experiences with brake fluid fragilizing the plastic in the remote past, so I am not using it anymore.
Kerick: yes, of course, I check that it contains sodium hydroxide, and if possible, the strength of it.

Checking the silver body under a good light, I have seen that in a corner the paint had began to peel, so I put the loco back in the bath.
I am going away for 2 days, will check when I am back if it has worked.
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

sandiego89

Would a coat of rattle can primer and new paint be too thick?
Dave "Sandiego89"
Chesapeake, Virginia, USA

loupgarou

Quote from: sandiego89 on February 01, 2024, 03:22:29 PMWould a coat of rattle can primer and new paint be too thick?

I don't trust rattle cans. I will do an airbrush undercoat, but would prefer to remove at least the markings.
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

loupgarou

After a week in a drain unplugger did nothing, I sanded away the markings with a VERY fine abrasive paper, and started the paint job.
Bad masking and proportions, I wasn't satisfied, so put the body in alcohol. I use Vallejo acrilics, so alcohol is good enogh for paint removing.
And, SURPRISE, it removed also the original paint. So, back to pants with a nice and clean body.
Redid the shape of the separation line with Inkscape, and used it to trace a mask on adhesive foil. Painted chrome, masked, did the red...


I am AGAIN not happy with the result: owing to the GG-1 loong noses, the chrome section is too short, and, checking photos, verified that the separation does NOT run through doors etc (apart from giving masking issues).
So, back to an alcohol bath, and to Inkscape to modify the decal shape.....
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

PR19_Kit

But it does have a 'Santa Fe' look about that scheme nonetheless.  :thumbsup:
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit

loupgarou

Now it's white again.  ;D
Paint dissolved quite instantly, I will start again with primer this afternoon...
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

Dizzyfugu

Some design options?





I think the second one is a good compromise for the long noses?

loupgarou

Yes, I was considering he second option, but a silver cab doesn't seem natural on the ATSF. Also, the silver color in front of the windscreen would cause reflections that damage the driver's vision.
Curiosity: the first one seems a "real" model, but shortened and the trucks are very crude. I wonder what it is.
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

Dizzyfugu

I think it is a O-scale tin toy, but of recent production.

loupgarou

THIRD iteration of prime/paint chrome/mask/paint red. It's the final one! Decals designed with Inkscape (used a paper print as mask), now the enxt spet is managing to print and coat a decal sheet that won't dissolve. Doing a test with an HEAVY coat o f Liquid Decal.
It's the problem that's blocking me also on 2 Shelf Queen build...
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

loupgarou

I had not forgotten my builds, but ave been stymied by decal problems for a - long - while-  :banghead:
Apart from disintegrating decals, had also found hat some colours are not completely opaque, had to reprint part of he decals on white paper, qith the new problem of cutting borders precisely etc.
Now I am - slwly - advancing on various projects.
The Santa Fe GG-1 is being decalled, only one side or the moment, the result is not too good, will have to do some retouching:
Owing to the current financial difficulties, the light at the end of the tunnel will be turned off until further notice.

PR19_Kit

Looking very promising.  :thumbsup:
Kit's Rule 1 ) Any aircraft can be improved by fitting longer wings, and/or a longer fuselage
Kit's Rule 2) The backstory can always be changed to suit the model

...and I'm not a closeted 'Take That' fan, I'm a REAL fan! :)

Regards
Kit
