Me-262 and derivatives

[Mossie]

Yeah, that looks good!

[GTX]

Or a V-Tail one,

Well there was a proposed single seat V-tail one:



I'll see about doing a two seat variant.

Regards,

Greg

[GTX]

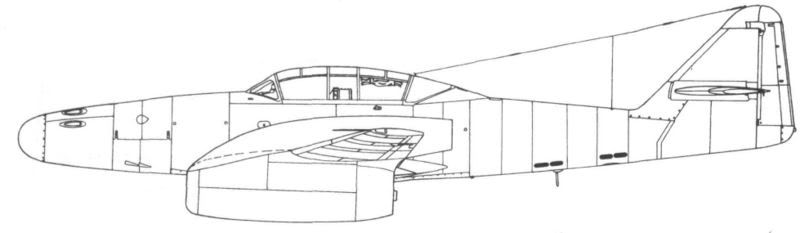

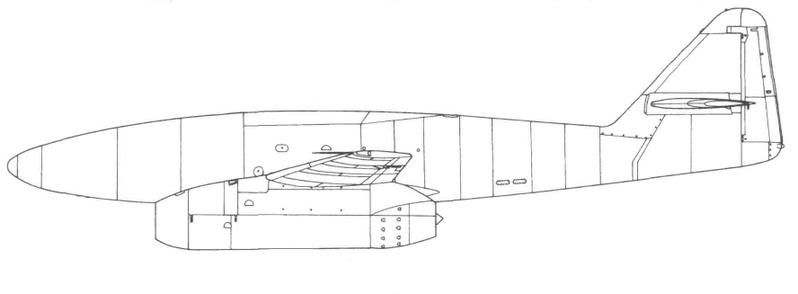

There were also some proposed variants with different engines:



Note - these last ones aren't my work.

Regards,

Greg

[jcf]

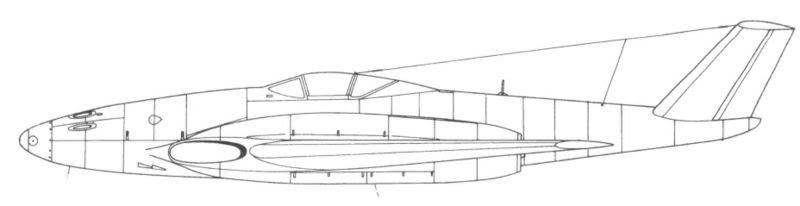

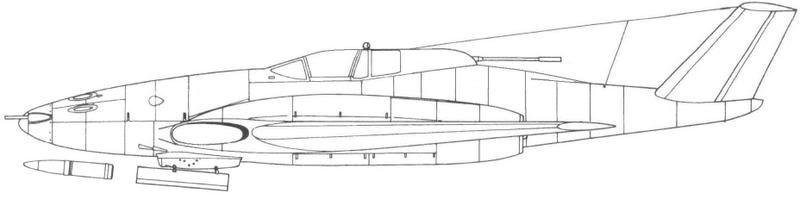

Single engine variant using the same general layout?

How's this - it's got the more swept wing of the HGIII variant:



Regards,

Greg

Looks like it got rear-ended by a Grumman.

Jumo's projected 109-004H engine of 1,800 kp (3,970lb) static thrust could be a choice for the single engined design, it was to be the same diameter as the 004B and only slightly longer, 4 meters versus 3.86 for the 004B.

Jon

[Mossie]

Found a Zwilling.



The modeler calls it an Me-462, he's done a few whiffs.  Web page here:
http://home.wanadoo.nl/thraex/wings/axis.html

[GTX]

Looks like it got rear-ended by a Grumman.

There may have been a liaison...

Regards,

Greg

[GTX]

FSW as a fighter follow on from the Ju-287?

How's this (it's a bit crude I think) - even has a Ju-287 in Mistel form:



Regards,

Greg

[HOG]

Hoyhoy`al

First off
NONEof these are mine.
When I troll the web I find stuff - I collect stuff. It all goes into a file as inspiration for projects or as stuff I just like. The first model I have no recollection of where it came from but the second set of pic`s I remember came from the Fine Scale Modellerforum


A  Zwilling. Liked the Ar234 engine pods





A Zwilling Mistel. Can`t really see the need for two explosive fuselages, perhaps one is a tanker, BUT THIS IS IN 1/144!

[GTX]

Or a V-Tail one, with the second pilot being a gunner looking back, like on those old bombers?

Well this is something like that - it has a V-tail and a gunner looking back.  Maybe after a few years, the Luftwaffe wanted a fast ground attack aircraft (hence the HGIII basis), but with heavier armament (6 cannon in nose).  Maybe even the old WGr 21. rocket finds a use in the ground attack role?  Whatever, the reason, this is the result:



I think it looks a little like the Il-40/102 designs.

Regards,

Greg

[GTX]

Why not a maritime patrol one, with propelers, longer fuselage and mines and torpedoes under the wings?

No torps, I'm afraid, but still how is this?  I figure it's about the same era as the early P-2 Neptunes (hence the top turret).  There would also be a wing extension between the engines and fuselage.  BTW - the extreme nose is now perspex.



Regards,

Greg

[GTX]

drone conversion

Like this maybe?



Regards

Greg

[GTX]

Maybe a single engined variant with a V-tail:



Regards,

Greg

[GTX]

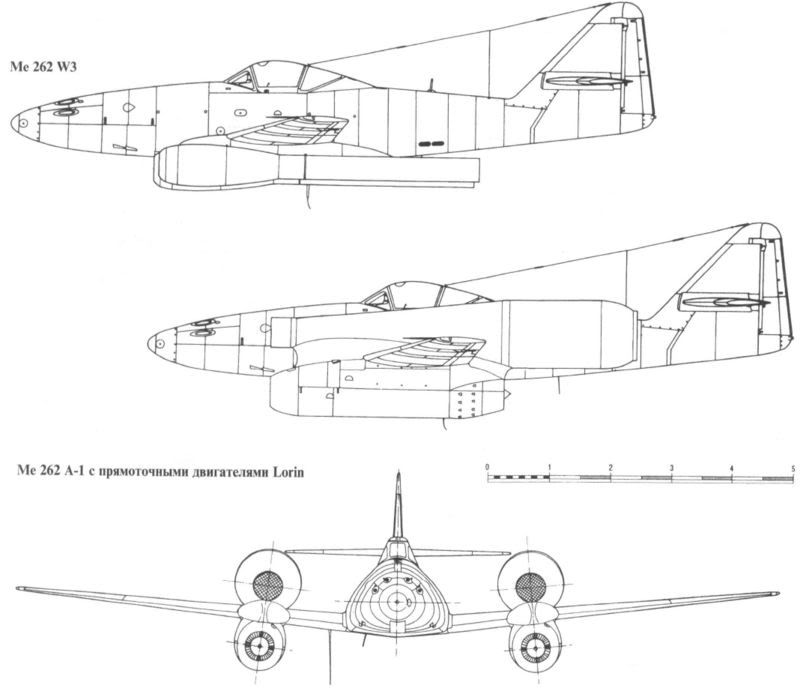

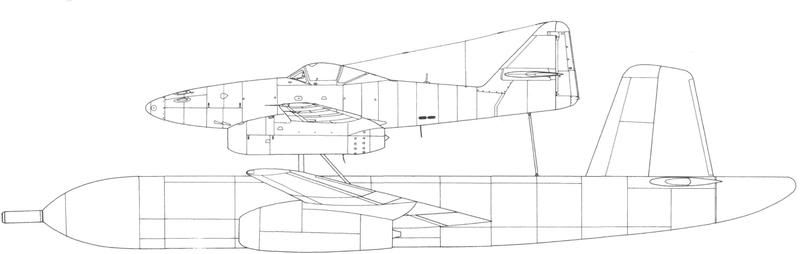

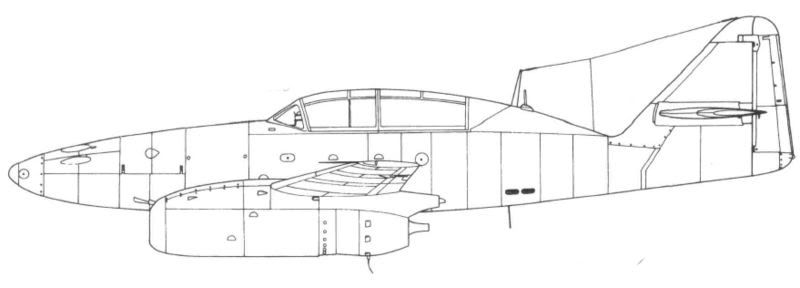

Some more proposals for different engined variants (I didn't do these):

BMW003 variant:



HeS 001A variant:



Regards,

Greg

[r16]

one from 2006 and I think it is unposted in this thread

http://www.whatifmodelers.com/index.php/topic,9071.0.html

[Arc3371]

The V-tail is very tasty
